Intel SR2600URLX User Manual

Rail Kit Installation Instructions
4 Basic Rail Kit Install Guide for Intel® Server Chassis
Install Outer Rail Slides to Rack Posts
1. Attach the outer rail slides to the rack posts using two #8-32 x 1/2 screws at the front
posts, and two #8-32 x 1/2 screws at the rear posts. See letter “A” in Figure 3.
Note: The rail flanges mount to the inside of each post.

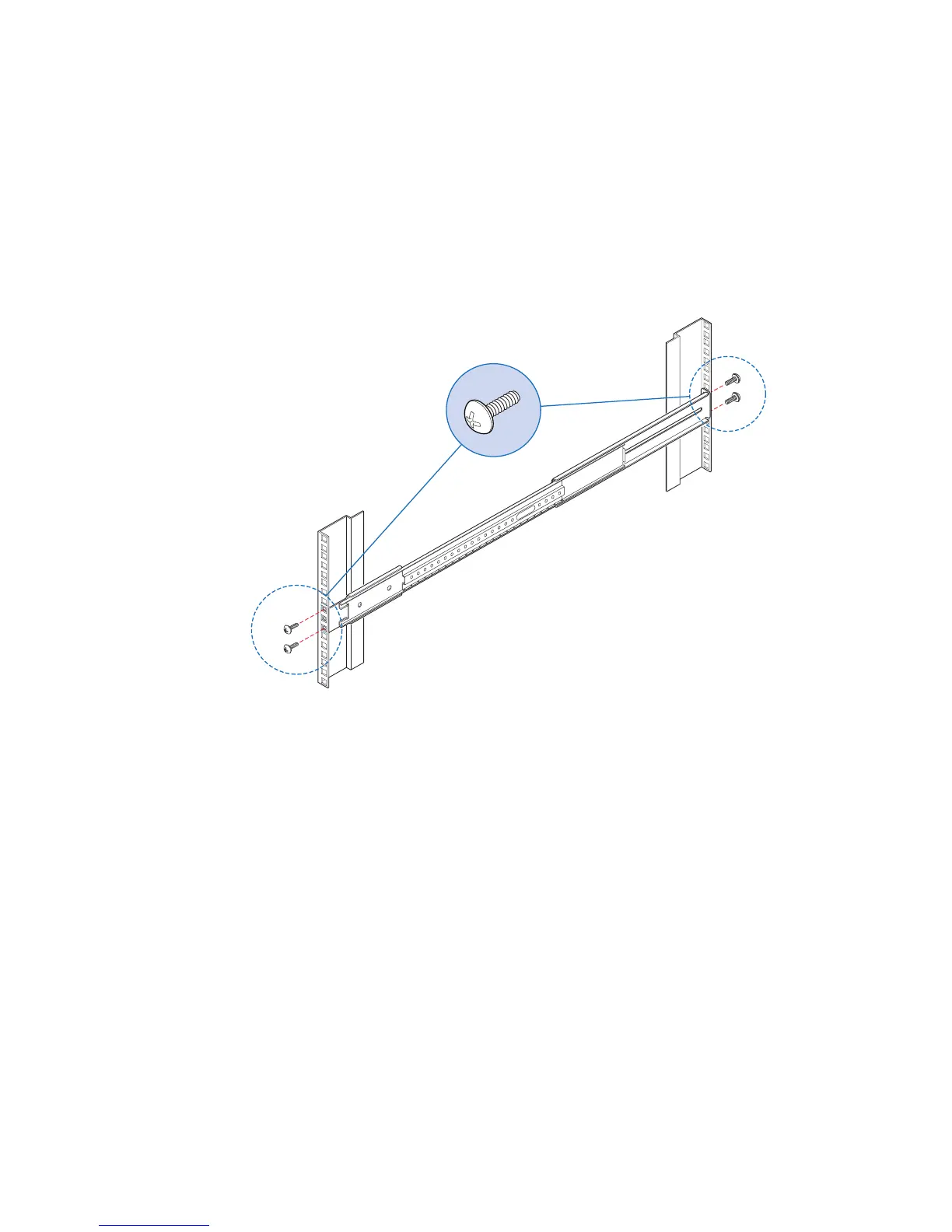

Figure 3. Installing the Outer Rail Slides to the Rack Posts
AF000628
Front of Rack
Rear of Rack

Intel SR2600URLX Specifications

General

Brand	Intel
Model	SR2600URLX
Category	Chassis
Language	English
