INTELECT LEGEND STIM USER MANUAL
15
Ch. Select controls the method for setting amplitude. The Both Channels mode changes intensity equally. The Channel 1
option changes ONLY channel one and the Channel 2 option ONLY changes channel two. This is helpful when you need
to balance the output between channels.

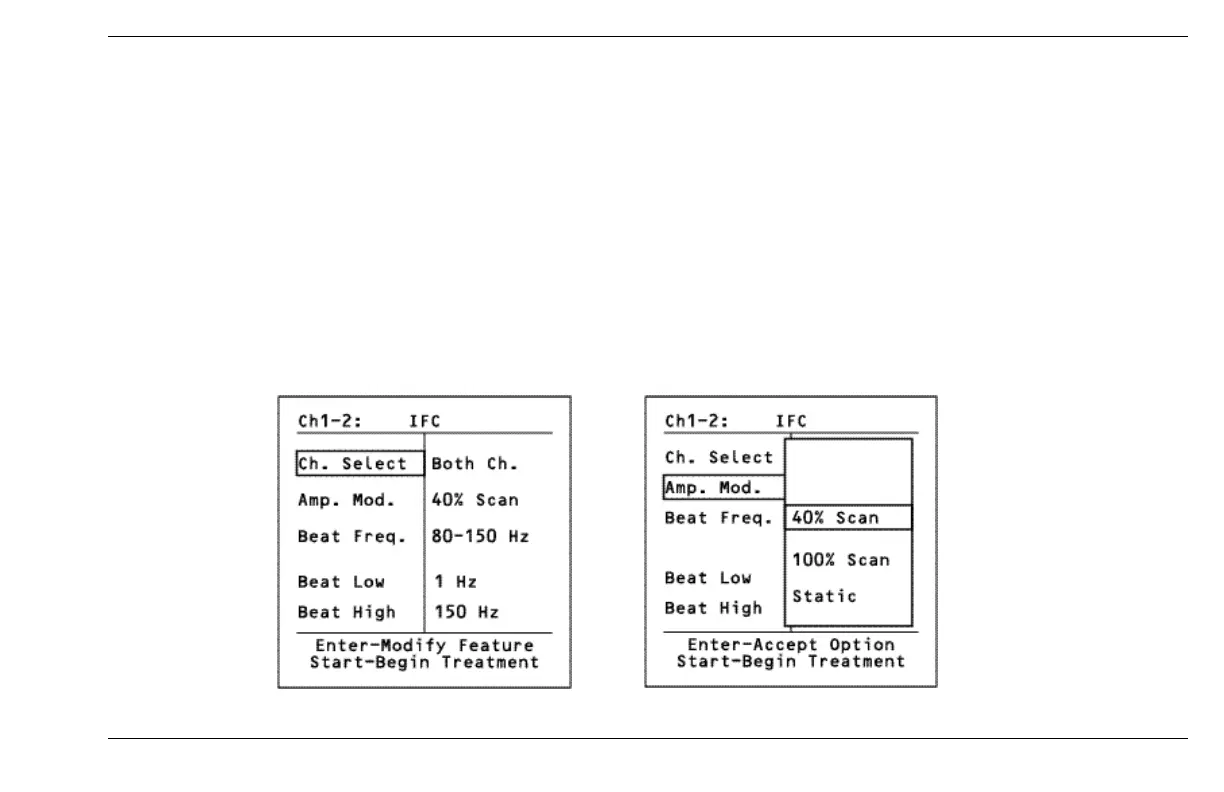

When you highlight Amplitude Modulation and press the
ENTER button, 3 options are displayed. They are 40% Scan (default),
100% Scan and Static (no scan).
Scan Percentage is the percentage of decrease from the maximum amplitude. Scan is amplitude modulation, expressed as
a percentage of the amplitude. The rhythmical varying of the amplitude of each channel produces the perceived
movement of the Interferential field.
Ch. Select Amplitude Modulation/Scan Percentage
