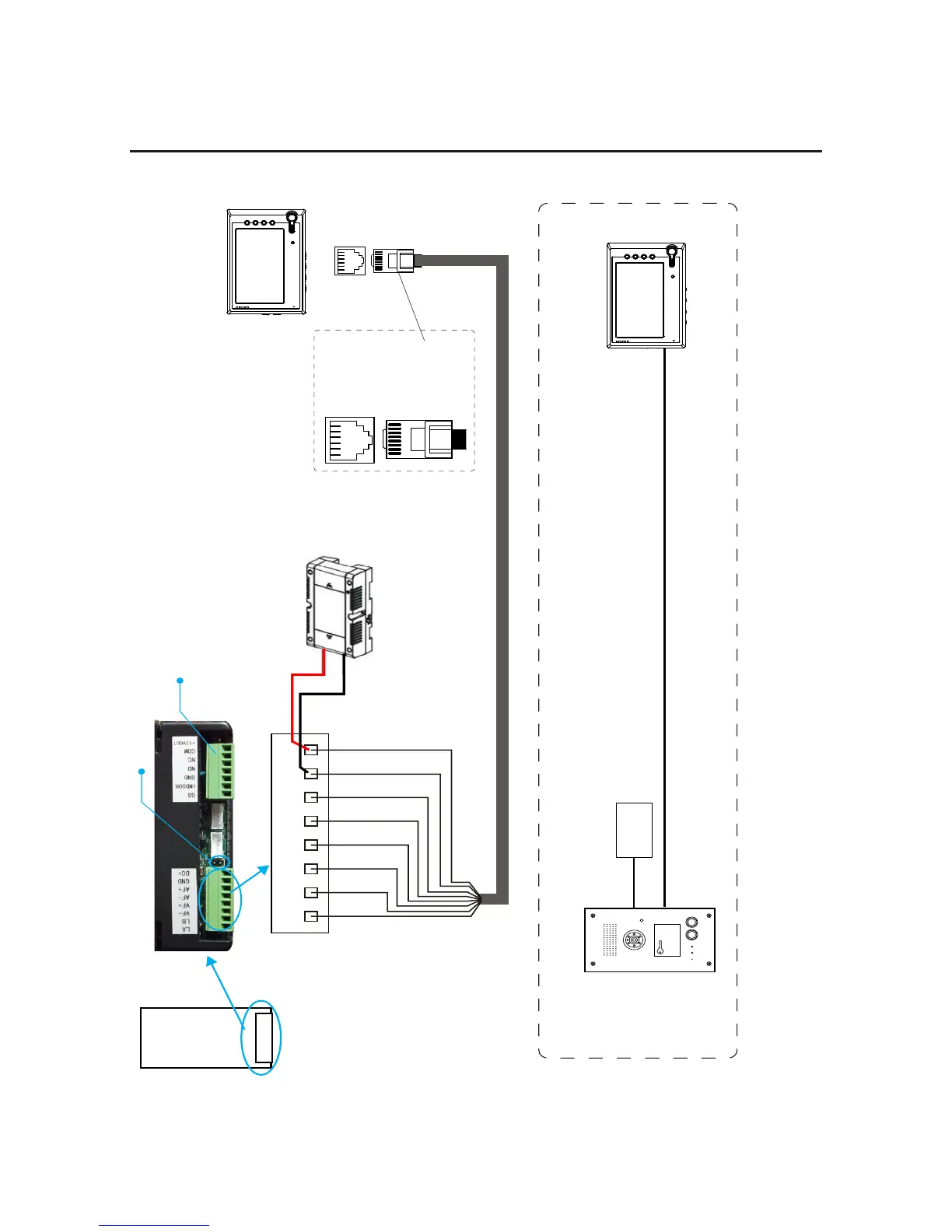

4.2 Doorbell B single monitor connection
Monitor
1 ~ 8
Brown
Brown/white
Blue
Blue/white
Green
Green/white
Orange
Orange/white
Note 1: Keep this jumper on for single monitor systems.
Note 2: This connector is for lock connection. See lock connection diagram.
LA LB VF- VF+ VF- AF+ GND DC+
10
SPEAK
NOW
DOOR
SERVICE
OPEN
CALL
Note 1
Note 2
12345678
8. Brown
7. Brown/white
6. Green
5. Blue/white
4. Blue
3. Green/white
2. Orange
1. Orange/white
12345678
Power supply
+
-
Power supply
Cat-5
Doorbell
Doorbell back view
Monitor
-7-
