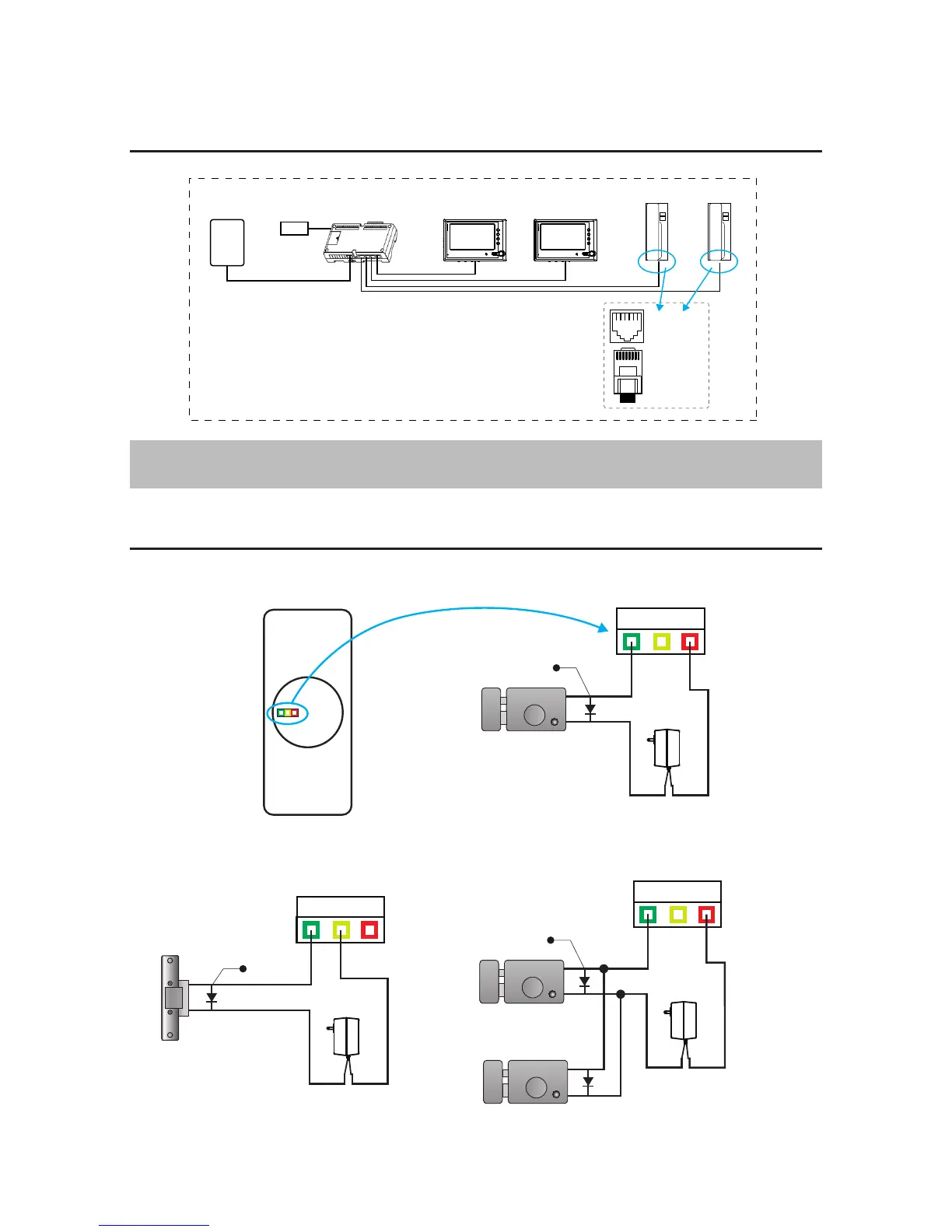

4.7 Audio phone connection

5.1 Doorbell A lock connection

5. Lock connections

NONCCOM

Note 1

Electric lock

Magnetic lock

Note 1: Reverse diode not used only for electric gate system.

Must be connected for all other locks.

Normal open connection

Normal open connection-2 locks

Normal closed connection

Note 1

Electric lock

Doorbell Model A

-12-

Doorbell

Distributor 4230

Power

Supply

1# Monitor

Audio phone Audio phone

2# Monitor

12345678

5. Blue/white

4. Green

12345678

Note: Connect 1 to 4th, 2 to 5th. No polarity
