10 // uzzi user Manual

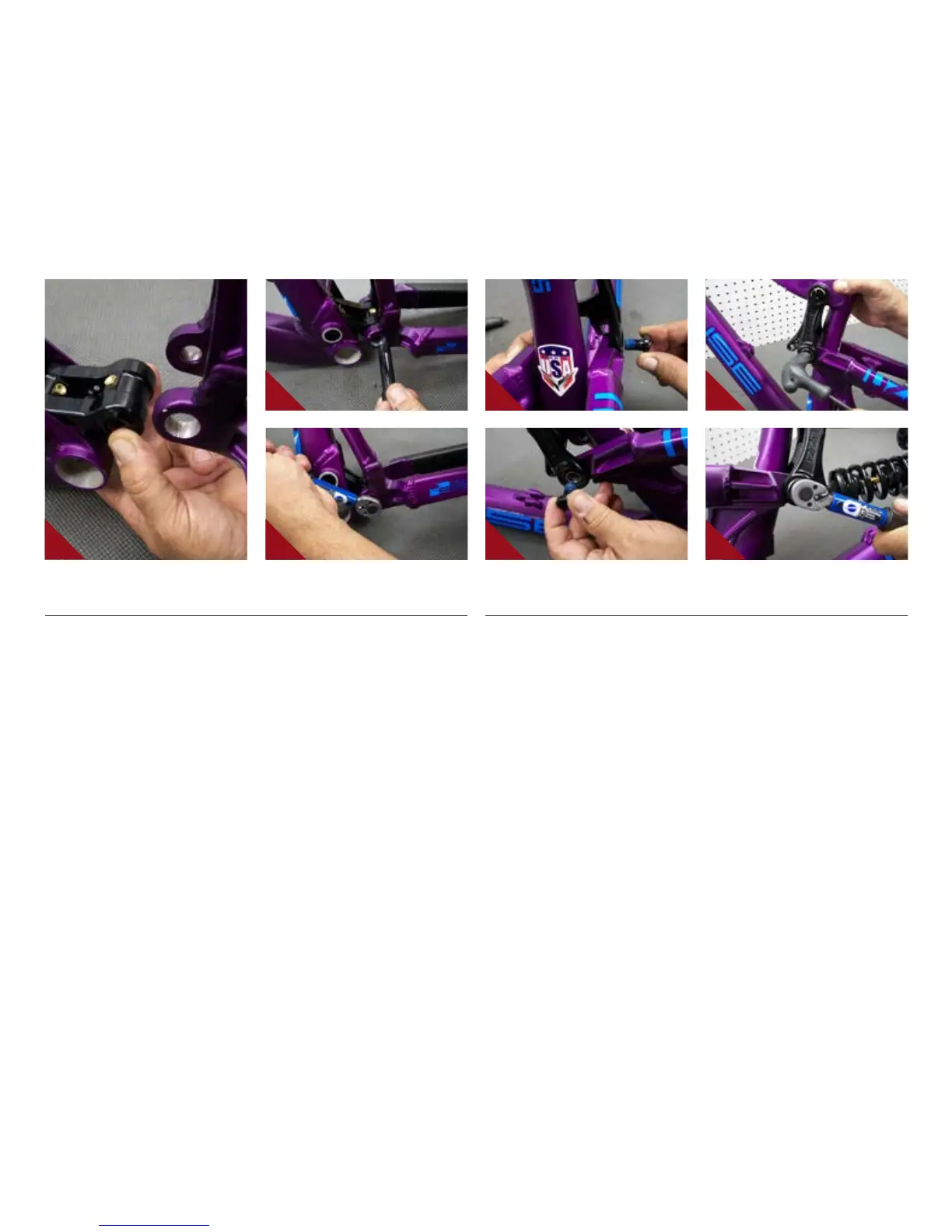

CONNECTING REAR TRIANGLE TO TOP LINK //
A Insert shoulder bolts (#130785)
through seatstay bearings. Hold lower
washer (#130784) against inside of
seatstay bearing (IMAGE #10) and match
to top link seatstay pivot location (IMAGE
#11 & 12).
B Use 5mm HEX wrench to tighten
shoulder bolts and tighten to 20 Nm /
175 in-lbs (IMAGE #13).
10 12
11 13
CONNECTING BOX LINK TO REAR TRIANGLE //
A Follow previous steps to connect rear triangle to box link (IMAGE #7, 8 & 9).
7
8
9
