INTENSE CYCLES // 1 1

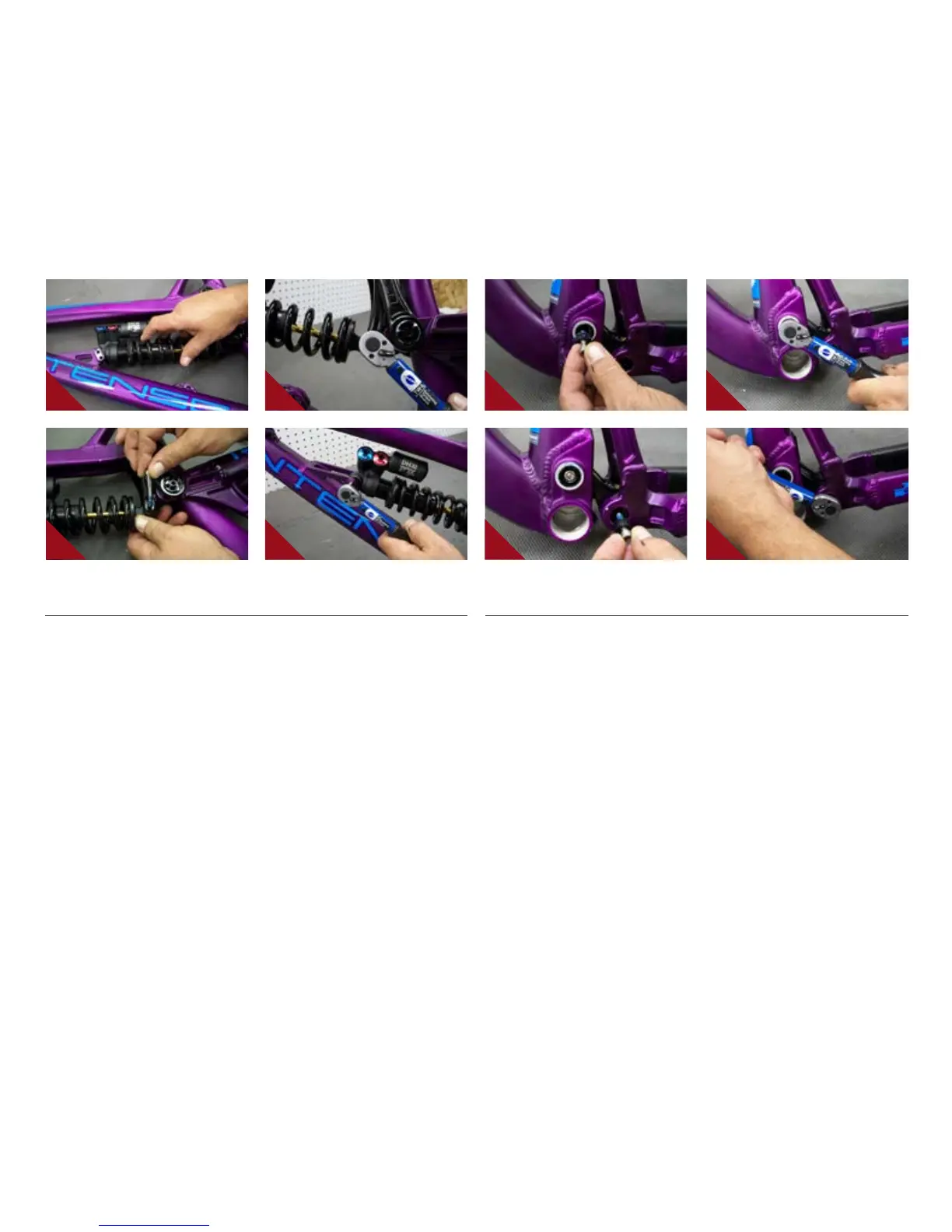

INSTALLING ADJUSTER CONES //
A Grease and insert adjuster cones
(#130777) into head of main pivot bolt
(#130791), insert 6 x 22mm bolt, lightly
greased, into the pivot bolt head (IMAGE
#18 & 19).
B Tighten 6 x 22mm bolt (410009) with
5mm HEX wrench, and torque to 14 Nm
/ 125 in-lbs (IMAGE #20 & 21).
INSTALLING REAR SHOCK //
A Holding rear shock with narrow end
forward and adjuster knobs oriented up,
insert front of shock into frame (IMAGE
#14). Install lightly greased 6 x 40mm
bolt, tighten snug.
B Raise opposite end of shock into the
top link and install lightly greased 6 x
35mm bolt (IMAGE #15).
C Tighten both M6 shock bolts to 7 Nm
/ 60 in-lbs (IMAGE #16 & 17).
14 16 18 20
15 17 19 21
