intensity IF COMBO DI4738 - Presentation

TENSPros
2. Presentation

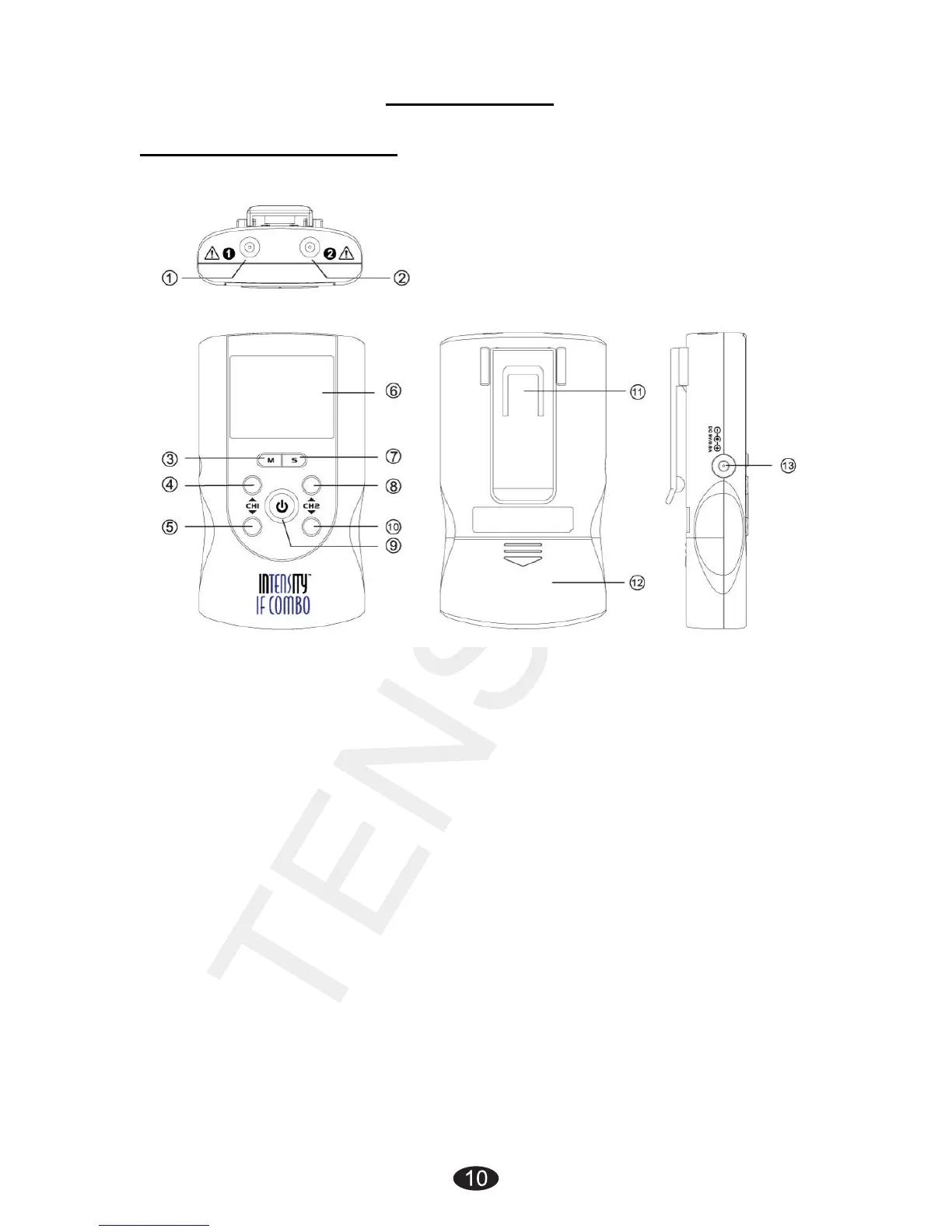

2.1 Front and Rear Panel
1) Output socket: electric signal output after connection of the cable
with adhesive electrodes channel 1.
2) Output socket: electric signal output after connection of the cable
with adhesive electrodes channel 2.
3) Therapeutic mode selection (M). Stop the treatment. Exit setting
mode to the user interface.
4) Increasing the output intensity of channel 1 [▲]. To set the
application program and the parameter of the waveform in the
setting state.
5) Decreasing the output intensity of channel 1 [▼]. To set the
application program and the parameter of the waveform in the
setting state. To unlock the current treatment program.
6) LCD display: Shows the operating state of the device.
7) Parameter Selection (S): press the button to enter setting state;
you can select the difference parameters in conjunction with [▲]
and [▼].
