Inter-m H-4200 User Manual

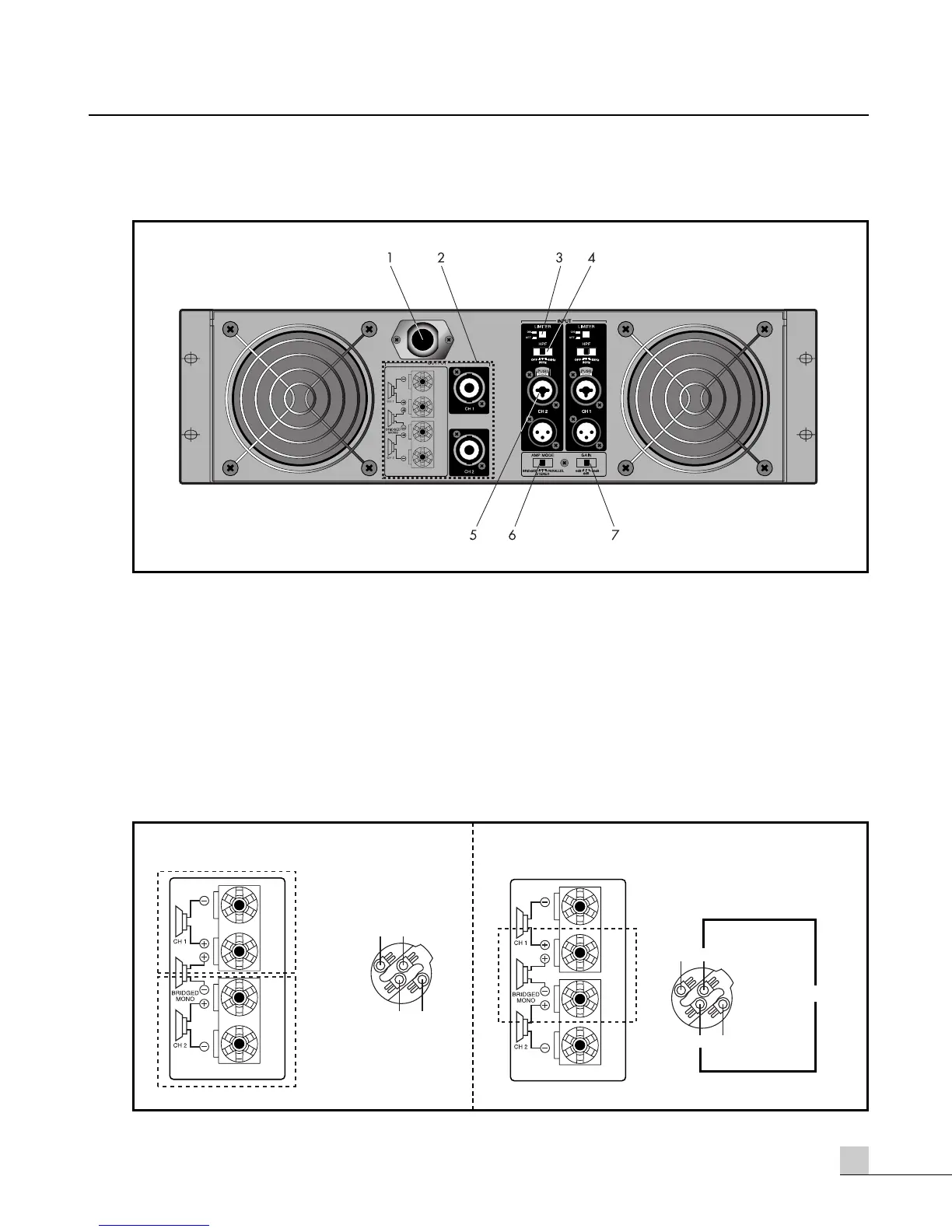

Rear Panel
Rear Panel
1. AC MAINS INPUT
Connect the amplifier to an appropriate AC MAINS power source using the supplied AC MAINS Power
Cord. It is the responsibility of the user to supply/install the appropriate AC MAINS plug, and then to
connect the amplifier to an AC MAINS power source that is rated appropriately for the current required by
the amplifier.
2. OUTPUT CONNECTORS
Binding Posts and Speakon connectors are provided for connection to the cables for the loudspeakers. Please
note that Bridged Mono operation requires a different method of interconnection to the speaker cables than
normal Stereo operation. Also be sure that the amplifier is in the correct mode before connecting the speaker
load.
7
H-3200/4200
PROFESSIONAL POWER AMPLIFIER
CH2
CH1
1- 1+
2+ 2-
AMP OUTPUT CH1/CH2
NOT CONNECTED
NEG POS
1- 1+
2+ 2-
MONO(BTL)
CH1 AMP OUTPUT SPEAKON
- STEREO MODE - BRIDGED MODE
