H-3200/4200
PROFESSIONAL POWER AMPLIFIER
Applications
Applications
-1

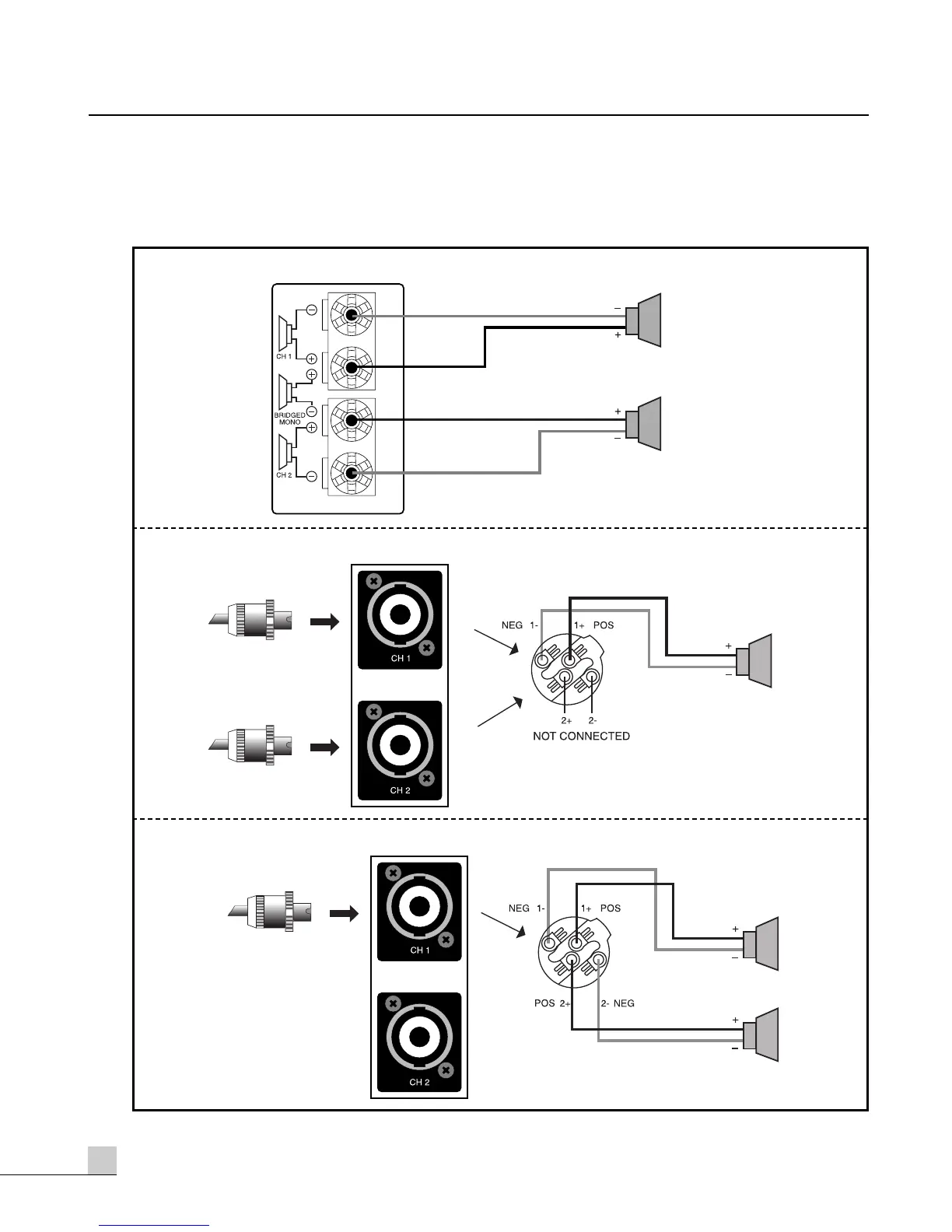

- Parallel/Stereo Installation
CH1
CH2
CH1/CH2 AMP OUT
(1+ 1–)
- Binding Post Outputs
- 2 Channels & 2 Speakon
™Outputs
- 2 Channels & 1-Speakon™Outputs
CH2
CH1
CH2 AMP OUT
CH1 AMP OUT
CH1 AMP OUT
(1+ 1–)
CH2 AMP OUT
(2+ 2–)
CH2 SPEAKON: NOT CONNECTED
