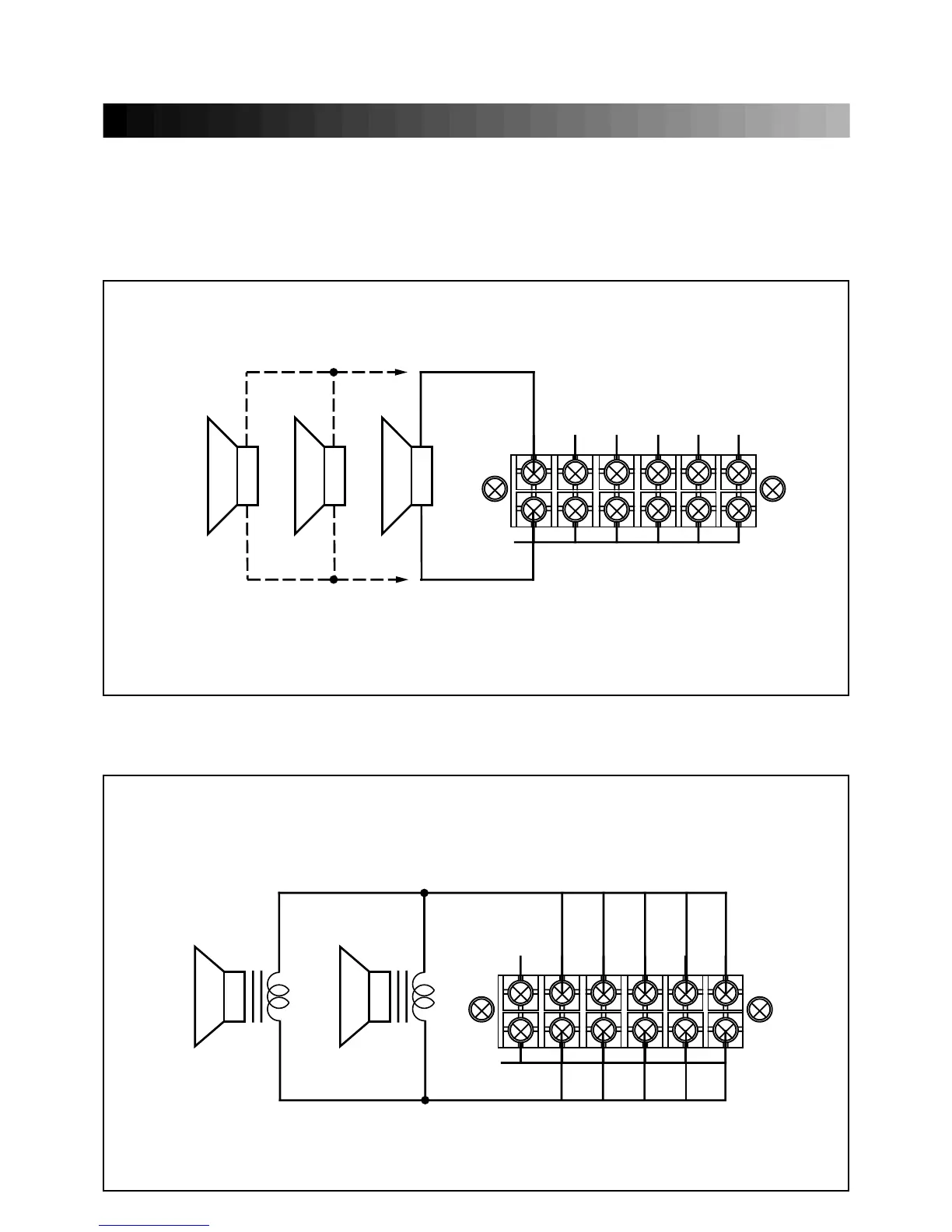

INSTALLATION OF THE SPEAKERS
6
When you connect the speaker, remove the power cord from Acount let. And use the suitable terminals con-
necting way as belows.
Be sure that total impedance is not less than rated impedance.
FOR 4Ω TERMINAL
FOR HIGH IMPEDANCE TERMINAL
4Ω
COM
SPEAKER OUTPUT
SP 4SP 3SP 2SP 1 SP 5
+
-
+
-
+
-
8Ω 8Ω
4Ω
4Ω
COM
SPEAKER OUTPUT
SP 4SP 3SP 2SP 1 SP 5
Matching
Trans
Matching
Trans

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Inter-m PAM-60 and is the answer not in the manual?

Inter-m PAM-60 Specifications

PAM-60

Electrical Specifications IconElectrical Specifications
rated output60W (RMS)
input sensitivity/impedance1mV-160mV/600Ω
frequency response80Hz~20KHz
T.H.D (at 1KHz rated output)Less than 1%
S/NBetter than 100dB
tone control (100Hz, 10KHz)12dB
EQ control (100Hz, 1KHz, 10KHz)12dB
speaker output/impedance60W (4Ω), 83Ω (70V), 165Ω (100V)
pre amp out/impedance1V/600Ω
music on hold/impedance0.775V/600Ω
link out/impedance500mV/600Ω
General Specifications IconGeneral Specifications
power sourceAC 110V~240V, 50/60Hz, DC 24V
power consumption150W
weight11.4Kg
dimensions420(W) 132(H) 360(D) mm

PAM-120

Electrical Specifications IconElectrical Specifications
rated output120W (RMS)
input sensitivity/impedance1mV-160mV/600Ω
frequency response80Hz~20KHz
T.H.D (at 1KHz rated output)Less than 1%
S/NBetter than 100dB
tone control (100Hz, 10KHz)12dB
EQ control (100Hz, 1KHz, 10KHz)12dB
speaker output/impedance120W (4Ω), 42Ω (70V), 83Ω (100V)
pre amp out/impedance1V/600Ω
music on hold/impedance0.775V/600Ω
link out/impedance500mV/600Ω
General Specifications IconGeneral Specifications
power sourceAC 110V~240V, 50/60Hz, DC 24V
power consumption300W
weight13.5Kg
dimensions420(W) 132(H) 360(D) mm
