PSI-5120A/5240A
Method to Assemble Rack Bracket
Method to Assemble Rack Bracket
S2
W1
S1
S1
S2
W1
S2
W1
S2
W1
S1
S1
ANGLE BKT
*
The example of using main body as horizontality

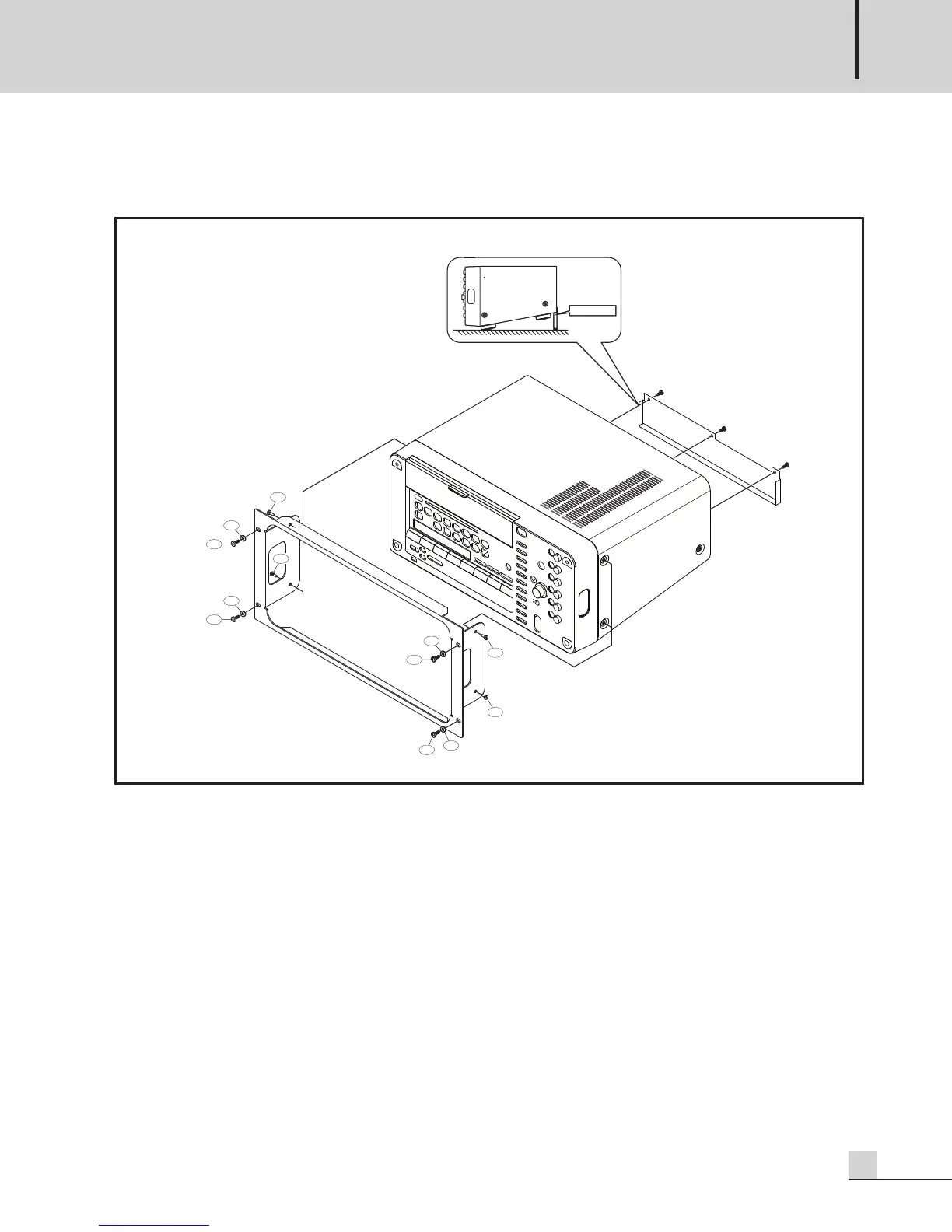

1. Put RACK BRACKET (BKR-PSI5120) from the front side of the system. (BRACKET separately sold)
2. Secure the side of system firstly using S1 (4EA).
3. Secure the system to the rack by using S2 nuts (4EA), W1 (4EA) and washers (4EA).
