D-0120588-B – 2019/03
Eclipse – Instructions for Use - EN Page 86

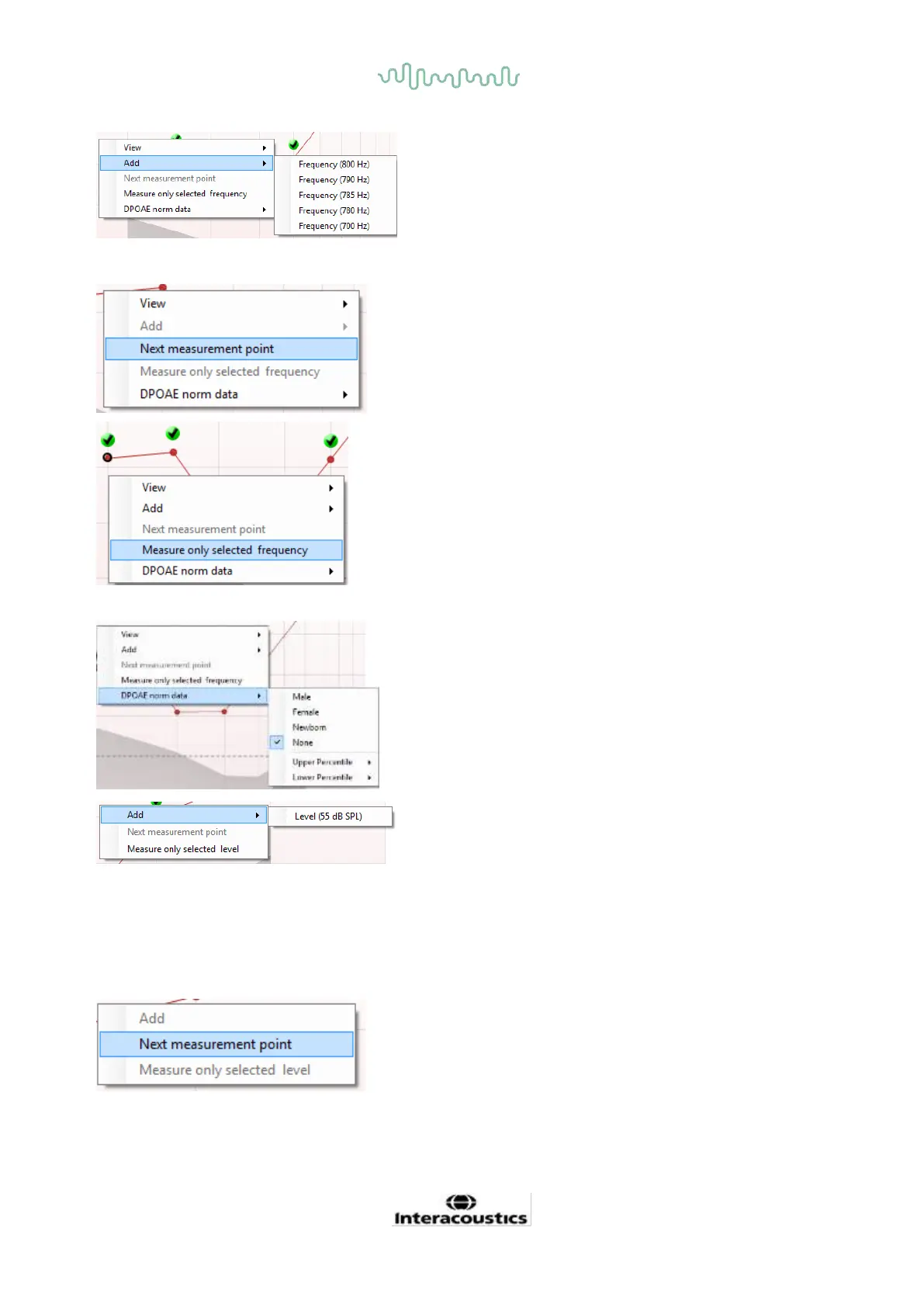

Add an additional frequency after testing of the original
protocol has finished. Point and right click your mouse at the
frequency that you would like to test. Click on Add then
select an available frequency from the list to measure. After
adding one or more frequencies you will notice that the Start
button changes to say Continue. Clicking Continue will
measure all inserted frequencies without a time limit. Press
Stop when the additional points are sufficiently tested.
Next measurement point interrupts the automatic test
procedure and forces the device to start testing the next
frequency immediately. This function is available when max
test point has been selected in the protocol.
Measure only selected frequency results in re-testing the
currently selected measurement point only. Select a
measurement point to re-test by right clicking on it. A black
circle around the measurement point indicates that it is
selected. After pressing Continue (where the Start button
was) the selected point will be tested without a time
limitation. Press Stop to stop testing.
DPOAE norm data allows you to change which DP norm
data is shown in the DP-Gram.
Right clicking on the DP-I/O graph provides the following
options:
Add an additional level after testing of the original protocol
has finished. Point and right click your mouse at the
frequency that you would like to test. Click on Add then
select an available level to additionally measure. After adding
one or more levels you will notice that the Start button
changes to say Continue. Clicking Continue will measure
all inserted levels without a time limit. Press Stop when the
additional points are sufficiently tested.
Next measurement point interrupts the automatic test
procedure and forces the Eclipse to start testing at the next
intensity immediately. This function is available when max
test point has been selected in the protocol.
