Affinity
2.0
Additional Information Page 251

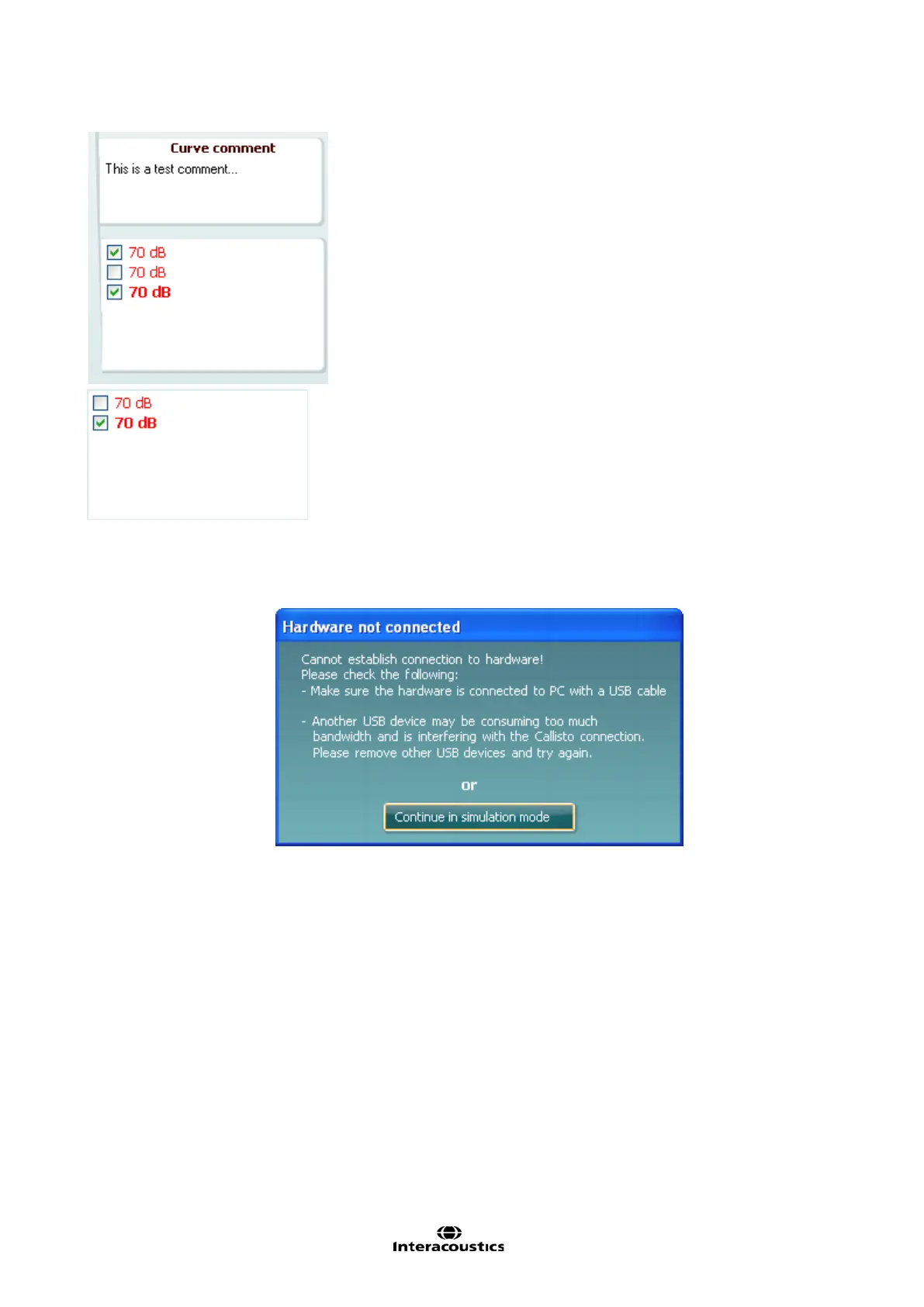

Curve comment for each curve can be typed into
the comment section on the right hand side.
Select a curve using the curve tag boxes under
Curve display options and write a comment in the
comment section.
The comment will then appear in the comment
section whenever the curve is selected.
Curve display options are found in the lower right
hand corner.
If you have measured more VSPM curves, they will
be listed by their input level. Tick the ones that are to
be displayed on the graph.
Hardware indication picture indicates whether the
hardware is connected.
When opening the Suite the system will automatically search for the hardware. If it does not detect the
hardware a dialog box pops up and asks if you want to continue in simulation mode.
