3.13 Appendix 2:
3.13.1 Connecting the TBS25 to Affinity
2.0
/Equinox
2.0
Description:

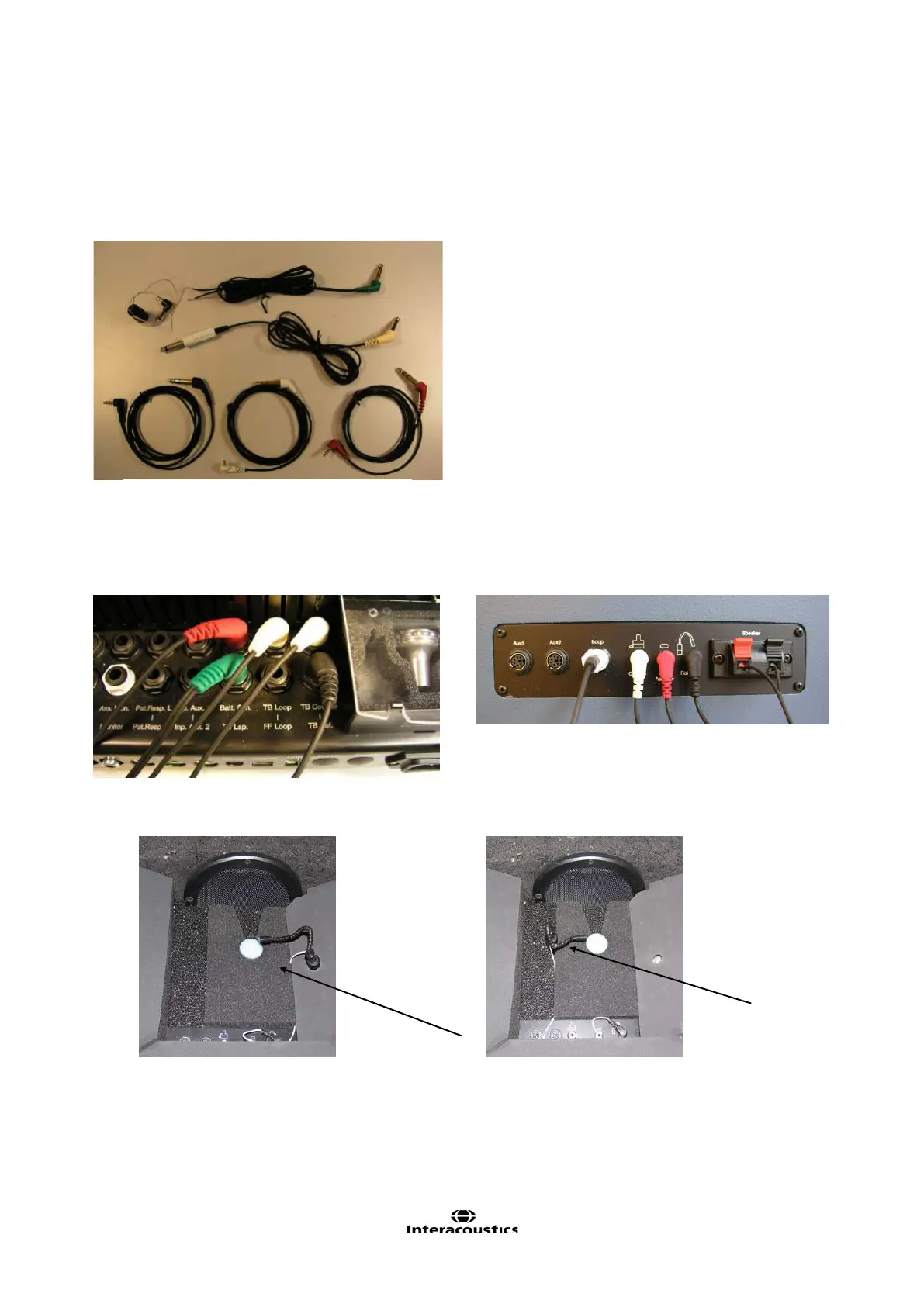

The following items are included with the Cable kit for TBS25 – Affinity
2.0
/Equinox
2.0
and TBS25:
1) Base for reference microphone
2) Test box connection cable for speaker (green
connector)
3) Cable for test box loop (beige connector)
4) Cable reference mic. (black connector)
5) Cable coupler mic. (white connector)
6) Cable battery adaptor (red connector)
The cable connectors are plugged into the Affinity
2.0
as shown in Error! Reference source not found. and
into the TBS25 as shown in Error! Reference source not found.. The reference microphone can be placed
in the left or right side of the TBS25, as you prefer (Error! Reference source not found. and Error!
Reference source not found.).
1)
2)
3)
4)
6)
5)
Figure 2: Cable placement on the
Affinity/Equinox
Figure 3: Cable placement in TBS25
Figure 4: Reference mic.
placement 2
Figure 1: Cable kit
3)
2)
1)
4)
Figure 5: Reference mic.
placement 1
