7 INSTALLATION

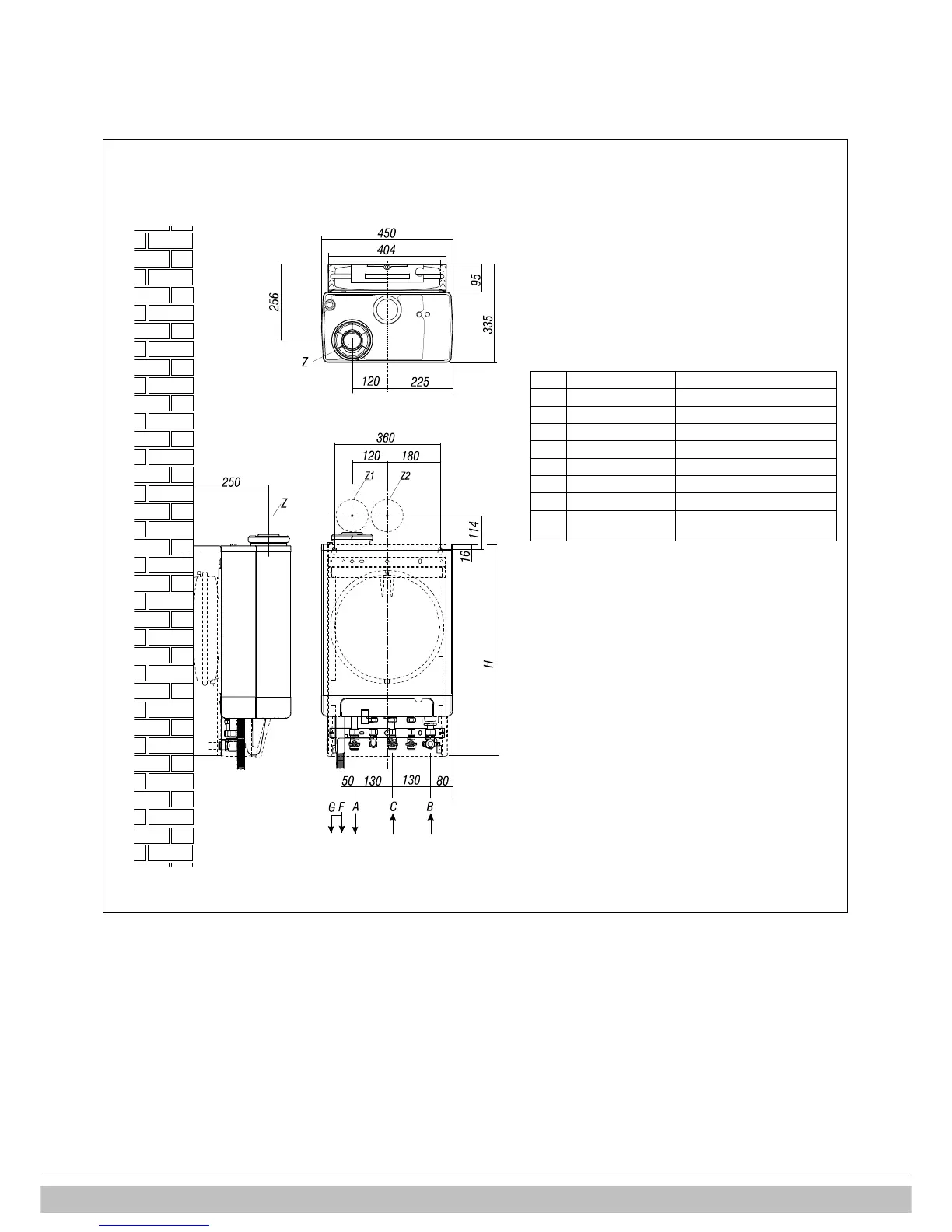

7.1 Overall dimensions
Appliance inclusive wall mounting jig:
Appliance + wall mounting jig + bracket
A =
Supply CH
Ø22
B =
Return CH
Ø22
C =
Gas
½”
F =
Condensate drain
Ø25 (flexible)
G =
Drain PRV
Ø15
H=
840
(*)
Compact HRE SB 30
& SB 40
H =
780
Compact HRE SB 24
H =
720
Compact HRE SB 18
Z =
Flue pipe / air
supply
Ø60/100 (concentric)
(*) Note: The condensate trap of the SB 40 protrudes below
pipe cover and wall mounting frame.
