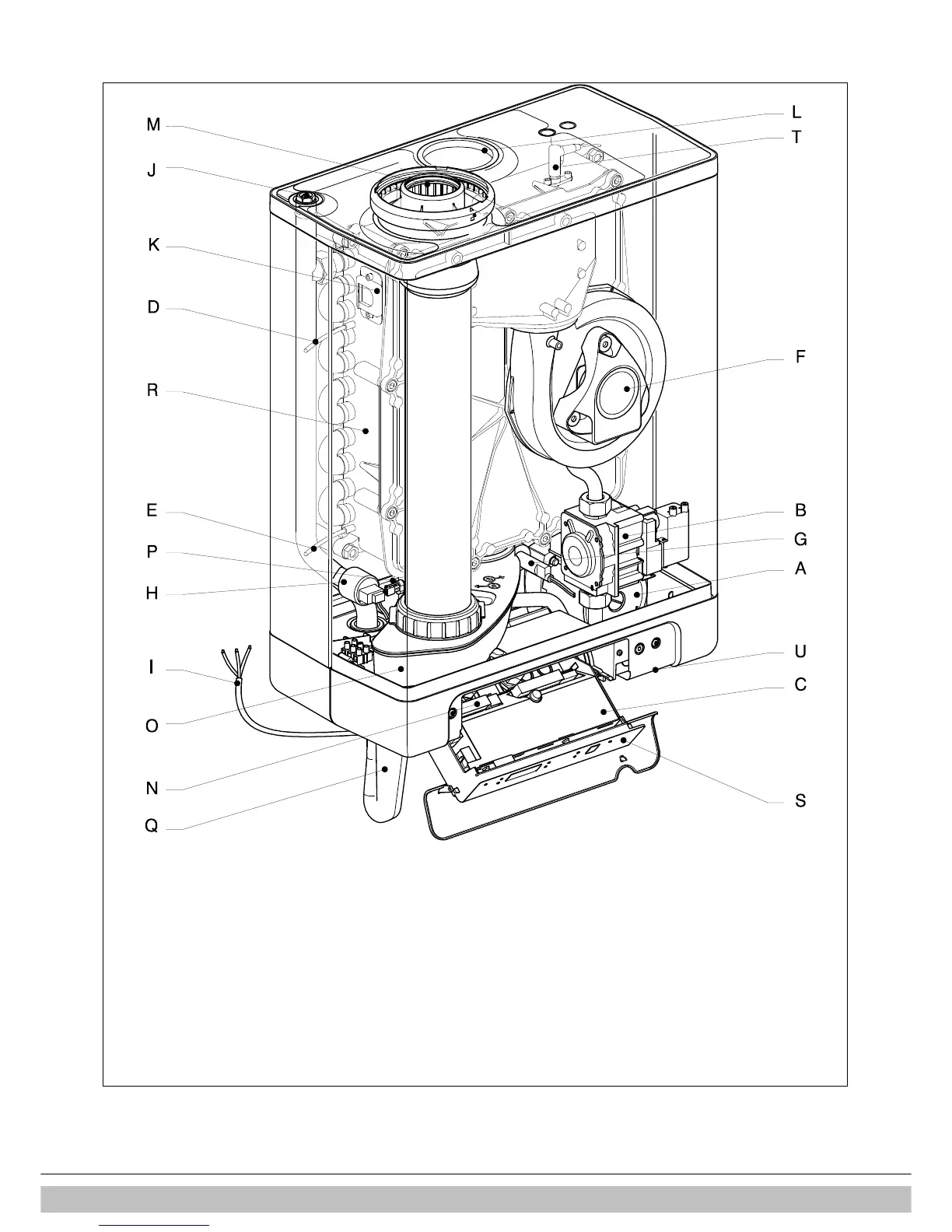

2.5 Components
A. CH pump K. Sight glass
B. Gas valve L. Air supply cap
C. Boiler controller M. Flue pipe adapter (only to be used in combination with the
accompanying elbow in flue sets).
D. Sensor S1 N. Connection block / terminal strip X4
E. Sensor S2 O. Condensate drain pan
F. Fan P. N.a.
G. N.a. Q. Condensate trap
H. CH pressure sensor R. Heat exchanger
I. Mains lead 203 V AC without plug (stripped) S. Operating panel and read-out
J. Manual air bleed T. Ionisation / ignition electrode
U. Position of data plate
