9.2 Commissioning the appliance

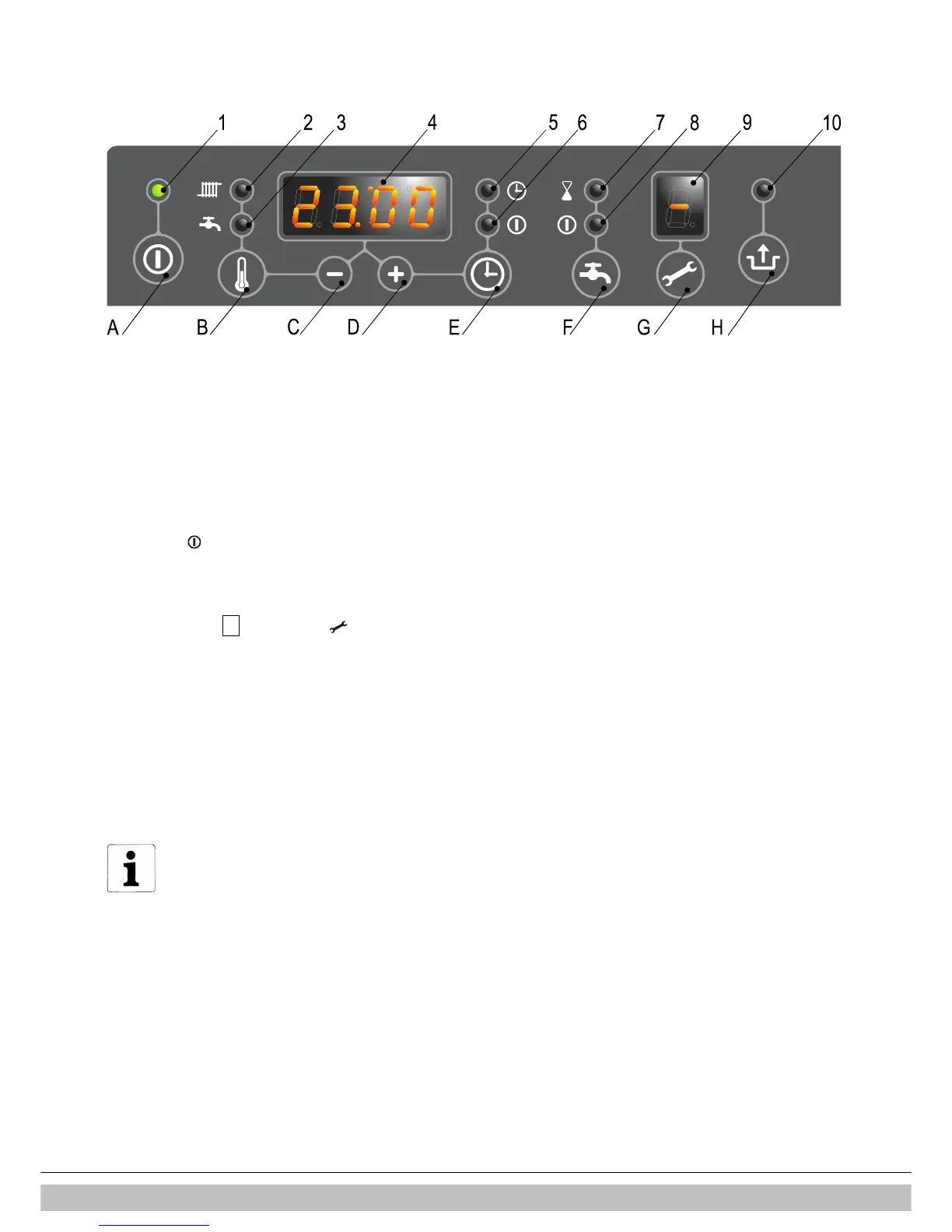

Read
-
out
Operation
1
On / off
A
On / Off button
2
CH operation or setting maximum CH temperature
B
DHW / CH button, for setting desired temperature
3
DHW operation or setting DHW temperature
(not applicable for Compact HRE SB
)
C
-
button
4
Desired temperature of CH or DHW in °C / Ch water pressure (bar) / Fault code/ Time
D
+ button
5
Clock “on” CH enabled
E
Clock function setting
6
Clock “off” CH disabled
F
DHW comfort funct
ion off/eco/on (
not applicable for Compact HRE SB
)
7
DHW comfort function eco (
not applicable for Compact HRE SB
)
G
Service button
8
DHW comfort function on (continuous) (
not applicable for Compact HRE SB
)
H
Reset button
9
Operating code
10
Fl
ashes to indicate fault
Once the preceding actions have been carried out, the appliance may be started up.
1. Press the button , to start the appliance.
2. Adjust the pump setting depending on the maximum power set and the resistance in the
CH installation. For the water head of the pump and the pressure loss of the appliance see
§ 10.5.
3. Set the room thermostat higher than the room temperature. The appliance will now switch
to CH operation: 5 will show on the display.
4. Heat the installation and the appliance to approximately 80°C.
5. Check the temperature difference between the supply and return for the appliance and the
radiators. This must be approximately 20°C. For this purpose set the maximum power on
the service panel. See setting maximum power. If necessary adjust the pump setting
and/or the radiator valves. For the minimum flow see § 10.5.
20. Switch the appliance off.
21. Bleed the appliance and the installation after cooling (if necessary top up).
22. Check correct operation of the heating and hot water supply.
23. Instruct the user on filling, bleeding and the operation of the clock, heating and hot water
supply. For setting the clock see § 9.3.Note: for S and Y plans the clock will be set to C-ON
to allow the external timer/programmer to operate the CH and DHW cylinder separately or
together.
NOTE
• The appliance is equipped with an electronic boiler controller, which
ignites the burner and continuously monitors the flame during each
request for heat from the heating or from the hot water supply.
• The circulation pump starts running in response to every request for
heat. The pump continues running for 1 minute after heating.
This post purge period can be changed if desired (See § 10.3.).
• The pump runs automatically for 10 seconds every 24 hours in order
to pre
vent seizing. This will occur at the the time of the last request for
heat. To change this time the room thermostat should be turned up
briefly at the desired time.
