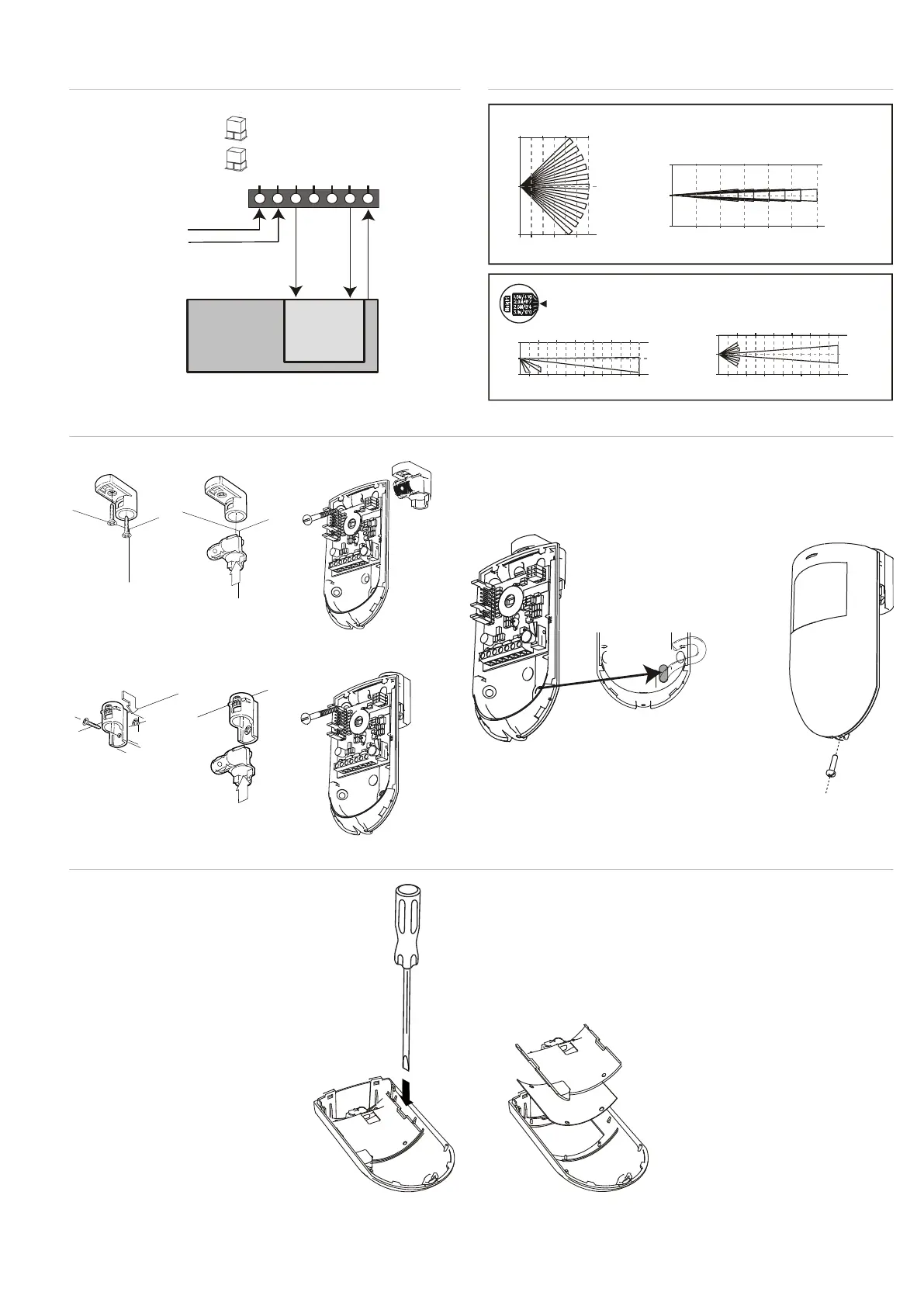

Interlogix 6540 - Page 3

P/N INS518 • REV B • ISS 12MAR19 3 / 25
11
12
13
14
Normal = 3k3 
Alarm = 6k6 
Tamper = 
Short = 0 
ZONE X
0V +12 Alarm Alarm Tamper Tamper WT (max 15 V)
Alarm
Tamper
6545-CL
SIDE
VIEW
6°
TOP
VIEW
12m
40'0"
2m
6'7"
0m
0'0"
4m
13'1"
12m
40'0"
6m
19'8"
4m
13'1"
10m
32'9"
8m
26'2"
2m
6'7"
6m
19'8"
10m
32'9"
2m
6'7"
4m
13'1"
8m
26'2"
2m
6'7"
0m
0'0"
SIDE
VIEW
2m
6'7"
4m
13'1"
0m
0'0"
12m
40'0"
16m
52'5"
20m
65'6"
24m
78'9"
6m
19'8"
4m
13'1"
10m
32'9"
14m
45'11"
18m
59'0"
22m
72'1"
26m
85'3"
8m
26'2"
2m
6'7"
TOP
VIEW
4.4°
2m
6'7"
4m
13'1"
0m
0'0"
12m
40'0"
16m
52'5"
20m
65'6"
24m
78'9"
6m
19'8"
4m
13'1"
10m
32'9"
14m
45'11"
18m
59'0"
22m
72'1"
26m
85'3"
8m
26'2"
2m
6'7"
6545-LR
2.3m
Mount only at 2m
4m
13'1"
12m
40'0"
6m
19'8"
4m
13'1"
10m
32'9"
8m
26'2"
2m
6'7"
CEILING MOUNT BRACKET
WALL MOUNT BRACKET
SEAL ALL HOLES
1
1
2 3
4
1
2 3
5
