Advisor Advanced ATSx000A(-IP) Installation and Programming Manual 21
Caution: If the PSTN line is provided via the ADSL network, make sure that at
least ADSL splitter/filter is used, otherwise the PSTN communication quality may
be too low for a reliable reporting.
Ethernet connection

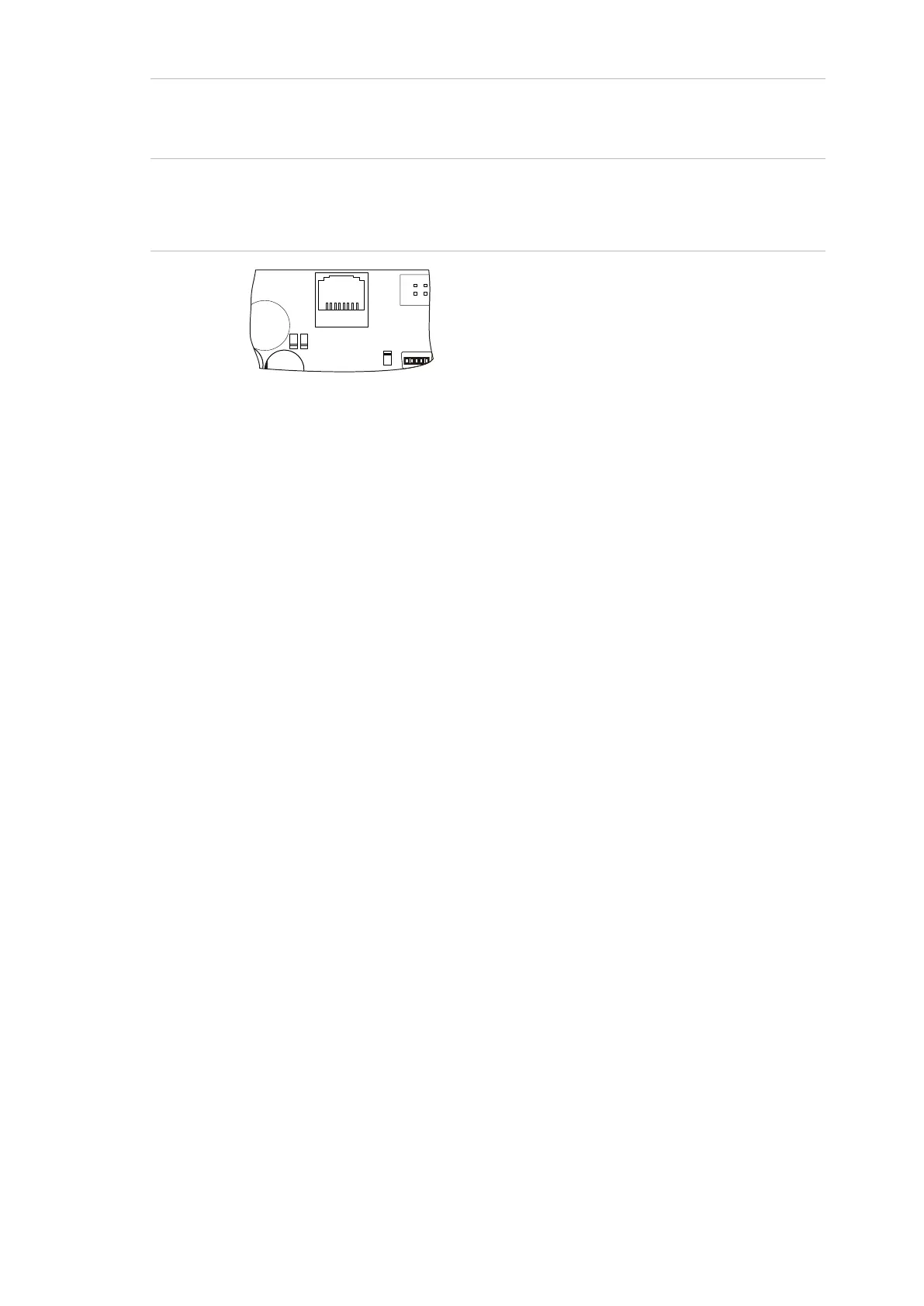

Figure 20: Ethernet connection
The Ethernet port is an IEEE 802.3u based connection supporting 10BASE-T or
100BASE-TX link speeds.
Use only FTP Cat 5e type cable for Ethernet connections.
In ATSx000A(-IP), place FTP Ethernet cable through the ferrite, wrap the cable
around and bring it through again as it is shown in “Advisor Advanced housings”
on page 1. Close ferrite securely.
