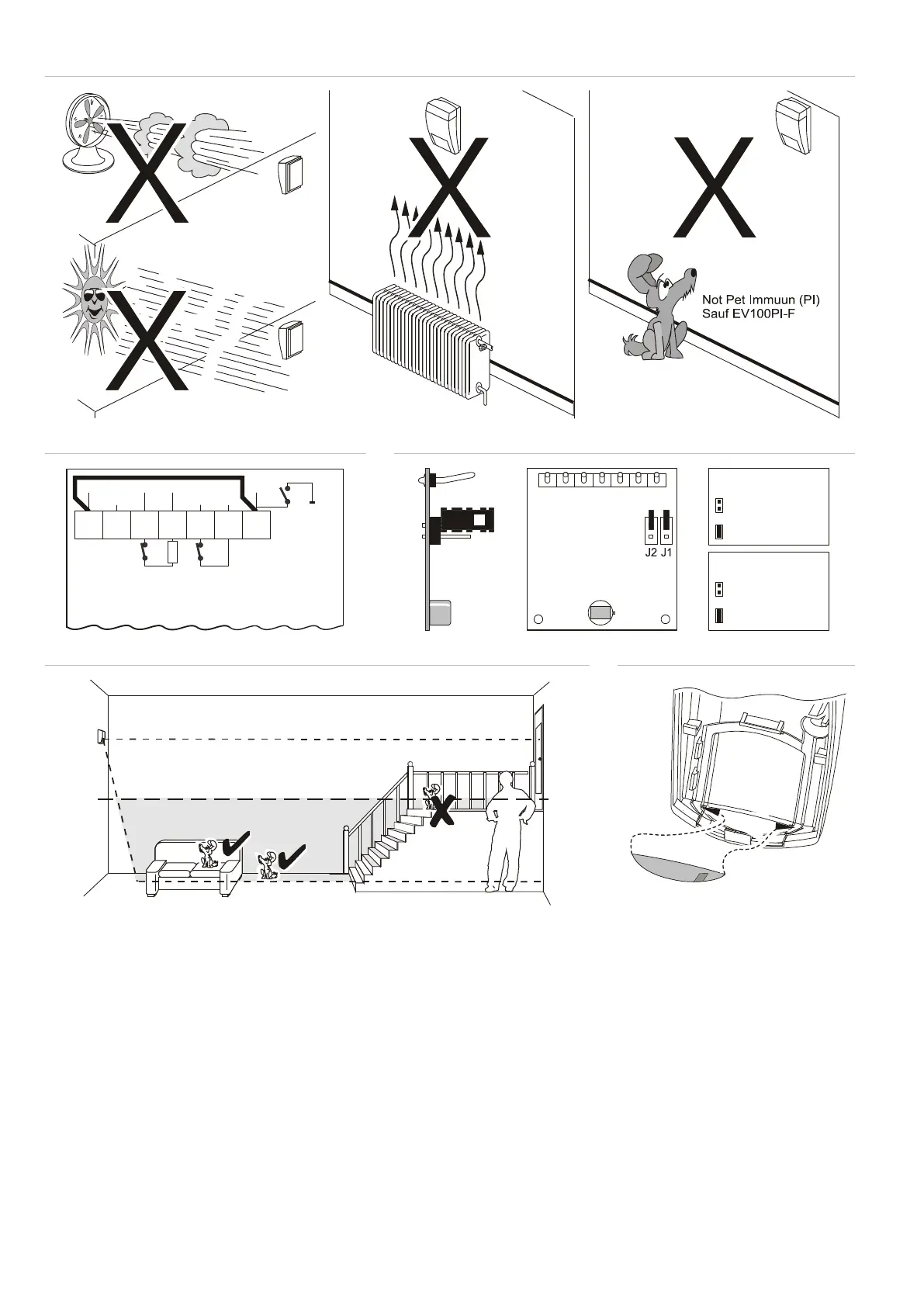

2 / 16 P/N 144553999-3 • REV C • ISS 01MAR19
4
5
6
7
8
ALARM
-0V
+12V
LED
LED
12 VDC
CURRENT:
4.5 mA nom.
10.0 mA max.
R33
TAMPER
1 2 3 4 5 6 7
J1
STD
Bi-C
Process Mode
J2
6 / 7 m
10 / 12 m
PIR range
