4

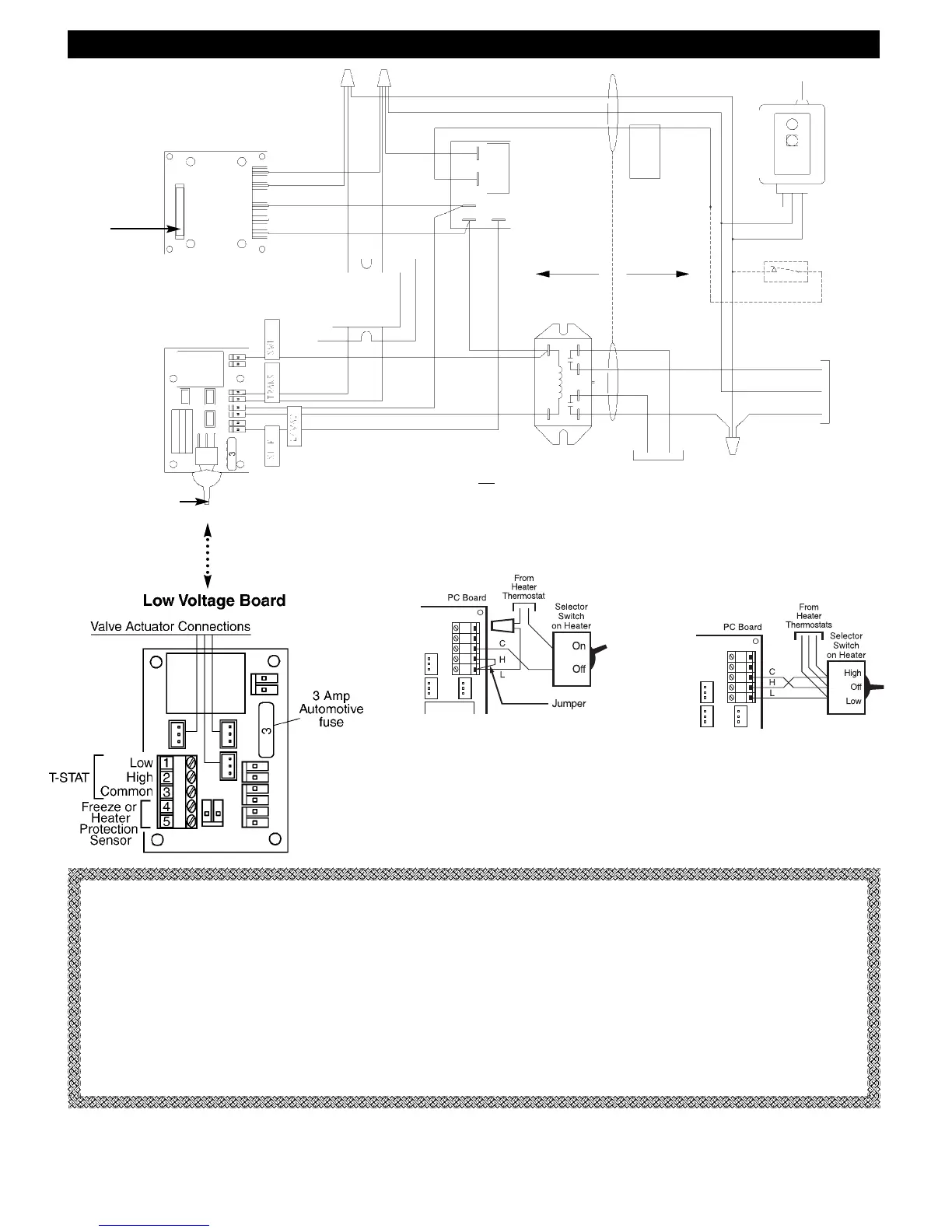

WIRING DIAGRAM
Single Thermostat Heater
Dual Thermostat Heater
1. Connect two 18 gauge wires in
SERIES with Heater’s Selector
Switches.
2. Connect one of the wires to
terminal “C” and the other to
terminal “L”.
INSTALL JUMPER
BETWEEN TERMINALS
“L” AND “H”.
3. Leave heater switch in ON position.
1. Connect three 18 gauge wires in
PARALLEL with Heater’s Selector
Switches.
2. Connect the wire from central post
(Common) of heater switch to
terminal “C”, High to “H” and
Low to “L”.
3.
L
eave heater switch in
OFF position.
120V Pump - Connect NEUTRAL to WHITE lead and pump NEUTRAL.
Connect 120V
. line to
BLACK lead and BLUE lead to pump LOAD ter
minal.
Cap
RED and YELLOW leads.
Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make changes, without notice, in the specifications and material
contained herein and shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented.
INTERMATIC INCORPORATED, SPRING GROVE, IL 60081-9698
http://www.intermatic.com
158AS11461
ONE YEAR LIMITED WARRANTY
If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace
it, at its sole option, the unit free of charge. This warranty applies only to the original purchaser and is not transferable. This warranty does not apply
to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use; (b) units which have been subject to unautho-
rized repair, opened, taken apart, or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the
product. Some states do not allow a limitation of damages, so the foregoing limitation may not apply to you. This warranty gives you specific legal
rights and you may have other rights that vary from state to state.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE
OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing postage prepaid
to the nearest authorized service center listed. Please be sure to wrap the product securely when mailing to avoid shipping damage. This warranty is
made by: Intermatic Incorporated/After Sales Service, 7777 Winn Rd., Spring Grove, IL 60081-9698/815-675-7000 http://www/intermatic.com
MEMORY
HOLD-UP
BATTERY
TIMER
NEUT
.
LINE
120/24V
.
TRANSFORMER
HEATER
SELECTOR
SWITCH
PUMP RELAY
240V.
PUMP
REMOTE
LOCATED
RADIO
RECEIVER
ORG
BLK
WHT
RED
BLK
BLU
YEW
LINE 2
NEUT.
LINE 1
3 WIRE
SUPPLY
REMOTE
LOCATED
SWITCH
BLK
RED
WHT
INTERNAL
WIRING
FIELD
CONNECTIONS
SENSOR
LINE
