Intermec EasyCoder PX4i Spare Parts

Chapter 2 — Spare Parts
EasyCoder PX4i and PX6i Printers Spare Parts Catalog 9

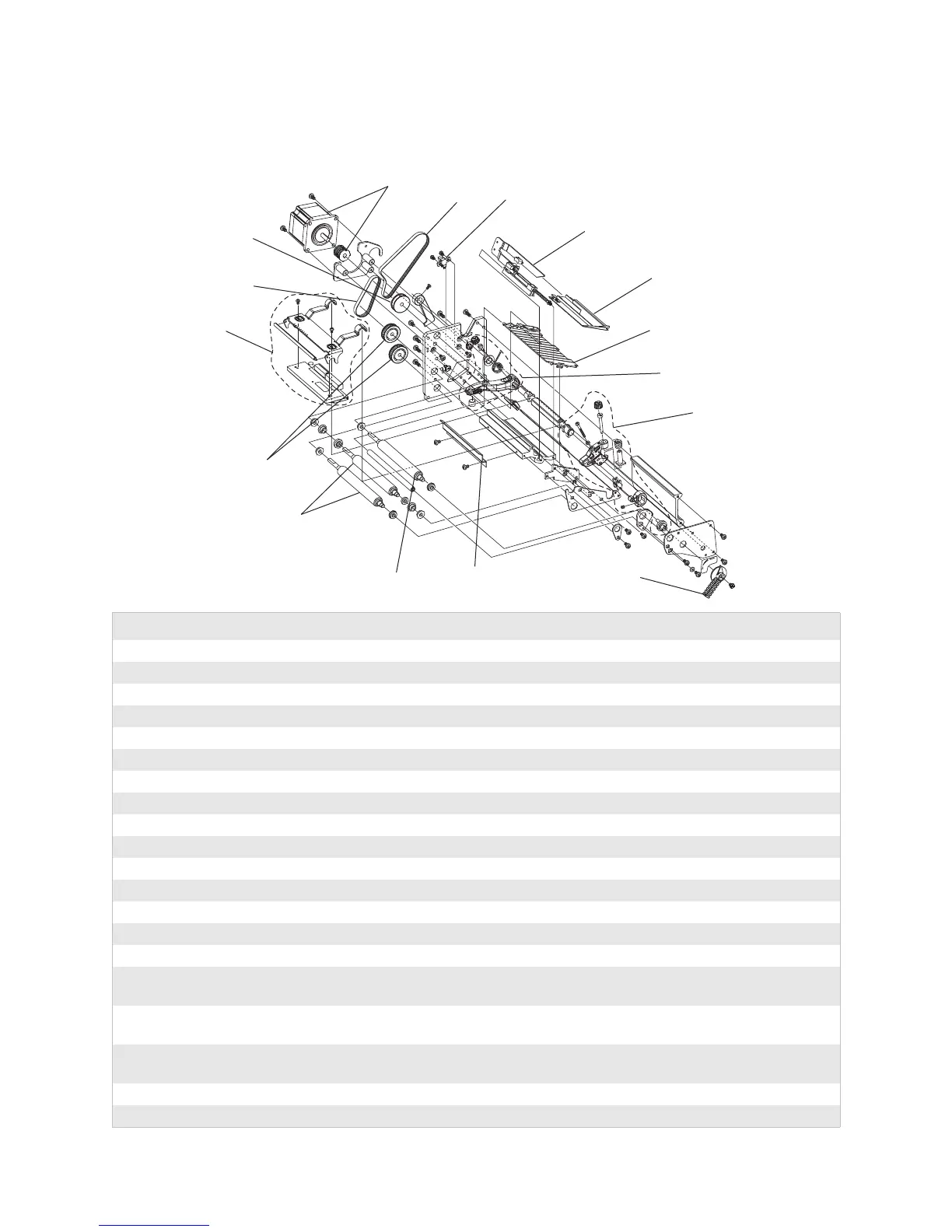

Print Unit, EasyCoder PX4i
Callout Part Number RoHS Number Description Remarks
1-040086-90 1-040086-900 PX4i print unit assembly Complete unit
1 1-040960-90 1-040960-900 Stepper motor assembly Includes pulley
2 1-995101-54 1-995101-54 Timing belt
3 1-975606-20 1-974006-020 Reflecting sensor (headlift)
4 1-040109-01 1-040109-02 Label stop assembly
5 1-040151-01 1-040151-01 Upper guide assembly
6 1-040150-01 1-040150-01 Lower guide assembly
7 1-040195-00 1-040195-00 Pressure arm assembly
8 1-040254-90 1-040254-90 Head pressure link assembly
9 1-040248-02 1-040248-02 Cam handle
9 1-040163-00 1-040163-00 Knob crank shaft assembly Includes crank shaft and screw
10 1-040229-03 1-040229-03 Tear bar
11 1-040230-90 1-040230-90 Ribbon assist roller
12 1-040230-93 1-040230-93 Platen roller/liner drive roller Includes bearings
13 1-040100-02 1-040100-02 Tooth belt wheel
14 1-040082-90 1-040082-900 Thermal printhead assembly
(8 dots/mm)
203.2 dpi
14 1-040083-90 1-040083-900 Thermal printhead assembly
(11.81 dots/mm)
300 dpi
14 850-812-900 850-812-900 Thermal printhead assembly
(16 dots/mm)
400 dpi
15 1-995101-24 1-995101-24 Timing belt
16 1-040519-90 1-040519-900 Toothless wheel assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
