Chapter 2 — Spare Parts
10 EasyCoder PX4i and PX6i Printers Spare Parts Catalog

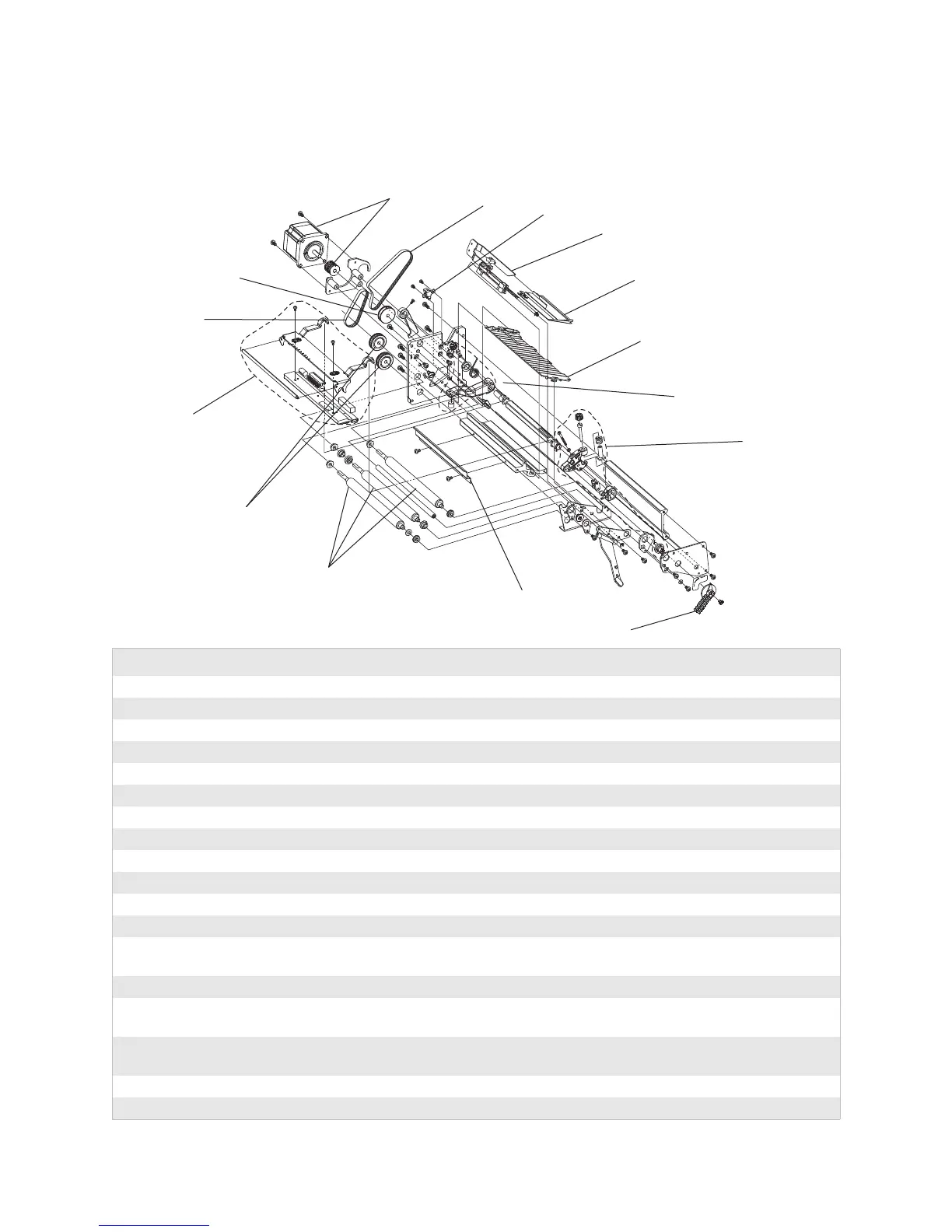

Print Unit, EasyCoder PX6i
Callout Part Number RoHS Number Description Remarks
1-040087-90 1-040087-900 Print unit assembly Complete unit
1 1-040960-90 1-040960-900 Stepper motor assembly Includes pulley
2 1-995101-54 1-995101-54 Timing belt
3 1-975606-20 1-974006-020 Reflecting sensor (headlift)
4 1-040109-10 1-040109-02 Label stop assembly
5 1-040151-01 1-040151-01 Upper guide assembly
6 1-040150-11 1-040150-11 Lower assembly
7 1-040195-00 1-040195-00 Pressure arm assembly
8 1-040163-00 1-040163-00 Knob crank shaft assembly Includes crank shaft and screw
8 1-040254-90 1-040254-90 Head pressure link assembly
9 1-040248-02 1-040248-02 Cam handle
10 1-040229-13 1-040229-13 Tea r ba r
11 1-010110-90 1-010110-90 Platen roller/liner drive roller/
ribbon assist roller
Includes bearings
12 1-040100-02 1-040100-02 Tooth belt wheel
13 1-040084-90 1-040084-900 Thermal printhead assembly
(8 dots/mm)
203.2 dpi
13 1-040085-90 1-040085-900 Thermal printhead assembly
(11.81 dots/mm)
300 dpi
14 1-995101-24 1-995101-24 Timing belt
15 1-040519-90 1-040519-900 Wheel (toothless) assembly
