10 GPIO Terminal Block User’s Guide
Installing the Terminal Block
You need these tools to install the terminal block:
• Drill and drill bits appropriate for the mounting surface
• Small straight-slot and Phillips screwdrivers
• Wire crimping and stripping tool
To install the terminal block
1 Choose a location for the terminal block.
2 Drill four mounting holes. Use the included drilling template
(P/N 931-008-001).
3 Remove the top cover from the terminal block.
4 Place the terminal block in the location and secure it to the
mounting surface with four appropriate fasteners.
Note: For IP54 compatibility, mount the terminal block with the
connector side facing toward the floor.
Note: The terminal block includes four #6 x 2-inch wood screws you
can use for mounting, or you can supply your own mounting
hardware.

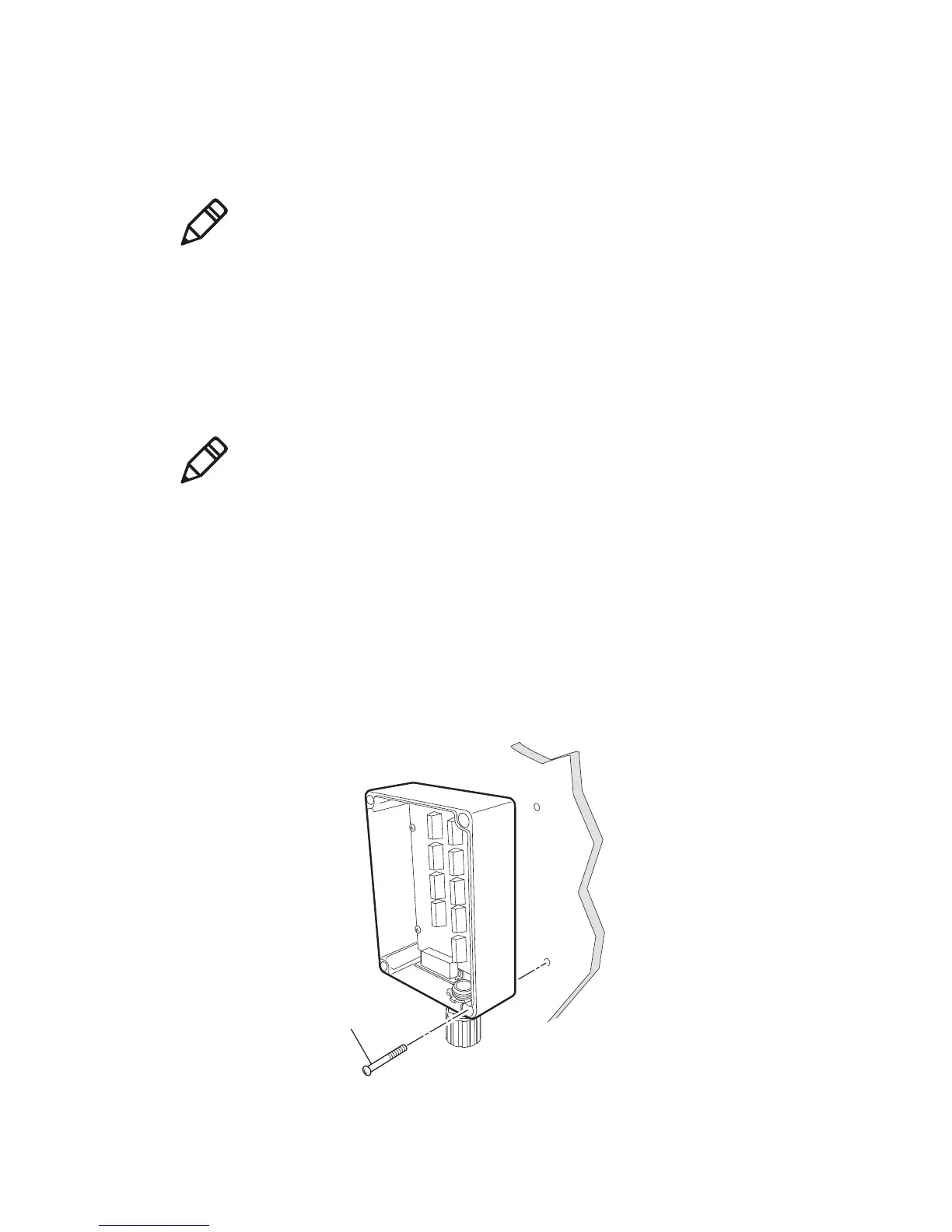

Mounting
hardware
(4 places)
