Intermec SF51 Quick Start Guide

6
Scanning Bar Codes
1 Press the Scan button to turn on the SF51. Once the SF51
establishes a Bluetooth connection, you can scan bar codes.

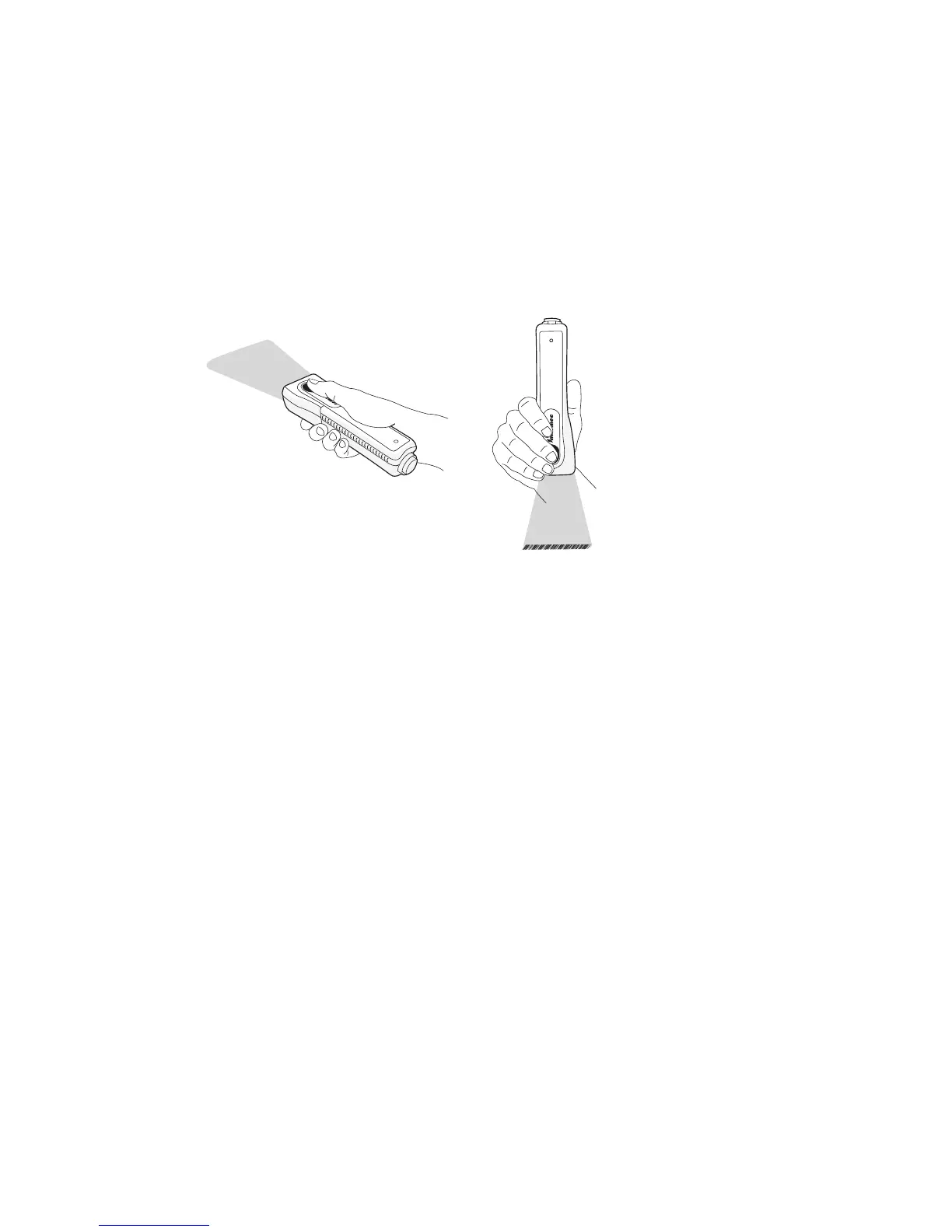

2 Point the SF51 at the bar code label and hold the SF51 at a
slight angle 15 to 25 cm (6 to 10 in) from the label. You can
use one of the test bar codes in the next section.
3 Press the Scan button. The red aiming beam turns on.
4 If you are scanning a 1D bar code, direct the beam so that it
falls across all bars in the bar code label. If you are scanning a
2D bar code, pass the beam over the bar code label in a steady
sweeping motion. The scanner emits a crackle sound.
When the SF51 successfully reads a bar code label, you hear a
single beep and the status light briefly turns green.
5 Release the Scan button.
Using Test Bar Codes
The SF51 ships with these bar code symbologies enabled:
•Code 39
•Code 128
•UPC/EAN
• PDF417 (only available on the SF51 with PDF version)
To enable more bar code symbologies, see the SF51 Cordless
Scanner User’s Guide (P/N 074474).
*INTERMEC*

Intermec SF51 Specifications

Capacity and Output

maximum output voltage	4.1 V
mean output voltage	3.7 V
capacity	2400 mAh

Temperature and Humidity

operating temperature range	-20°C to 50°C
charging temperature range	0°C to 35°C
storage temperature range	-20°C to 60°C
recommended storage temperature	21°C
humidity range	0 to 95% non-condensing

Weight and Dimensions

length	73 mm
diameter	19 mm
weight	55 g
