Interpack IPG USA 20-B - Width Adjustment Handle; Tape Loading and Threading

UM062TW / UM562TW UDM10010-01
15
SET-UP PROCEDURES

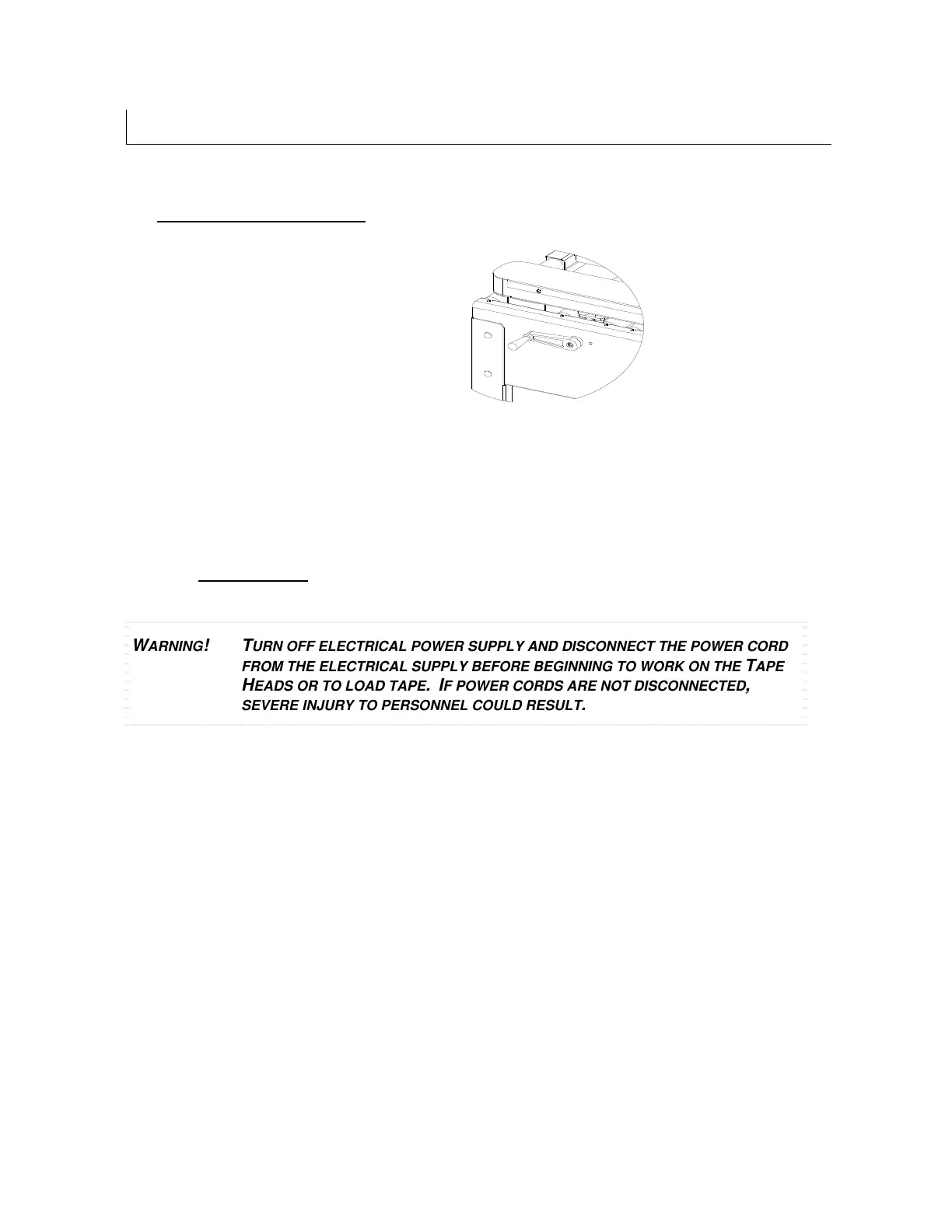

3) Width Adjustment Handle
The foldable handle that is
used to adjust the width of
the self-centering side rails
is located on the left hand
side of the machine.
Unscrew and change
sides.
Figure 6
4) Tape Loading and Threading
A) Tape Loading
W
ARNING! TURN OFF ELECTRICAL POWER SUPPLY AND DISCONNECT THE POWER CORD
FROM THE ELECTRICAL SUPPLY BEFORE BEGINNING TO WORK ON THE
TAPE
HEADS OR TO LOAD TAPE. IF POWER CORDS ARE NOT DISCONNECTED,
SEVERE INJURY TO PERSONNEL COULD RESULT
.
The HSD

2000-ETII - 48 tape heads accommodate 2-inch wide tape rolls, while the optional
HSD

2000-ETII - 75 tape heads accommodate 3-inch wide rolls. See the label on the side
of the HSD

2000-ETII tape head for the loadable tape sizes.
Push the roll of tape onto the mandrel with the adhesive side up (refer to threading diagram
on the HSD

2000-ETII tape head) until the core is set against the mandrel flange. This
ensures the tape will be aligned when feeding into the tape head.
