7. Connecting Utilities
a. Electrical

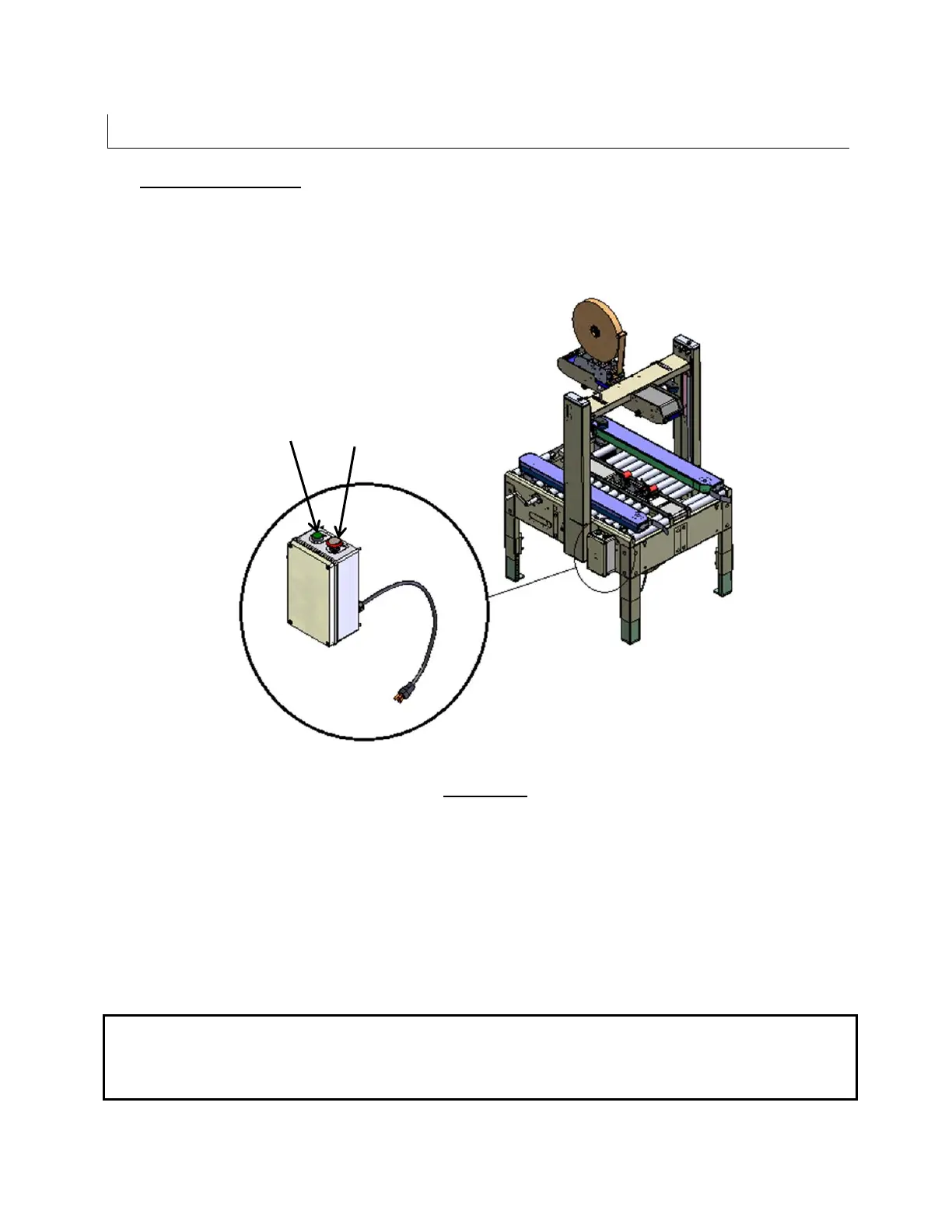

Figure-12
An eleven foot (11’) standard three conductor power cord with plug is provided for 115 V, 60 Hz,
15 amp electrical service. The receptacle must be properly grounded. Before the machine is
plugged into the receptacle, ensure that all materials are removed from the machine. The
electrical control is protected with an automatic circuit breaker with re-settable overload.
The electrical control box can be located on either side of the Carton Sealer for customer
convenience. It contains the green “on” push button and the red “E-Stop” re-settable push
button, which is to be used both for emergency stops as well as a stop button, The E-Stop
button requires a ¼ turn to release.
Moving the control box to the opposite side of the machine requires disconnecting and
reconnecting electrical wires and components. Only trained and qualified service
technicians should access an open control box. Please Follow All Possible Safety
Procedures Prior To And During This Process
Start
E-Stop
