26 User Manual
When the package containing the 50-200 FISH FINDER is first opened, please
check it for the following contents (if any parts are missing contact the dealer the
50-200 FISH FINDER was purchased from):
♦ 50-200 FISH FINDER (with Power Serial and optional devices cables
already connected)
♦ User Manual
4.2 DIMENSIONS

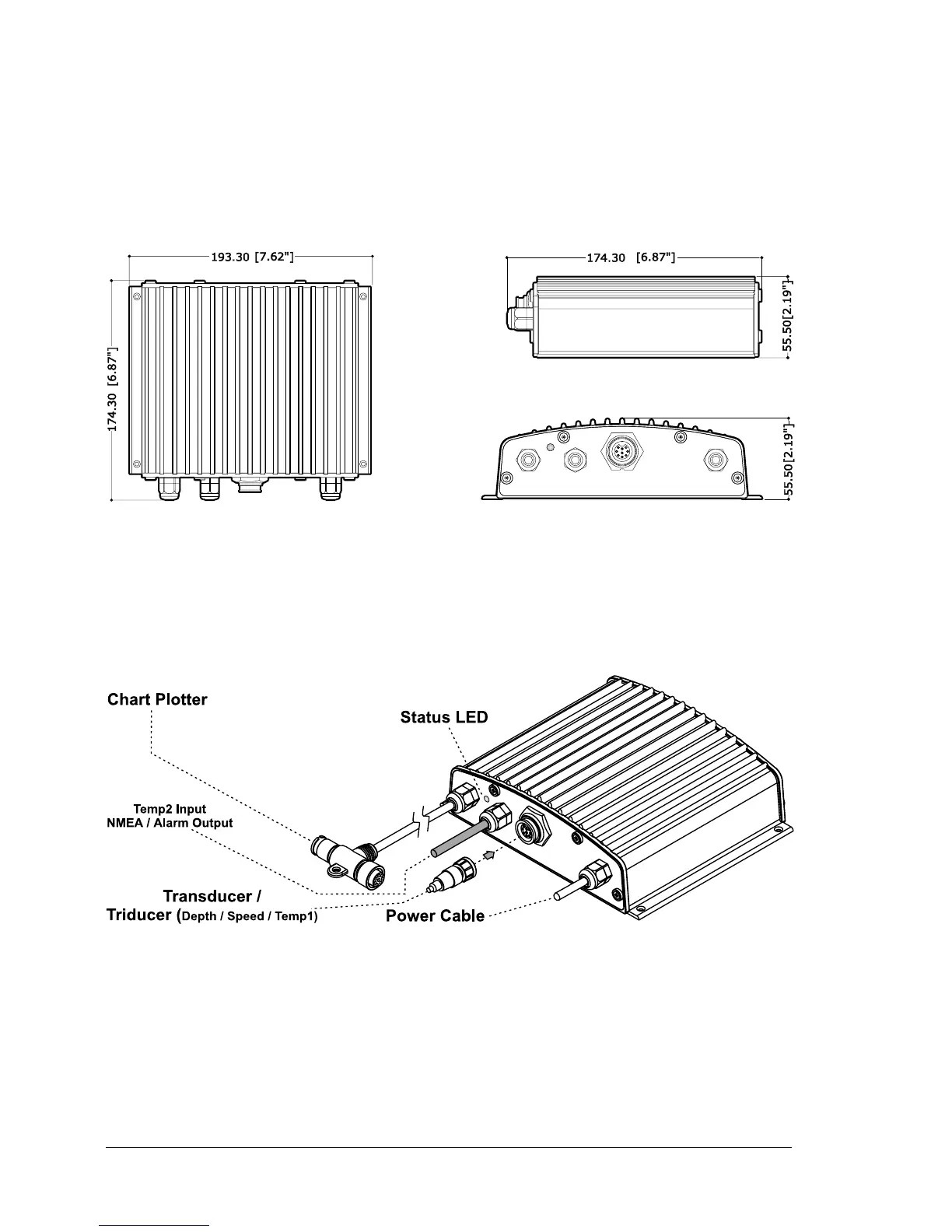

Fig. 4.2 - 50-200 FISH FINDER Dimensions
4.3 MOUNTING THE FISH FINDER
The 50-200 FISH FINDER should be preferably mounted in a dry and well venti-
lated location. Do not mount it where it will be submerged in liquids or exposed to
high temperature.
Fig. 4.3 - The 50-200 FISH FINDER
4.3.1 Installation
Picture showing actual example of the 50-200 FISH FINDER installation.
To Next Page
