4.5 EXTERNAL CONNECTIONS

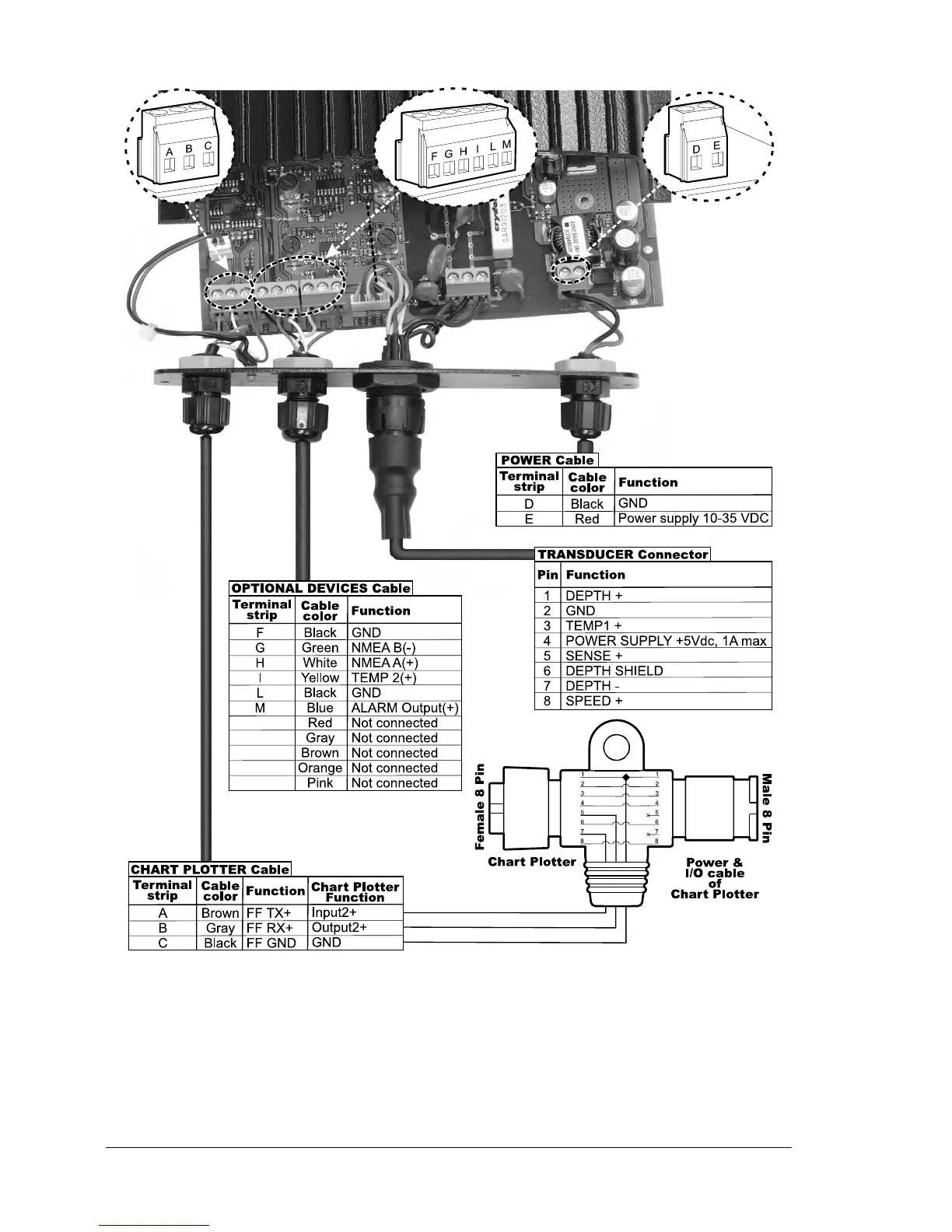

Fig. 4.5 - 50-200 FISH FINDER External Wiring
4.6 POWER SUPPLY WIRING DIAGRAM
We recommended the installation of a switch and a (5A) fuse in the positive DC
supply to the 50-200 FISH FINDER. The 50-200 FISH FINDER is active sending
the digital depth through the NMEA interface even when the power (chart plotter)
is turned off, thus the need for a switch.
