User Manual
6. Frequently Asked Questions
6.1 How can I disconnect the cables from the 50-200 FISH
FINDER in case I need to do so for the installation?
♦ Open the 50-200 FISH FINDER box unscrewing the four screws (see
the following figure).

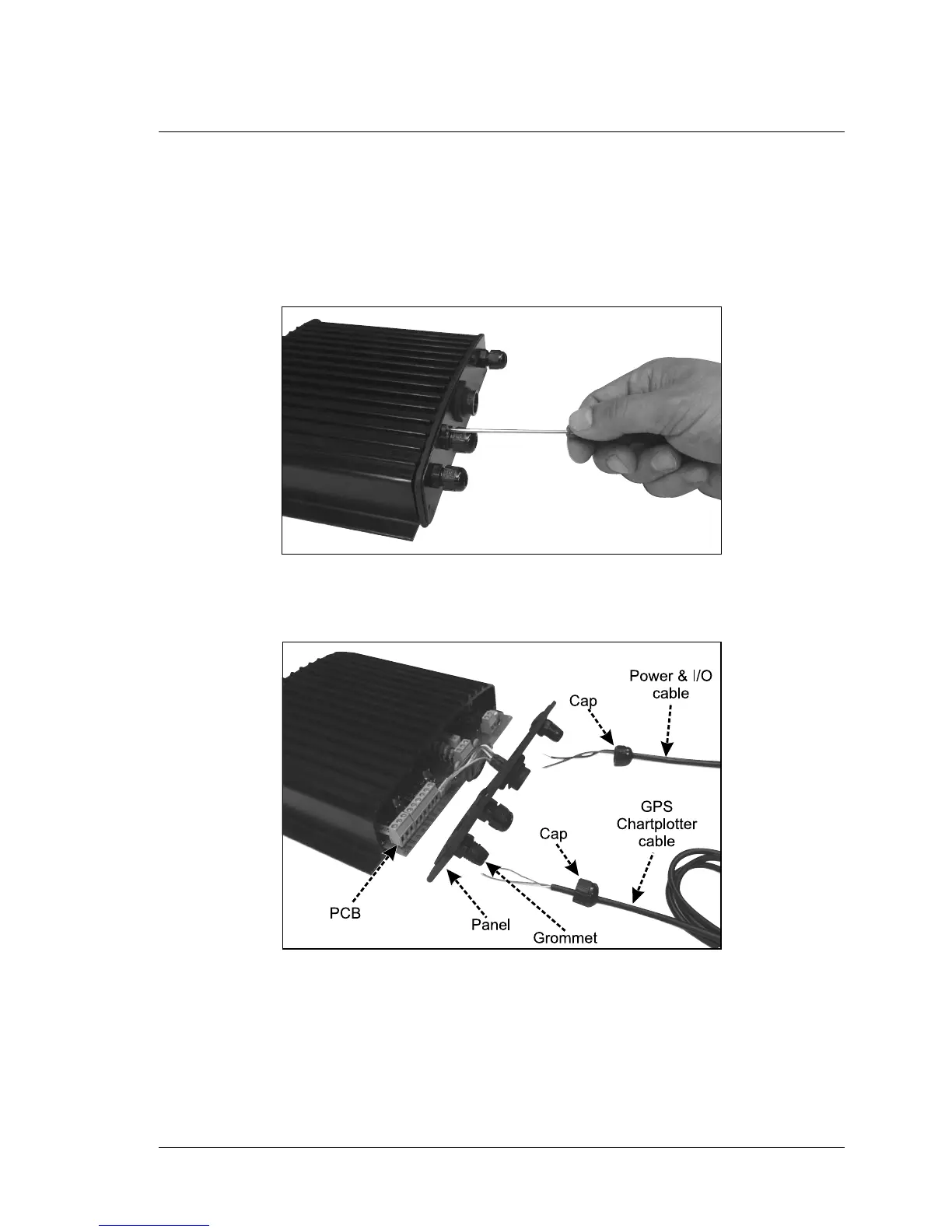

Fig. 6.1 - The 50-200 FISH FINDER (I)
♦ Once the screws are removed, pull out the panel and the Printed Circuit
Board (PCB). Unscrew the cables from the PCB.
Fig. 6.1a - The 50-200 FISH FINDER (II)
♦ Wire the cables as needed.
♦ Reconnect the cables to the PCB (see the Fig. 4.5 for reference).
♦ Push the panel towards the case (be sure to have well positioned the
rubber gasket). Close the 50-200 FISH FINDER box screwing the four
screws.
