24
CURSR
VERT
VIDEO
DOWN
DATA
RANGE
GAIN
PWR
FORWARD LOOKING SONAR
13.2 Ft
18
37
25
12.5
22.4 KTS
72.6 F
36:52.951 N
121:58.05W
Data Display

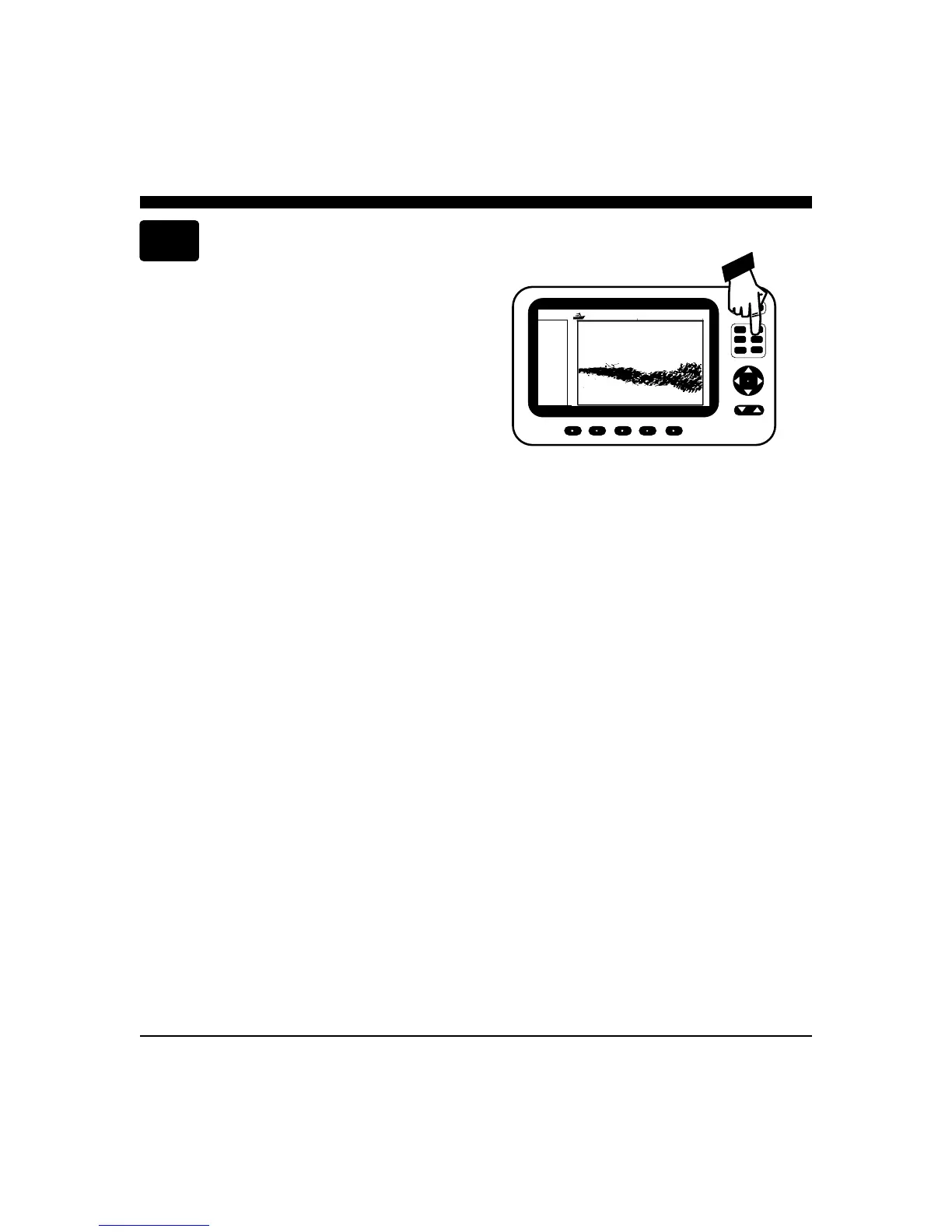

Press the button labeled DATA and the display will split to
show the current depth, speed*, temperature* and Lat/Lon
coordinates* in large digits on the left side of the display
(see drawing at right).
*In order for the Color Twinscope to show the speed,
temperature and Lat/Lon coordinates, the unit must be
connected to an NMEA source of this data - such as an
active or “smart” NMEA speed/temp transducer and/or a
GPS (for example, the Interphase Chart Master Series) or
other acceptable source of NMEA data. Please see NMEA
INPUTS on page 32 for more details.
