32
NMEA Inputs (Position, Speed & Temp)
The iScan V90 has two independent serial NMEA
input ports. One can be used to connect to a source of
lat/lon position and speed data (i.e., GPS), and the
other can be connected to a source of temperature and
speed data.

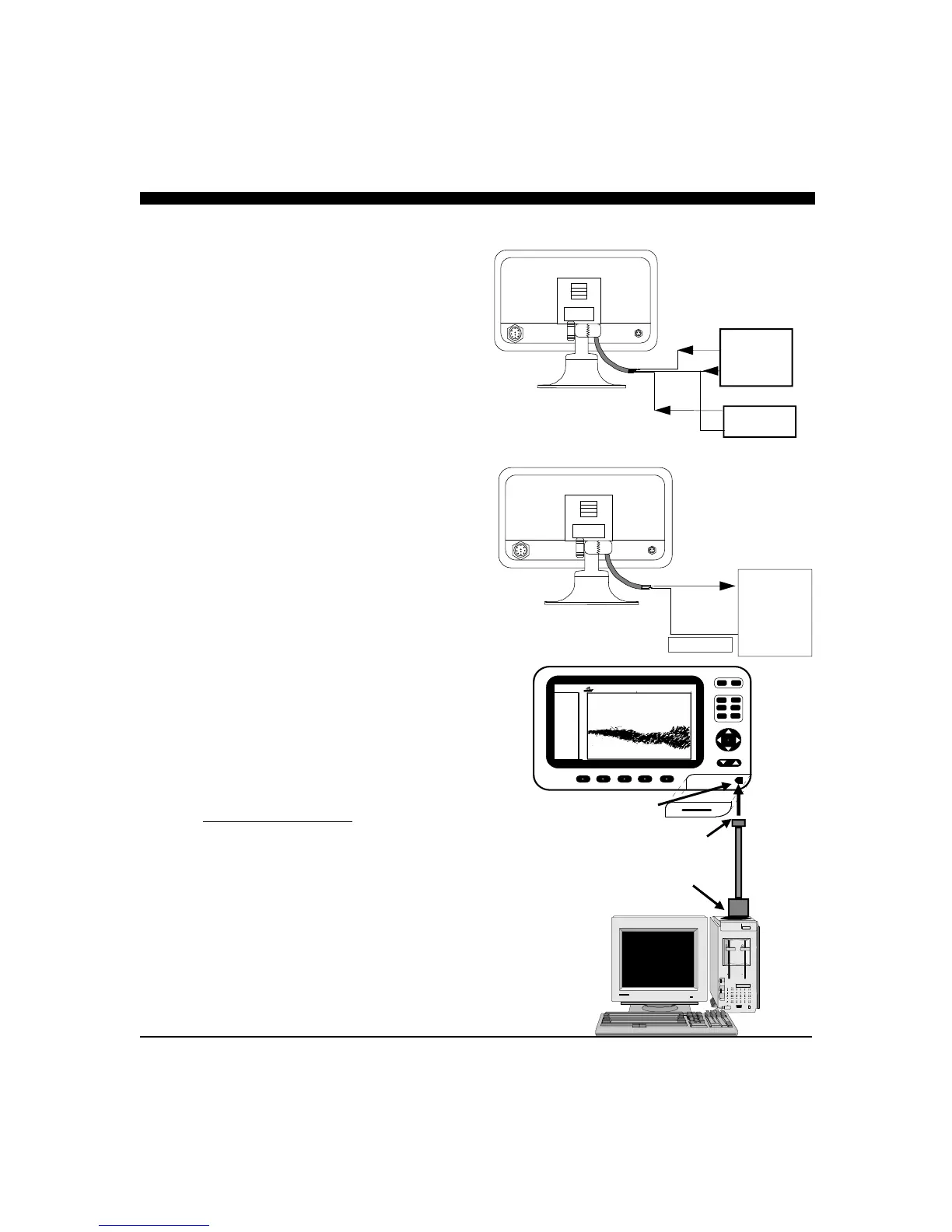

An external GPS should be connected between the
White(+) and Green(-) wires in the power and I/O
cable from the Quick Disconnect Mount, and the
Temperature and Speed source should be connected
between the Brown(+) and Green(-) wires.
The iScan V90 looks for the following NMEA
sentences for position, speed and temperature.
GLL ( Lat/Lon Postion)
VTG (Speed over the ground)
MTW (Temperature)
NMEA Depth Output
NMEA 0183 depth information is sent out on the
Yellow(+) and Green(-) wires. See the sketch at
right showing the wiring for the NMEA output port.
The iScan V90 sends out the following NMEA 0183
sentences with the digital depth data.
DPT, DBT
Software Upgrades
You can download software updates to your PC from our
website at www.interphase.tech.com and then upload the
new software to your iScan V90 by using the PC Software
Upgrade Cable (P/N# 04-1057-000). Check out the
Interphase Website for future iScan V90 software
upgrades. To get a PC Software Upgrade Cable, please call
Interphase at (831) 477-4944, extension 16.
Connect the Mini-USB connector to the port under the
rubber protective cover on the front bottom right corner of
the iScan V90. Connect the other end of the cable to the
USB port of your PC.
Note: Detailed upgrade instructions are available on
our website at www.interphase-tech.com.
Green(-)
White(+)
GPS
(Lat/Lon
& Speed)
TEMP
Brown(+)
Yellow (+)
Green (-)
NMEA
DEPTH
OUTPUT
6 Foot Mini-USB - B
to
USB - A cable
Part# 04-1057-000
CURSR
VERT V IDEO
DOWN DATA
RANGE
GAIN
PWR
FORWARD LOOKING SONAR
13.2 Ft
18
37
25
12.5
22.4 KTS
72.6 F
36:52.951 N
121:58.05W
Mini-USB Port
