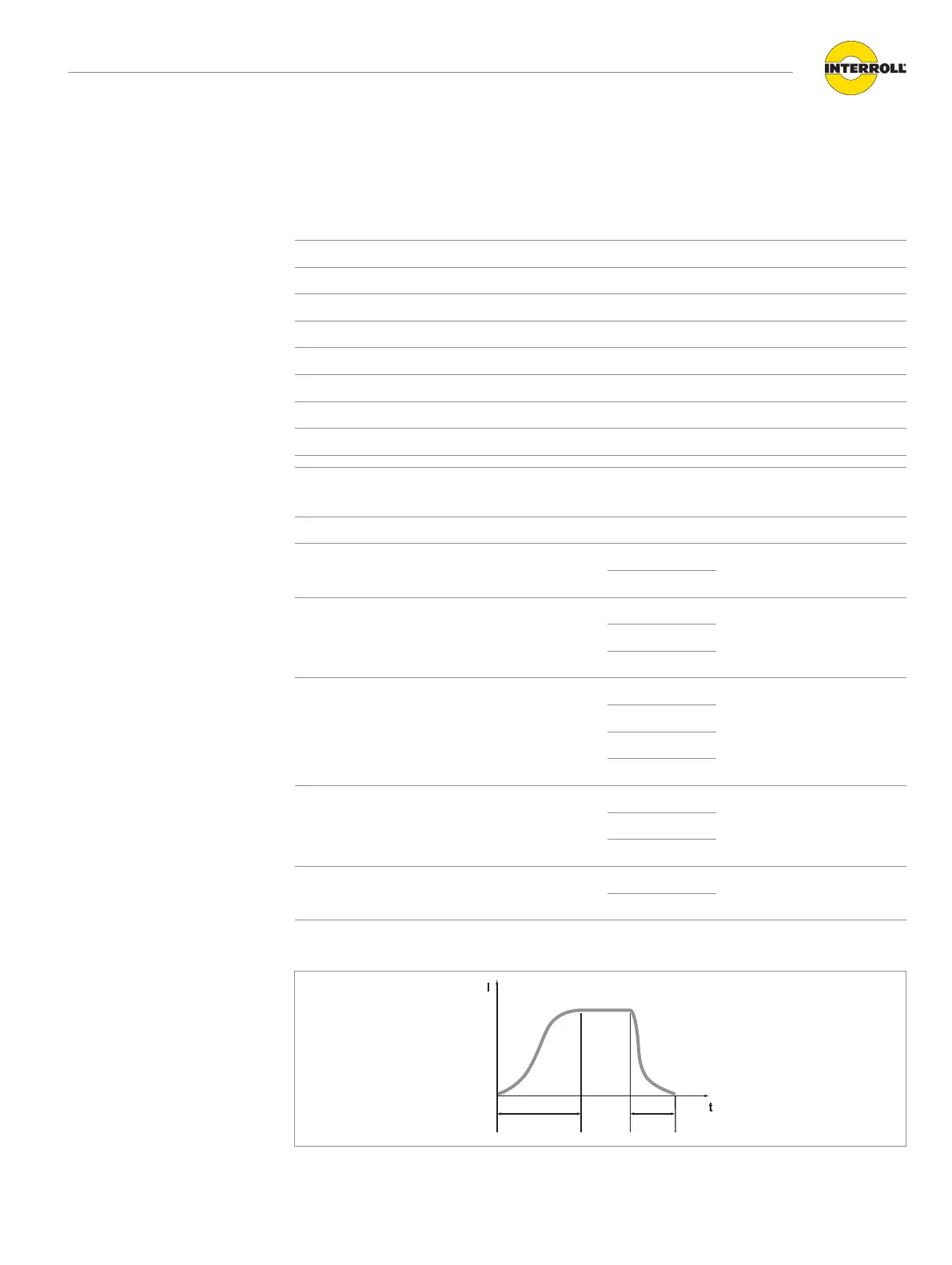

Interroll 138i User Manual

Interroll Drum motor series i, S, S/A, D
Version 4.1 (06/2015) en-US
Translation of original instruction manual
59
Options and accessories
Electromagnetic brake for the i-series
M Rated continuous torque of brake
J
BR
Brake moment of inertia
U
BR
Rated voltage
P
BR
Rated power
I
BR
Rated current
t
pick up
Brake response time
t
fall delay AC
Brake release switching time with AC-based switching
t
fall delay DC
Brake release switching time with DC-based switching
Motor Brake
size
M J
BR
P
BR
U
BR
I
BR
t
pick up
t
fall delay AC
t
fall delay DC
Nm kgcm
2
T V DC A ms ms ms
80i 2 0.7 0.04 12 24 0.50 20 80 13
104 0.12
113i 3 1.5 0.08 17 24 0.71 25 120 20
104 0.16
180 0.09
138i 4 2.9 0.23 24 24 1.00 30 200 23
104 0.23
180 0.13
207 0.12
165 /
217i*
5 5.95 0.68 33 24 1.38 40 260 46
104 0.32
207 0.16
217i 12 50 104 0.48 60 500 60
207 0.24
217i* See "
165i and 217i* 3-phase", page 23
t
pick up
t
fall
