When ordering parts, be sure to quote the model number and part numbers. No tools are
required for the assembly.
NOTE:
Drawings for illustration purpose only. May not reflect actual product. Not to scale.

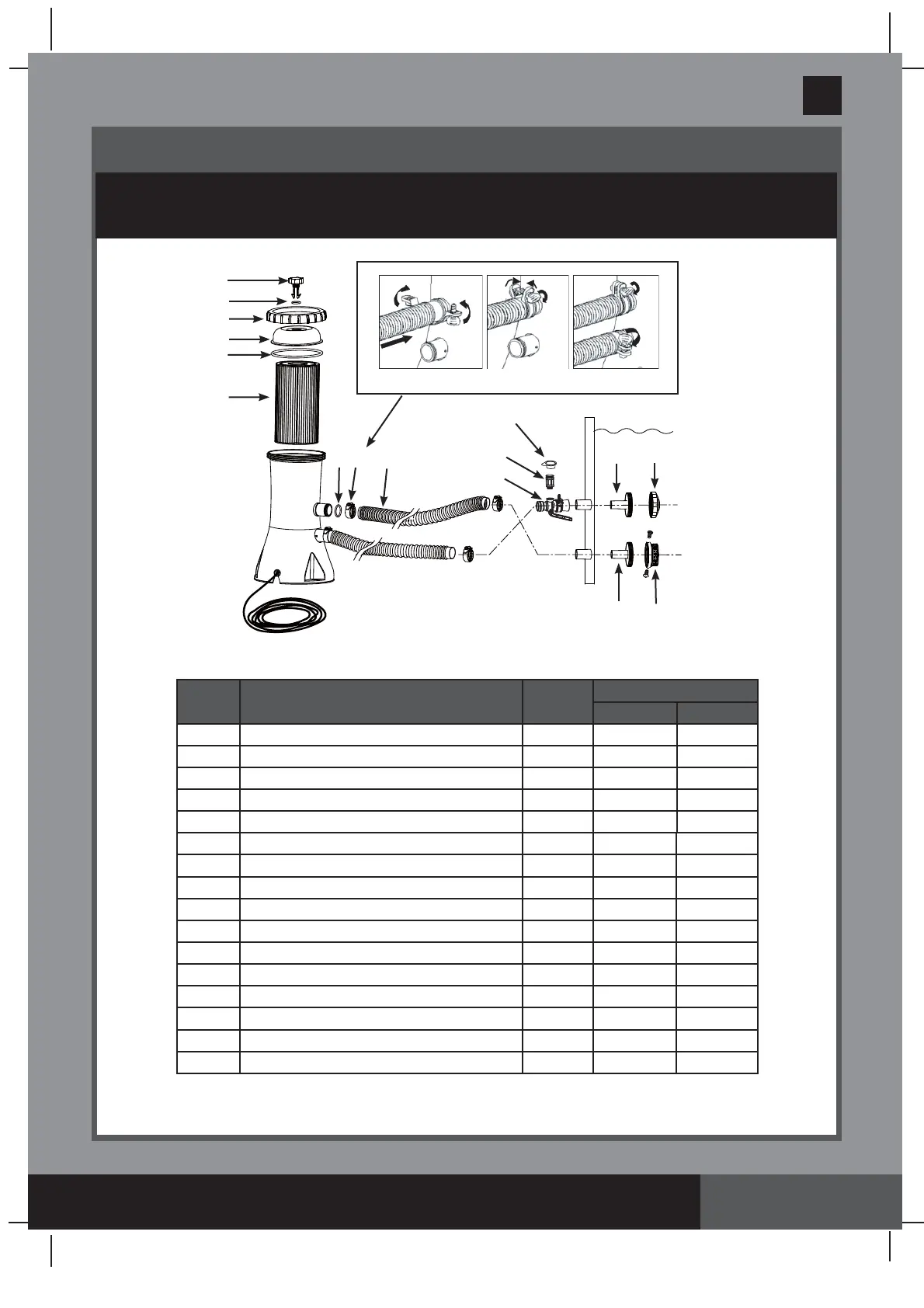

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF.
NO.
DESCRIPTION QTY.
SPARE PART NO.
Model 603 Model 637R
1 AIR RELEASE VALVE 1 10460 10460
2 VALVE O-RING 1 10264 10264
3 FILTER HOUSING COVER 1 11868 11868
4 COVER SEAL 1 10325 10325
5 FILTER CARTRIDGE 1 29000 29000
6 HOSE SEAL 2 10134 10134
7 HOSE CLAMP 4 11489 11489
8 HOSE 2 10116 10116
9 STRAINER CONNECTOR 1 11070 11070
10 POOL INLET JET NOZZLE 1 12364 12364
11 STRAINER GRID 1 11072 11072
12 THREADED FILTER HOUSING COLLAR 1 11869 11869
13 INLET STRAINER CONNECTOR 1 12365 12365
14 AIR JET VALVE 1 12363 12363
15 POOL INLET AIR ADAPTOR 1 12367 12368
16 AIR JET VALVE CAP 1 12373 12373
1
2
3
4
5
6
7
8
13
9
11
10
A B C
12
14
15
16
