(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 5
Product Information and Specifications
How the Chlorine is Generated
Common salt (sodium chloride) is made up of two elements, sodium and chloride. During the installation of
your Saltwater System/Filter Pump, a measured quantity of salt is dissolved in the pool water to make it
slightly salty. This pool water is passed through the Saltwater System’s electrolytic cell to produce chlorine
which is dissolved instantly in the water. The chlorine instantly starts to destroy bacteria, viruses, algae and
oxidizes other organic materials.
Key Saltwater System Parts:
• Power Supply
The power supply converts AC electrical current to a low voltage DC current. This is required by the
cell to perform the electrolysis that creates chlorine.
• Electrolytic Cell (with Titanium Plates)
The electrolytic cell contains bipolar titanium electrodes which perform the electrolysis and produce liquid
chlorine when energized with DC electricity. Chlorine is generated when pool water containing salt
passes through the cell. The chlorine production can be varied by changing the number of hours the
Saltwater System is operating each day. The Saltwater System has a built-in self cleaning cycle that
operates every two hours without interrupting chlorine production.
• Flow Sensor
The flow sensor protects the electrolytic cell and ensures there is adequate water flowing through the
cell. When the water flow drops below minimum flow rate, the electrolytic cell will automatically shut
down to protect the titanium plates. A safety buzzer will sound and the LED display panel will show a
signal code (see “LED Code Chart”) indicating the problem.
• Electronic Control Station
The electronic control station contains an LED display panel and a set of pushbuttons to program the
Saltwater System operating hours. It also monitors the different parameters such as salt level, water
flow and the electrolytic cell activity. If any deviation from the norm occurs then a buzzer will sound and
the LED display panel will show a signal code (see “LED Code Chart”) indicating the problem.
PRODUCT SPECIFICATIONS
Wattage: 450 W
Ideal Salt Level: 3000 ppm (parts per million)
Maximum Chlorine Output/hour: 24 grams/hour
Limited Warranty: 1 Year (see “Limited Warranty”)

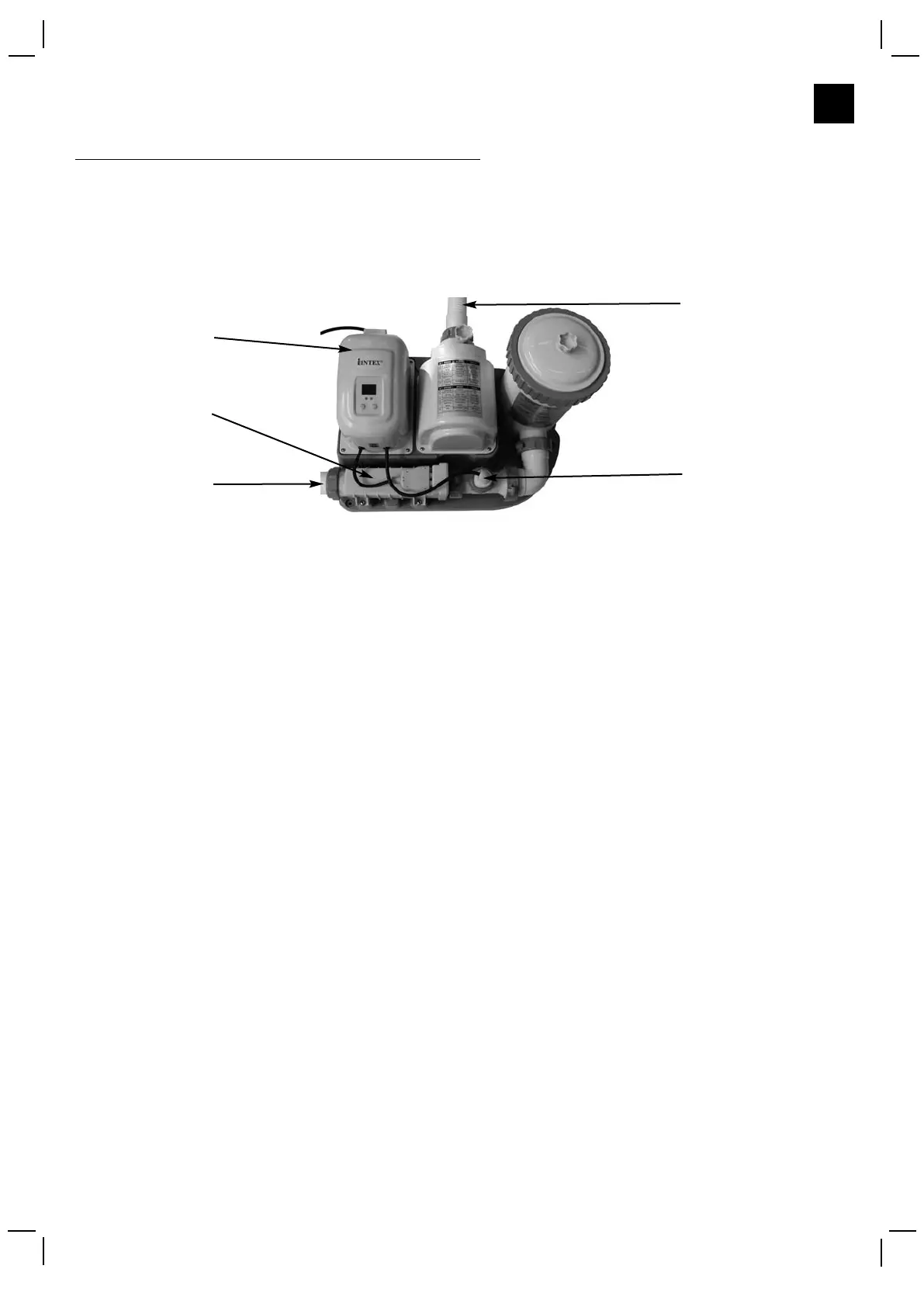

Water Outlet
Water Inlet
Flow Sensor
Electronic
Control Station
Electrolytic Cell
(with Titanium
Plates)
To Next Page
