(257GS) MODEL 602G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/25/2014
257
GS
SAVE THESE INSTRUCTIONS
English
Page 4

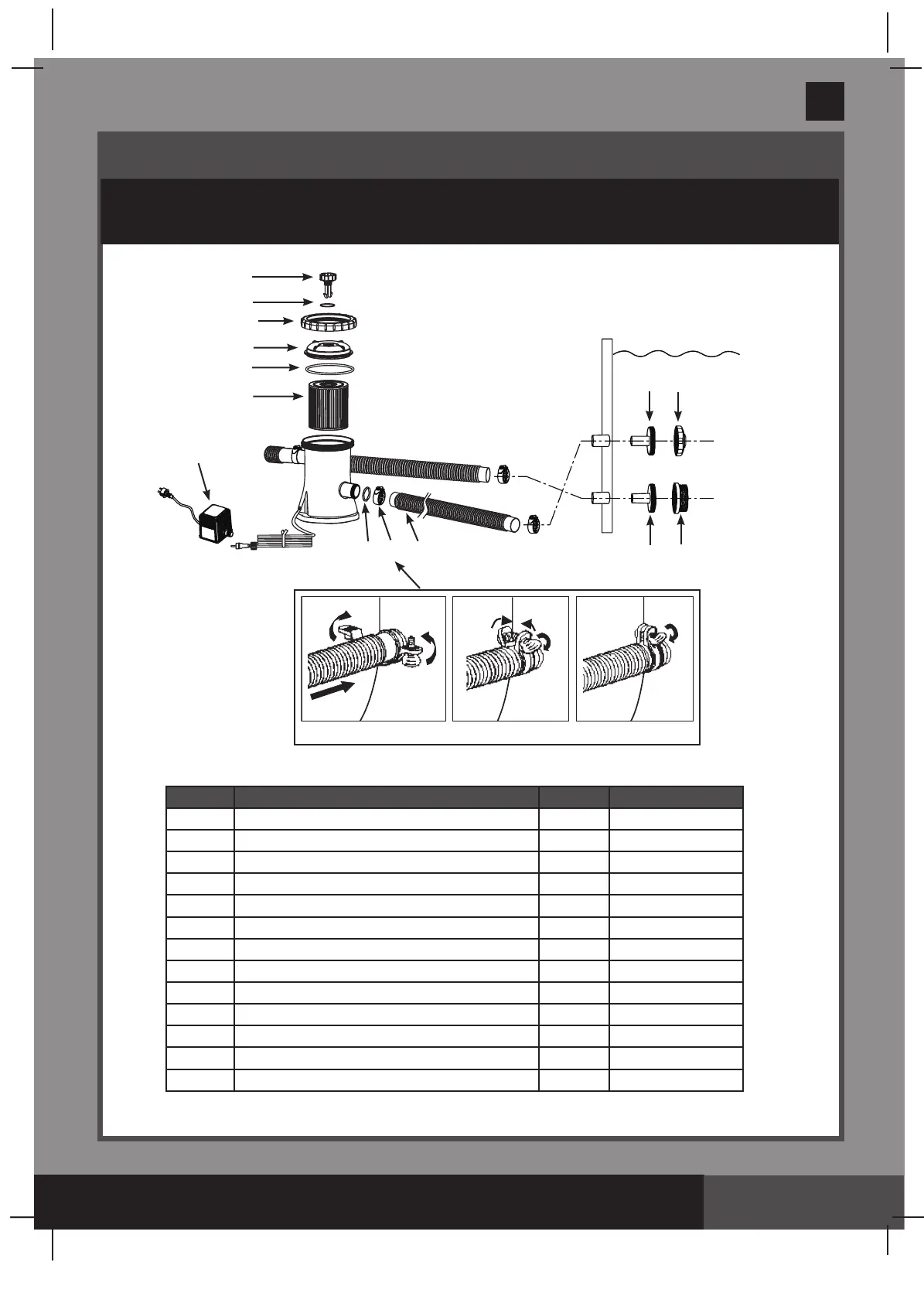

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO.
DESCRIPTION QTY. SPARE PART NO.
1 AIR RELEASE VALVE 1 10460
2 VALVE O-RING 1 10264
3
FILTER HOUSING COVER
1
11917
4 COVER SEAL 1
11919
5
FILTER CARTRIDGE (29007)
1
6 HOSE SEAL 2 10134
7 HOSE CLAMP 4 11489
8 HOSE 2
11916
9 STRAINER CONNECTOR 2 11070
10 POOL INLET NOZZLE 1 11071
11 STRAINER GRID 1 11072
12 THREADED FILTER HOUSING COLLAR 1
11918
13 TRANSFORMER 1 11920
1
2
3
4
5
6
7 8
9
9
11
10
ABC
12
13
