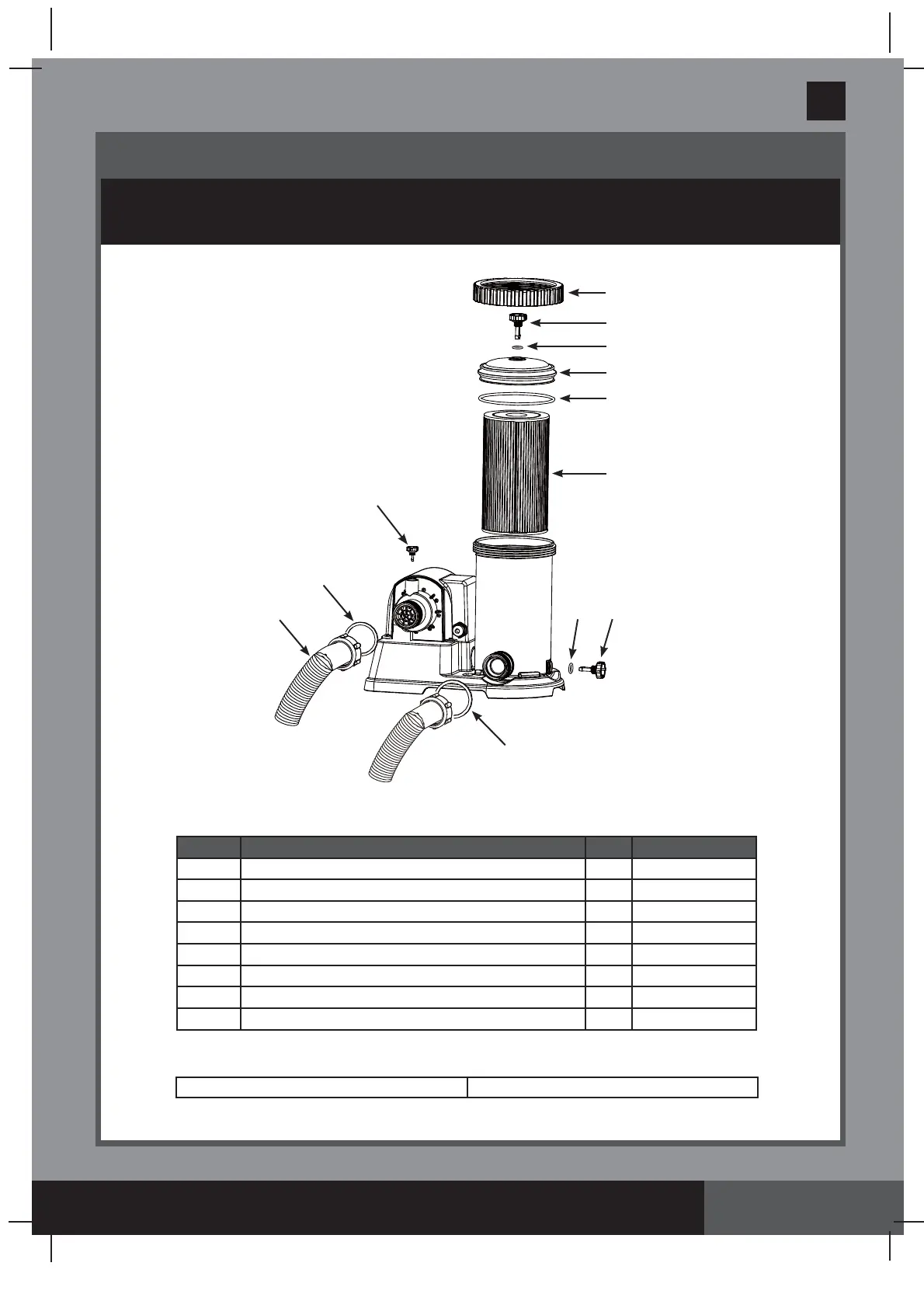

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
1
2
3
4
5
6
7
8
REF. NO.
DESCRIPTION
QTY.
SPARE PART NO.
1
2
2
1
1
1
1
2
THREADED FILTER HOUSING COLLAR
AIR RELEASE VALVE/SEDIMENT RELEASE VALVE
VALVE O-RING
FILTER HOUSING COVER
FILTER HOUSING O-RING
FILTER CARTRIDGE
AIR RELEASE VALVE B (WITH O-RING)
PUMP HOSE WITH NUTS
10491
10460
10264
10490
10492
29005
10725
11010
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
2
3
4
5
1
6
8
7
3
2
16
16
Type of fi lter medium Synthetic cartridge #29005
No tools are required for the assembly.
