(110) MODEL 634 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/06/2016
110A
SAVE THESE INSTRUCTIONS
English
Page 9
FILTER PUMP STATIONARY MOUNTING
165 mm
1
. The mounting holes are 6.4 mm in diameter and spaced 165 mm apart.
2
. Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.

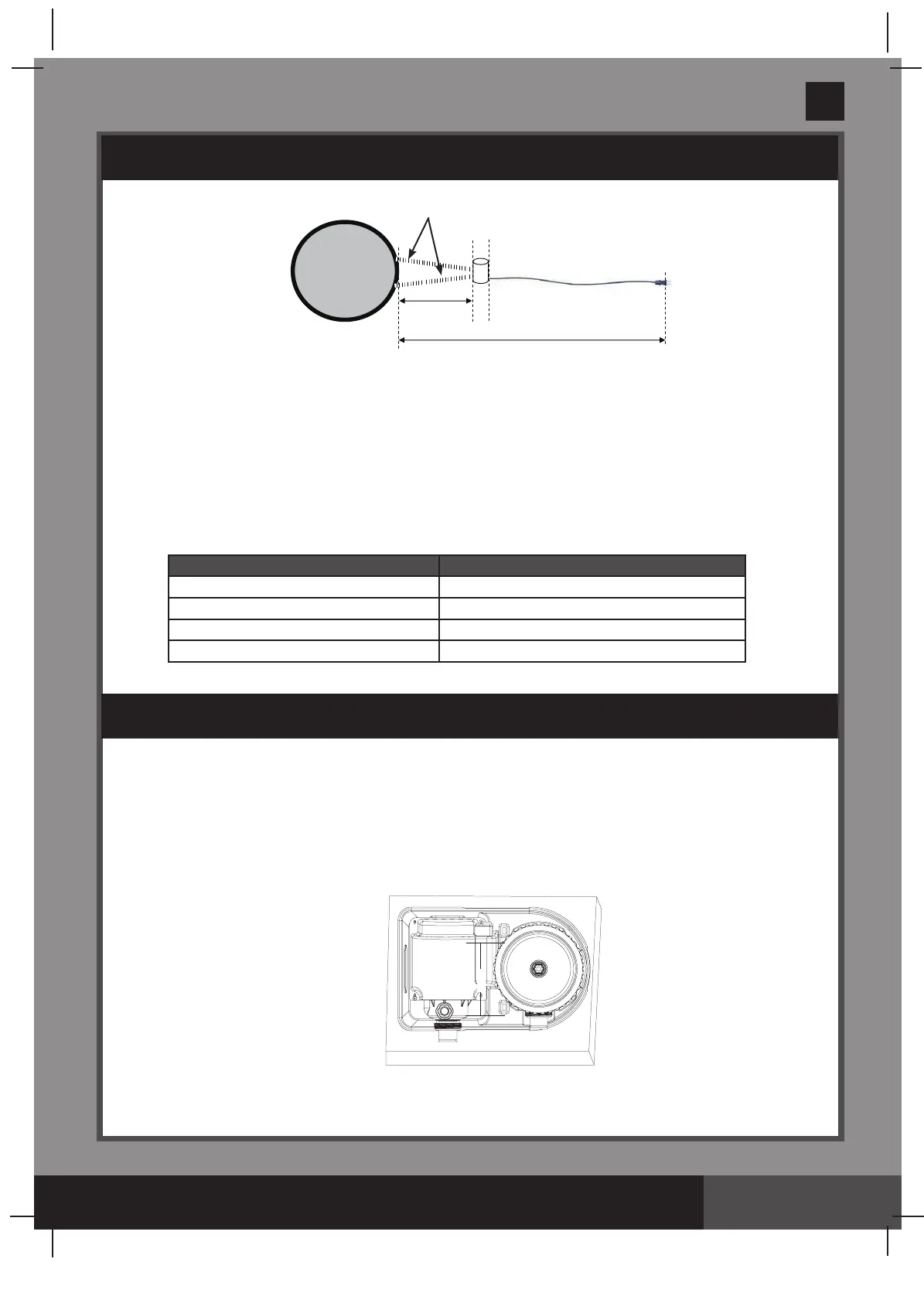

FILTER PUMP INSTALLATION DISTANCE
(Generic layout of an electrical device relative to a swimming pool. Illustration not to scale)
According to the International Standard, IEC 60364-7-702, on electrical installation of swimming
pools and other basins equipment, the following installation distances must be respected:
• The filter pump must be positioned more than 2m away from the pool walls.
• The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5 m away from the pool walls.
Check your local authorities to determine the appropriate standard and requirements for “electrical
installation of swimming pools and basins equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region
Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
>2m
>3.5m
POOL
hoses
Electrical
device
Some countries, especially in the European community, require the filter-pump to be secured to
the ground or to a base in a permanent upright position. Check your local authorities to determine
if there is a regulation in your area regarding above-the-ground swimming pool filter-pumps. If yes,
then the filter-pump can be mounted to a platform using the two holes located in the base. See
drawing below.
The filter-pump can be mounted on a cement base or onto a wooden platform to prevent accidental
falling over. Total assembly must exceed 18kg.
