1.
Make sure the filter pump is switched off. The switch is located on the motor housing.
2.
Connect the power cord to a GFCI protected electrical outlet.
3
.
Turn both plunger valve handles fully counter-clockwise until they stop. This opens the
valve, allowing water to flow into the filter pump.
4
. With water flowing into filter pump, the water pressure will allow the air trapped inside to
escape from the air release valves
(2 & 7).
When all the air has escaped water will flow
out of the valves
(2 & 7).
When this occurs gently finger tighten the valves
(2 & 7)
in a
clockwise direction.
5. To operate the filter pump on “TIMER” mode:
A. Set the timer dial to the desired operating hours. See operation time table.
See Fig. 10
B. Turn on the pump by pressing the switch to “ ” position, the filter pump is now
filtering the water and will stop after the operating hours are completed. The built-in
timer will now operate for the number of hours selected at the same time each day.
C. Operating hours can be re-adjusted if necessary. Follow step A – B.
To operate the filter pump manually (without the “TIMER” mode):
A. Turn on the pump by pressing the switch to “I” position, the filter pump is now filtering
the water.
B. To turn off the pump, press the switch to “O” position.
To prevent air lock, open the lower plunger valve (connected inlet hose) first and
then the upper plunger valve (connected outlet hose). Open the air release valves,
wait until water starts to flow out of the air release valves, close air release valves.
IMPORTANT
OPERATING INSTRUCTIONS
Risk of electric shock. Connect this product only to a grounding type
receptacle protected by a ground-fault circuit interrupter (GFCI) or residual
current device (RCD). Contact a qualified electrician if you cannot verify
that the receptacle is protected by a GFCI/RCD. Use a qualified electrician
to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a
portable residual current device (PRCD).
WARNING

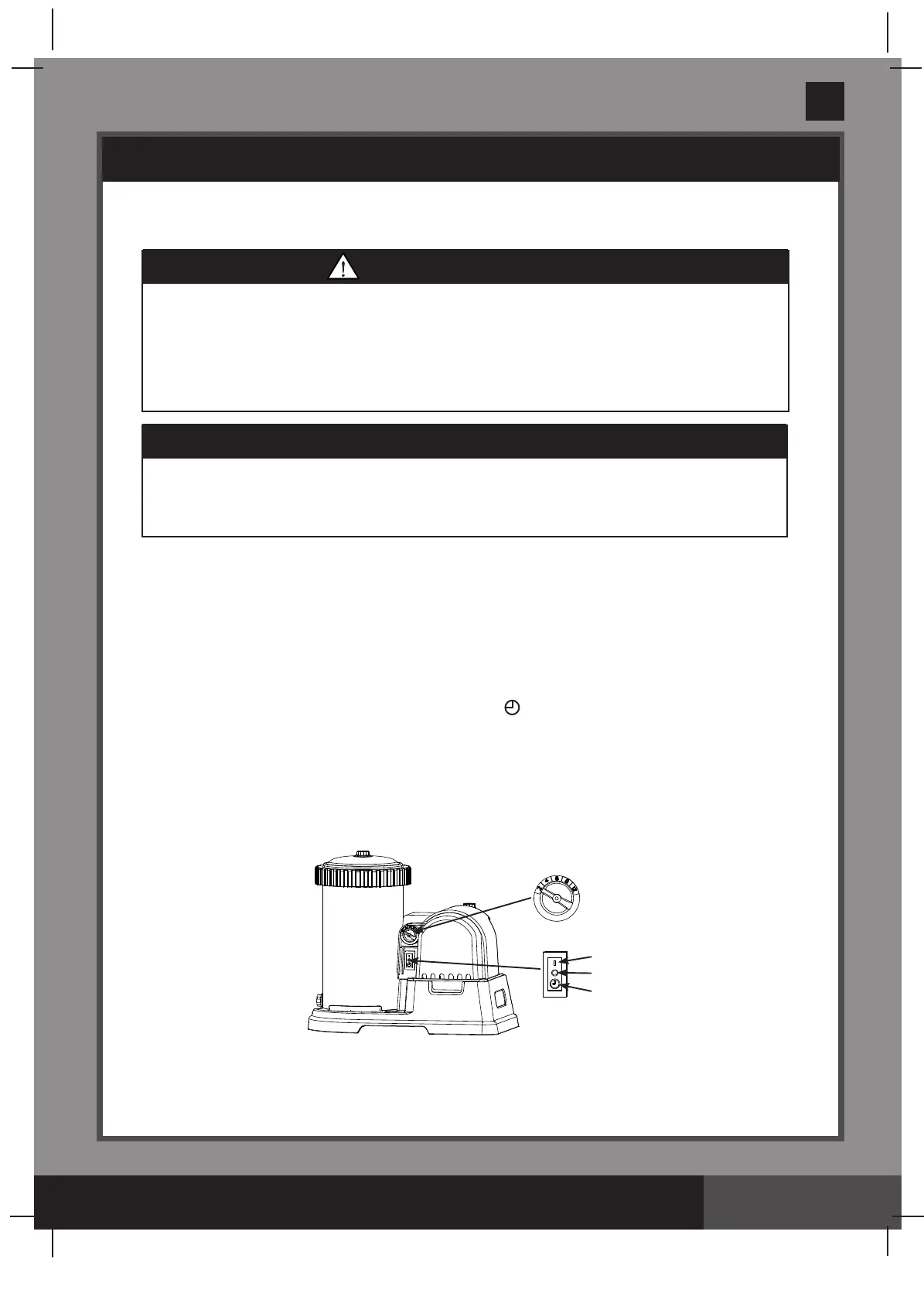

FIG 10
ON
OFF
TIMER
TIMER DIAL (HOURS)
6
.
Never put pool chemicals directly into the filter pump. This may damage the pump and void
the warranty.
