(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013
107
SAVE THESE INSTRUCTIONS
English
Page 7

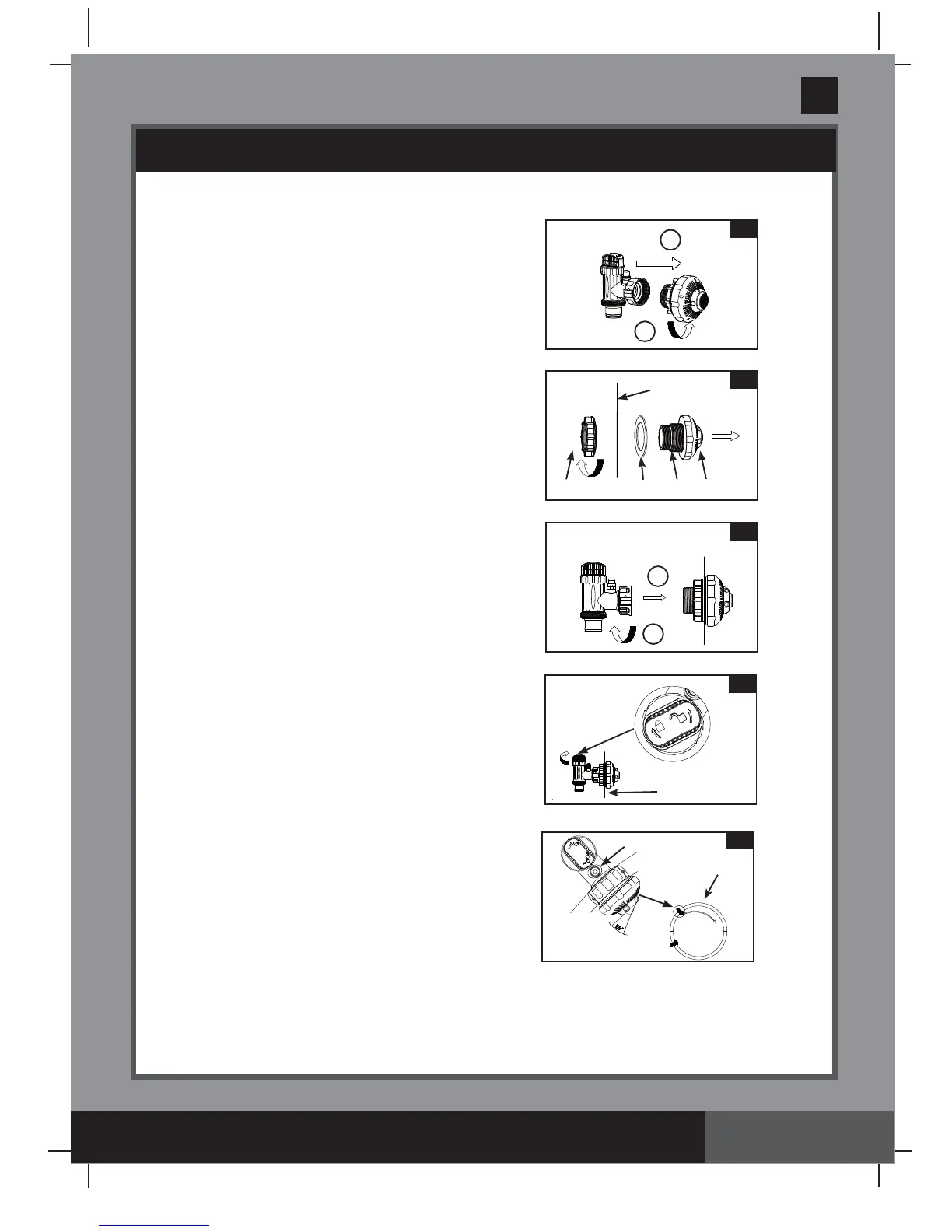

POOL INLET - NOZZLE & PLUNGER VALVE SETUP (optional)
1. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector (13) (see drawing 5).
Be careful not to lose the step rubber
washer (10). Place the plunger valve on
the ground in a safe place.
2. In a counter-clockwise motion unscrew the
strainer nut (11) from the threaded
connector (13). Leave the flat washer (12)
on the connector (13).
3. Install the nozzle and plunger valve at the
upper position of pool inlet. From the inside
of the pool liner insert the connector (13)
into one of the pre-cut holes with the
washer remaining on the connector to be
placed against the inside of the liner wall.
4. Before assembly, lubricate the threads with
a petroleum jelly. Then, with the flat side of
the strainer nut (11) facing the outside wall
of the liner in a clockwise motion screw the
strainer nut (11) back onto the threaded
connector (13) (see drawing 6).
5. Finger tighten the adjustable pool inlet
nozzle (14) and the strainer nut (11) onto
the threaded connector (13).
6. Grasp the plunger valve assembly. Make
sure the step washer (10) is in place.
7. In a clockwise motion screw the plunger
valve union back onto the threaded
connector (13) (see drawing 7).
8. In a clockwise motion turn the plunger
valve handle to close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during filling
of the pool (see drawing 8).
9. NOTE: Never cover the vacuum release
valve (15) unless it is damaged or leaking.
Replace the vacuum release valve
immediately.
10. Adjust the direction of the nozzle head
pointing away from the pool outlet for a
better circulation result (see
drawing 9).
11. The pool liner is now ready to be filled with
water. Consult the above-ground-pool
owner’s manual for the filling instructions.
5
2
1
7
1
2
6
12
13 14
INSIDE
LINER WALL
11
8
INSIDE
LINER WALL
9
WATER
FLOW
POOL
15
To Next Page
