PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:

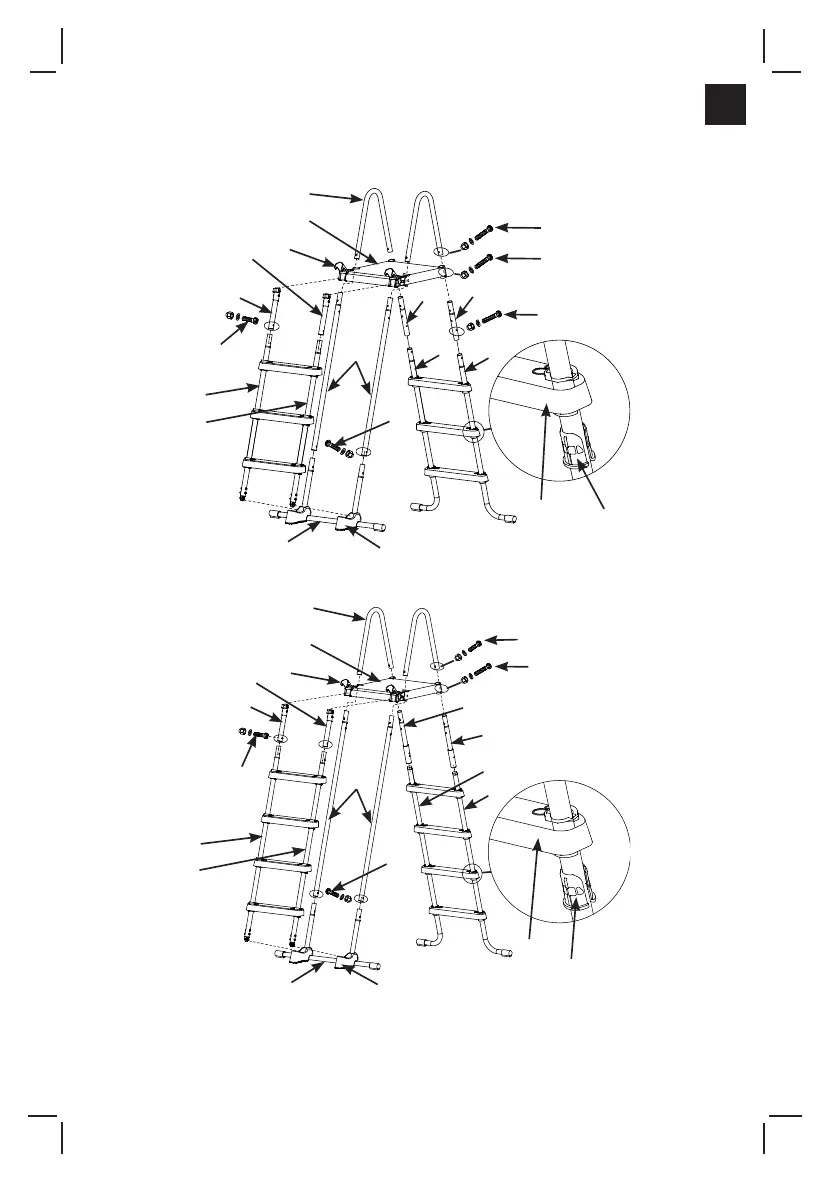

Drawings for illustration purpose only. Actual product may vary. Not to scale.
48" (122 cm) model
52” (132 cm) model
4 (M6*35)
5 (M6*40)
2
1
3
12
13
4 (M6*35)
4
(M6*35)
14
15
10
11
8
9
6
7
17
18
16
4 (M6*35)
2
1
4 (M6*35)
5 (M6*40)
10
17
18
7
9
6
8
11
16
3
12
4 (M6*35)
13
14
15
4
(M6*35)
