4. In a clockwise motion screw filter housing nut (17) onto the motor water inlet

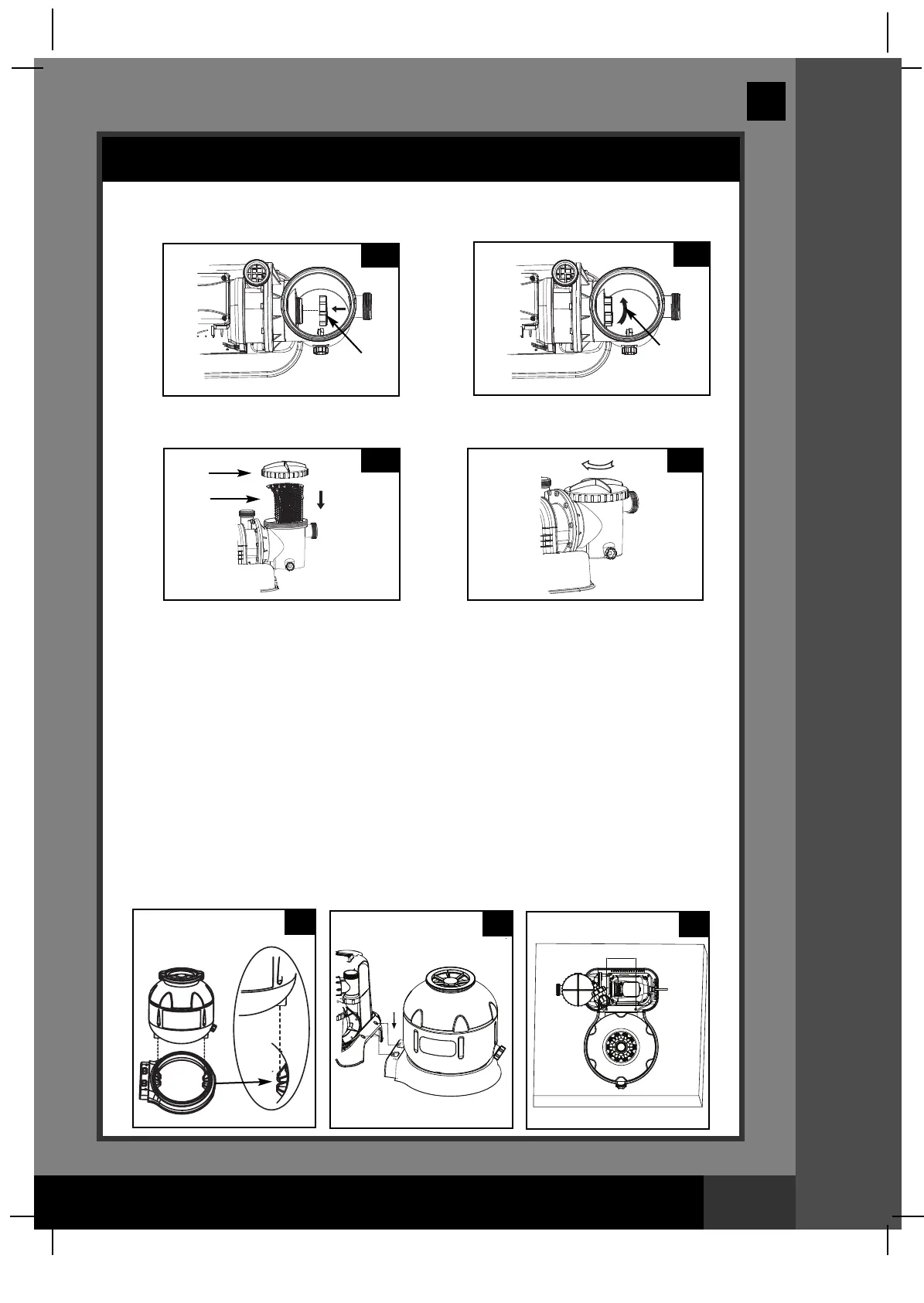

(See drawings 12.1 & 12.2).
5. Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing
(See drawings 13.1 & 13.2).
SETUP INSTRUCTIONS (continued)
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
Sand tank installation:
1. Place the tank support base at the selected location.
2. Place the tank on the tank support base (See drawing 14.1).
3. Connect the motor pre-filtering assembly unit to the tank support base (See
drawing 14.2). NOTE: Ensure the pre-filter housing water inlet hose connection
is facing towards the pool.
IMPORTANT: Some countries, especially in the European community,
require the product to be secured to the ground or to a base in a
permanent upright position. Check your local authorities to determine if
there is a regulation in your area regarding above-the-ground swimming
pool filter-pumps. If yes, then the product can be mounted to a platform
using the two holes located in the base. See drawing 14.3.
The product can be mounted on a cement base or onto a wooden
platform to prevent accidental falling over.
• The mounting holes are 6.4 mm in diameter and spaced 160 mm
apart.
• Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
