163
SAVE THESE INSTRUCTIONS
Page 14
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/18/2010
English

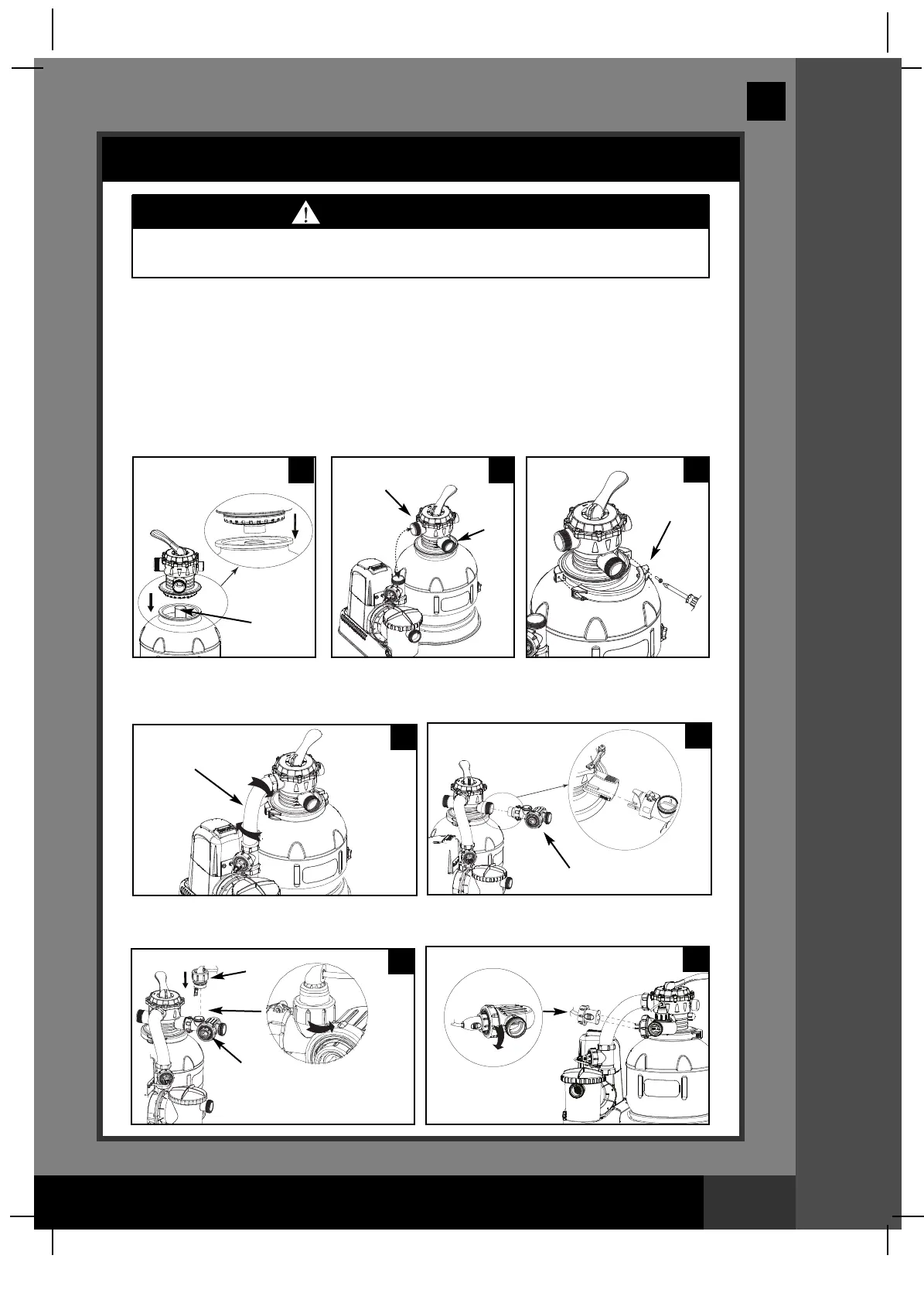

6-way valve installation:
1. Lower the 6-way valve over the tank slowly, and ensure the bypass pipe protruding
underneath the 6-way valve fits securely into the center pipe hub (8) top opening (see
drawing 19).
I
MPORTANT: There are three hose connection ports on the 6-way valve, ensure
the outlet connection (from filter to the pool) on the valve is facing towards the
pool, and the inlet connection (from motor to valve) is aligned with the motor
outlet (see drawing 20).
2. Remove the clamp bolt, and install the clamp around the tank and 6-way valve flanges,
then replace the clamp bolt and use a phillips screwdriver (not included) to tighten it.
(see drawing 21).
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SETUP INSTRUCTIONS (continued)
WARNING
Improper tank valve and clamp assembly could cause the valve and clamp
to blow off and cause serious injury, property damage or death.
19
20
WATER
INLET
WATER
OUTLET
21
3. Connect the sand filter interconnecting hose (13) between the 6-way valve inlet and
motor outlet, and insert the electrolytic cell (22) into the 6-way valve outlet. Hand tighten
them securely (see drawings 22 and 23).
22
23
4. Screw and tighten the flow sensor (21) to the electrolytic cell (22), then plug in the
electrolytic cell line cord and tighten the nut (see drawings 24 and 25).
24
25
8
13
21
22
22
6
To Next Page
