Intex PureSpa SB-H20 Repair Guide

Page 15
NO.
ITEM
Part #
J
Water Inlet for Tub
12601
K
Water Outlet for Tub
12915
L
Air Inlet nut
12914
M
Electrical Cord with RCD
11998
N
Water Pump (Filter)
12778

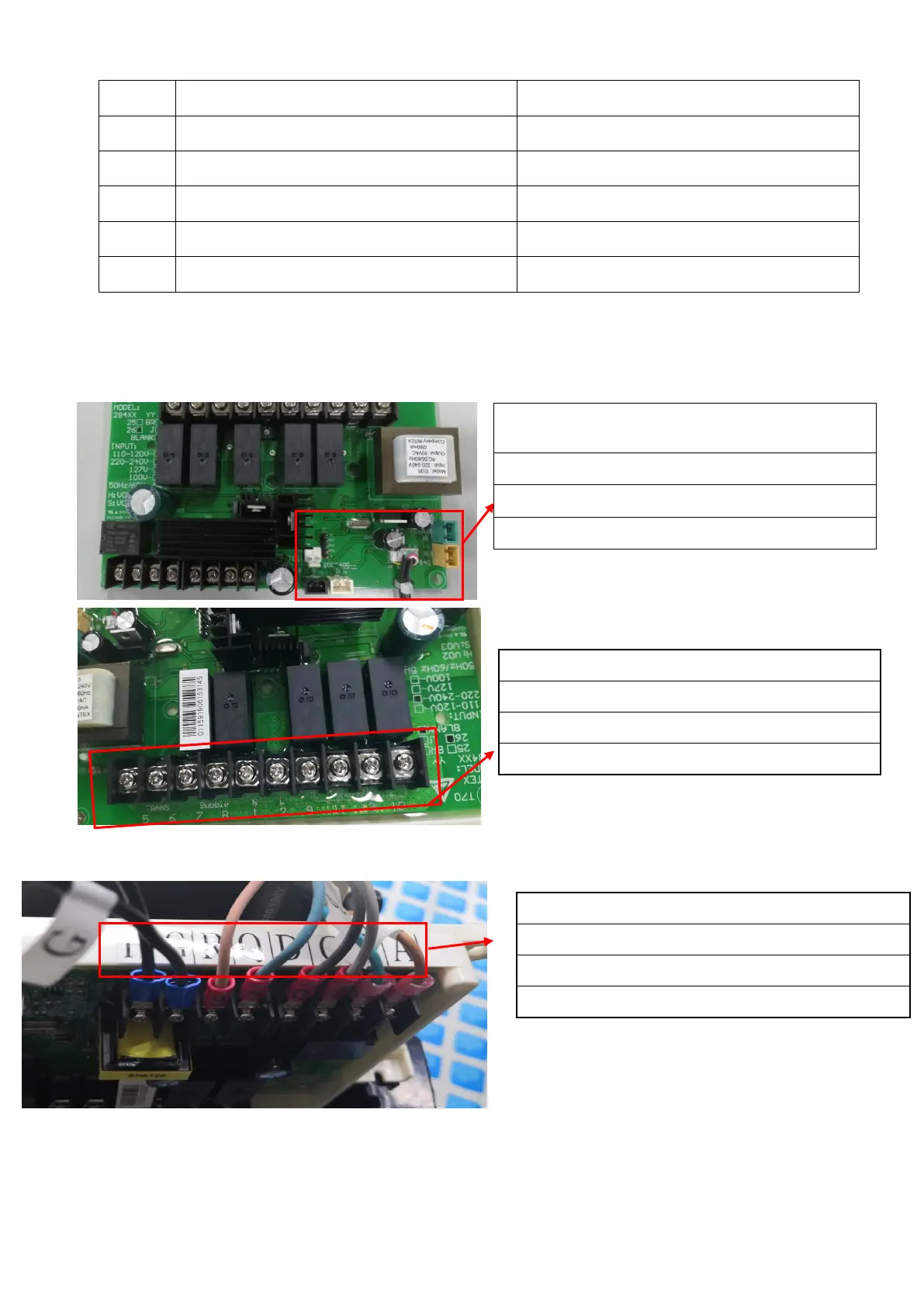

Internal Parts
Main circuit Board
H G R Q D C B A
Black:"50C 黑" - Water Temperature
Sensor
White:"20~40C 白" - Water Temperature
Green: "FLOW 绿" - Flow Sensor one (E90)
Yellow:"84 C 黄" - Dry Fire Protection (E97)
1 & 2 - Main power supply
5 & 6 - Transformer power input
7 & 8 - Air blower power
9 to 12 - Heating element power
A & B - Filter pump power input
C & D - Transformer output for Filter Pump
Q & R – Input for control/Output of rectifier
G & H - Hardwater coil

Intex PureSpa SB-H20 Specifications

General

Control Panel	Digital
Air Jets	120
Brand	Intex
Type	Inflatable Hot Tub
Digital Control Panel	Yes
Seating Capacity	4 person
Water Capacity	210 gallons
Bubble Jets	120
Heating System	Yes
Cover	Included
Height	28 inches
Model	SB-H20
