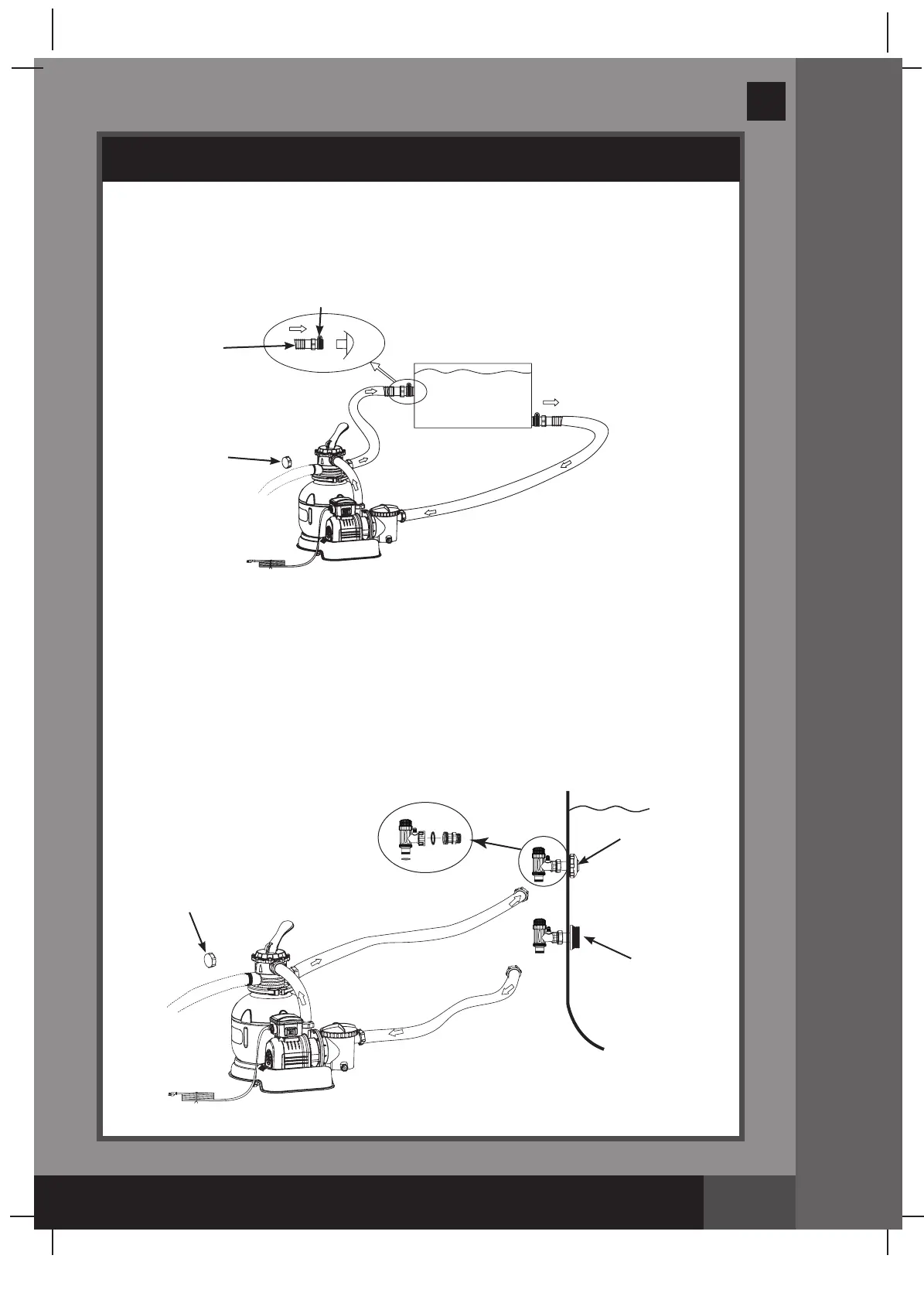

SETUP INSTRUCTIONS
SAND FILTER PUMP HOSE CONNECTION SETUP (continued)
For INTEX pool size 16' and below:
1. In a counter-clockwise motion unscrew plunger valve union from the threaded
strainer connector (26). Be careful not to lose the step rubber washer (23).
2. Grasptheplungervalveassembly.Makesurethestepwasher(23) is in place.
Connect adaptor B (28) to plunger valve union.
3. Remove wall plug and then insert the strainer (29 & 31) into the lower position
of protruding hose connection, and the nozzle (29 & 30) into the upper position
of protruding hose connection. Adaptor B (28) fits over the strainer
connection (29) inserted into the connection. Tighten securely.
4. Remove the drain cap (3) before attaching the drain/waste hose or pipe.
For NON-INTEX pool:
Connect the hose (12) to the pool inlet/outlet connection with a large hose clamp.
Tighten securely. Remove the drain cap (3) before attaching the drain/waste
hose or pipe.
POOL
LARGE HOSE
CLAMP
POOL
12
3
29 & 30
29 & 31
3
