354A
SAVE THESE INSTRUCTIONS
(354IO) MODEL SF40220 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/30/2021
English
Page 8
SETUP INSTRUCTIONS
(
continued
)
WARNING
Improper tank valve and clamp assembly could cause the valve and clamp to
blow off and cause serious injury, property damage or death.

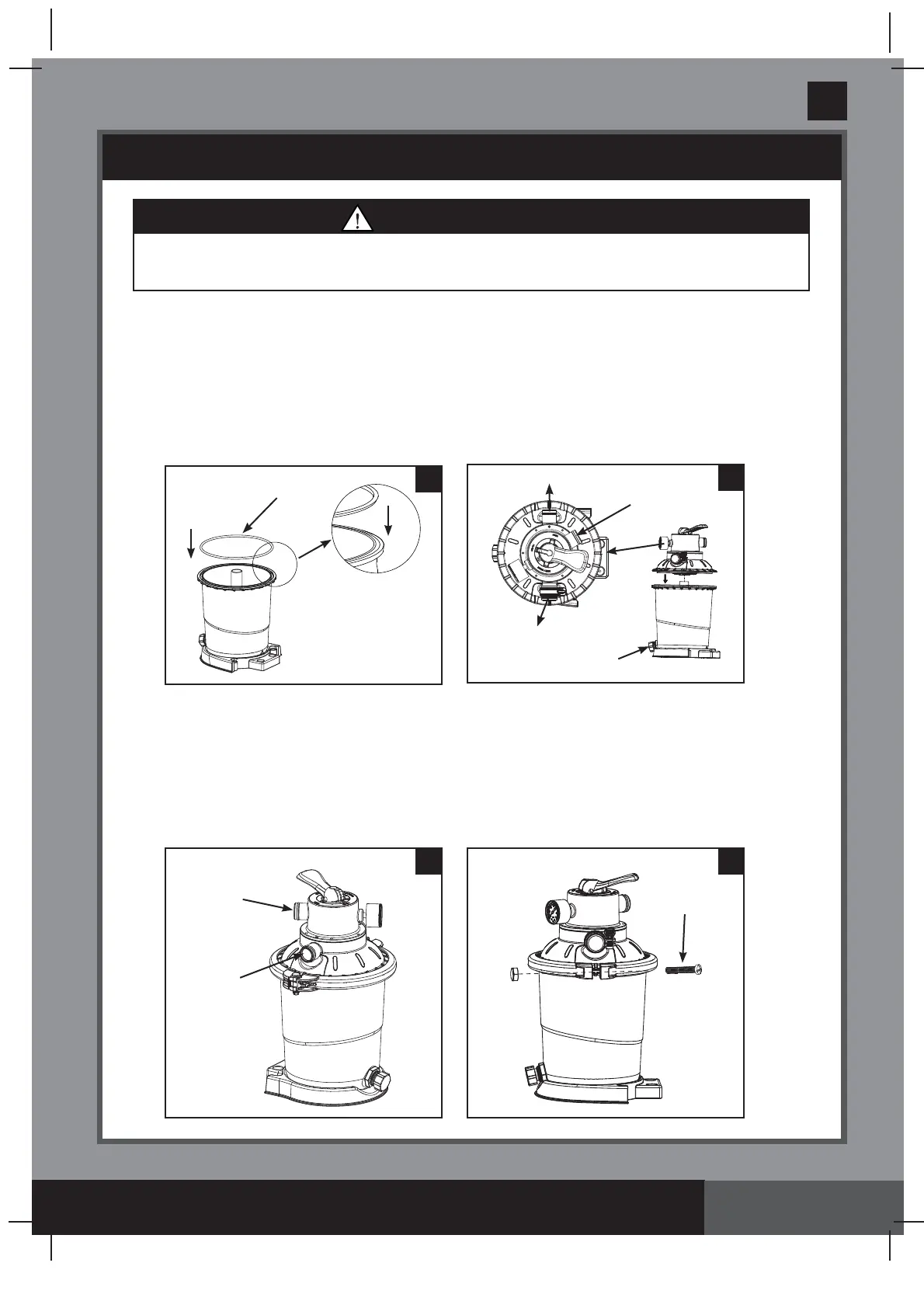

4-way valve installation:
1.
Make sure the tank o-ring
(5)
is in place
(see drawing 7)
.
NOTE:
Ensure the tank o-ring is
free of sand or debris.
2.
Lower the 4-way valve cover over the tank slowly, and ensure the bypass pipe protruding
underneath the 4-way valve cover fits securely into the center pipe
(7)
top opening
(see
drawing 8)
. Make sure the tank o-ring is securely fitted between the top edge of the tank
groove and the 4-way valve cover edge.
IMPORTANT:
Ensure the 4-way valve cover ridge
is aligned with the groove on the tank rim.
IMPORTANT: There are three hose connection ports on the 4-way valve, ensure the
outlet connection (from filter to the pool) on the valve is facing towards the pool
(see drawing 9).
3.
Remove the screw, and install the clamp around the tank and 4-way valve flanges,
then replace the screw and use a phillips screwdriver (not included) to tighten it
(see
drawings 9 & 10)
.
7
5
8
WATER INLET
WATER OUTLET
TO DRAIN
DRAIN VALVE
CAP
10
17
9
WATER
OUTLET
WATER
INLET
To Next Page
