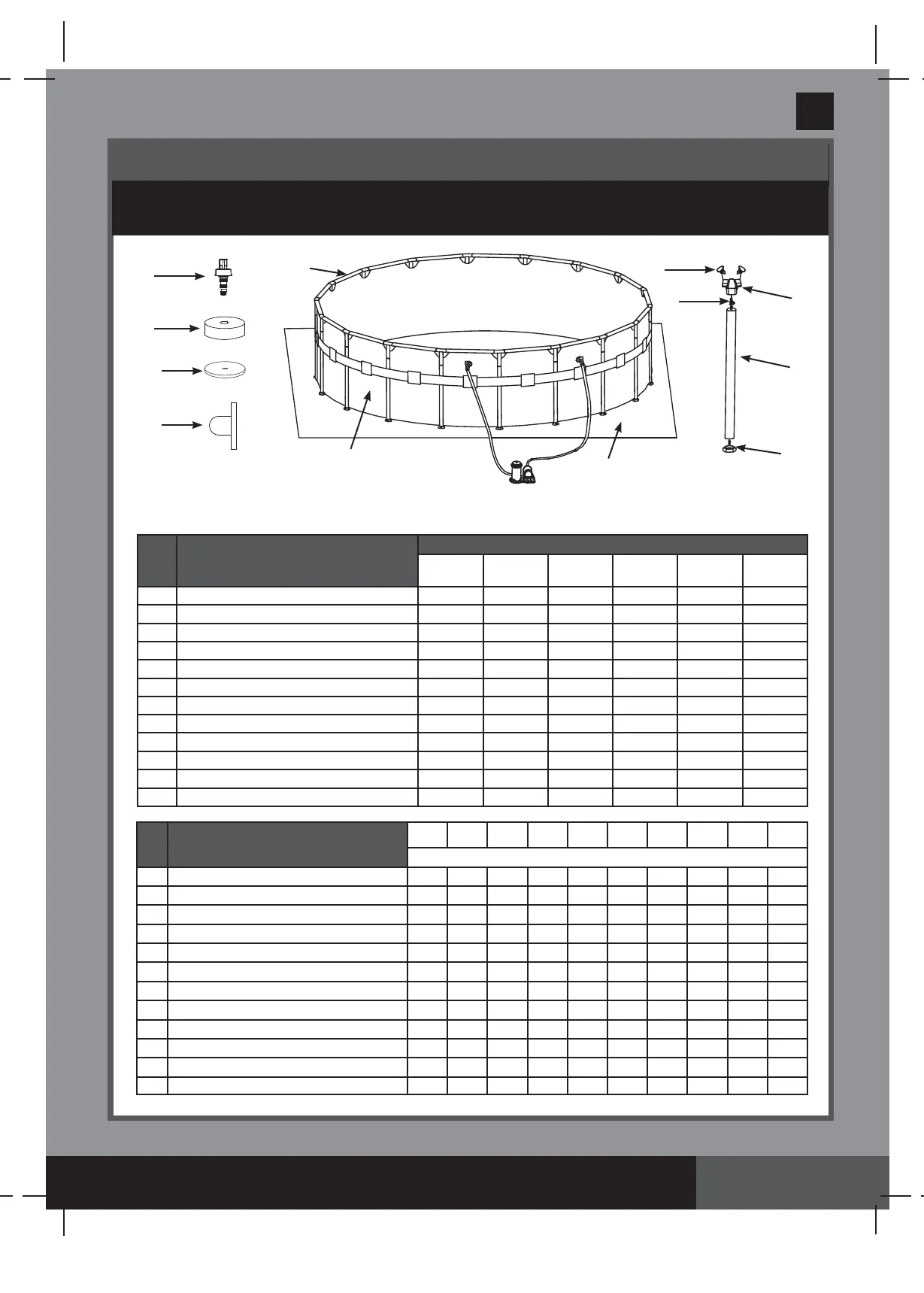

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
14' (427 cm), 16' (488 cm), 18' (549 cm), 20’ (610 cm), 22' (671 cm) & 24' (732 cm) models
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF
NO.
DESCRIPTION
14’ x 42” (427
cm x 107cm)
14’ x 48” (427
cm x 122cm)
16’ x 48” (488
cm x 122cm)
16’ x 52” (488
cm x 132cm)
18’ x 48” (549
cm x 122cm)
18’ x 52” (549
cm x 132cm)
20’ x 48” (610
cm x 122cm)
20’ x 52” (610
cm x 132cm)
22’ x 52” (671
cm x 132cm)
24’ x 52” (732
cm x 132cm)
SPARE PART NO.
1
T - JOINT
12423A 12423A 12427A 12427A 12427A 12427A 12427A 12427A 12427A 12427A
2
VERTICAL LEG
12425A 12426A 12429A 12430A 12429A 12430A 12429A 12430A 12430A 12430A
3
LEG CAP
11361 11361 11453 11453 11453 11453 11453 11453 11453 11453
4
HORIZONTAL BEAM
12424A 12424A 12428A 12428A 12428A 12428A 12428A 12428A 12428A 12428A
5
POOL LINER (DRAIN VALVE CAP INCLUDED)
12440A 12441A 12434A 12547A 12435A 12436A 12443A 12437A 12438A 12439A
6
VERTICAL LEG SPRING PIN
12432A 12432A 12432A 12432A 12432A 12432A 12432A 12432A 12432A 12432A
7
GROUND CLOTH
10080 10080 18927 18927 18933 18933 11290 11290 11510 18935
8
DRAIN CONNECTOR
10201 10201 10201 10201 10201 10201 10201 10201 10201 10201
9
DRAIN VALVE CAP
10649 11044 11044 11044 11044 11044 11044 11044 11044 11044
10
POOL COVER
11054 11054 10754 10754 18937 18937 11289 11289 11509 18929
11
STRAINER HOLE PLUG (WITH 1 EXTRA)
10127 10127
--------
12
T - JOINT SPRING PIN
12433A 12433A 12431A 12431A 12431A 12431A 12431A 12431A 12431A 12431A
REF
NO.
DESCRIPTION
POOL SIZE &
QUANTITIES
14’
(427cm)
16’
(488cm)
18’
(549cm)
20’
(610cm)
22’
(671cm)
24’
(732cm)
1
T - JOINT
14 16 18 20 22 24
2
VERTICAL LEG
14 16 18 20 22 24
3
LEG CAP
14 16 18 20 22 24
4
HORIZONTAL BEAM
14 16 18 20 22 24
5
POOL LINER (DRAIN VALVE CAP INCLUDED)
111111
6
VERTICAL LEG SPRING PIN
14 16 18 20 22 24
7
GROUND CLOTH
111111
8
DRAIN CONNECTOR
111111
9
DRAIN VALVE CAP
112222
10
POOL COVER
111111
11
STRAINER HOLE PLUG (WITH 1 EXTRA)
3-----
12
T - JOINT SPRING PIN
28 32 36 40 44 48
+
1
2
3
4
5
7
12
6
8
9
10
11
