SAVE THESE INSTRUCTIONS
(341GS) MODEL SF90220RC-1 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/29/2021
English
Page 9
PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
The sand filter removes suspended particles but does not sanitize your pool. Pool
chemistry is a specialized area and you should consult your local pool service specialist
for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture, flooding and freezing
temperature.
• Provide adequate access, space and lighting for routine maintenance.
• Pump motor requires free circulation of air for cooling. Do not install the pump in a
damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
The appliance is intended only for household use.
Leaf trap setup:
1.
Make sure the pump o-ring
(6)
is in place. In a clockwise motion screw the leaf trap
(19)
onto the motor inlet

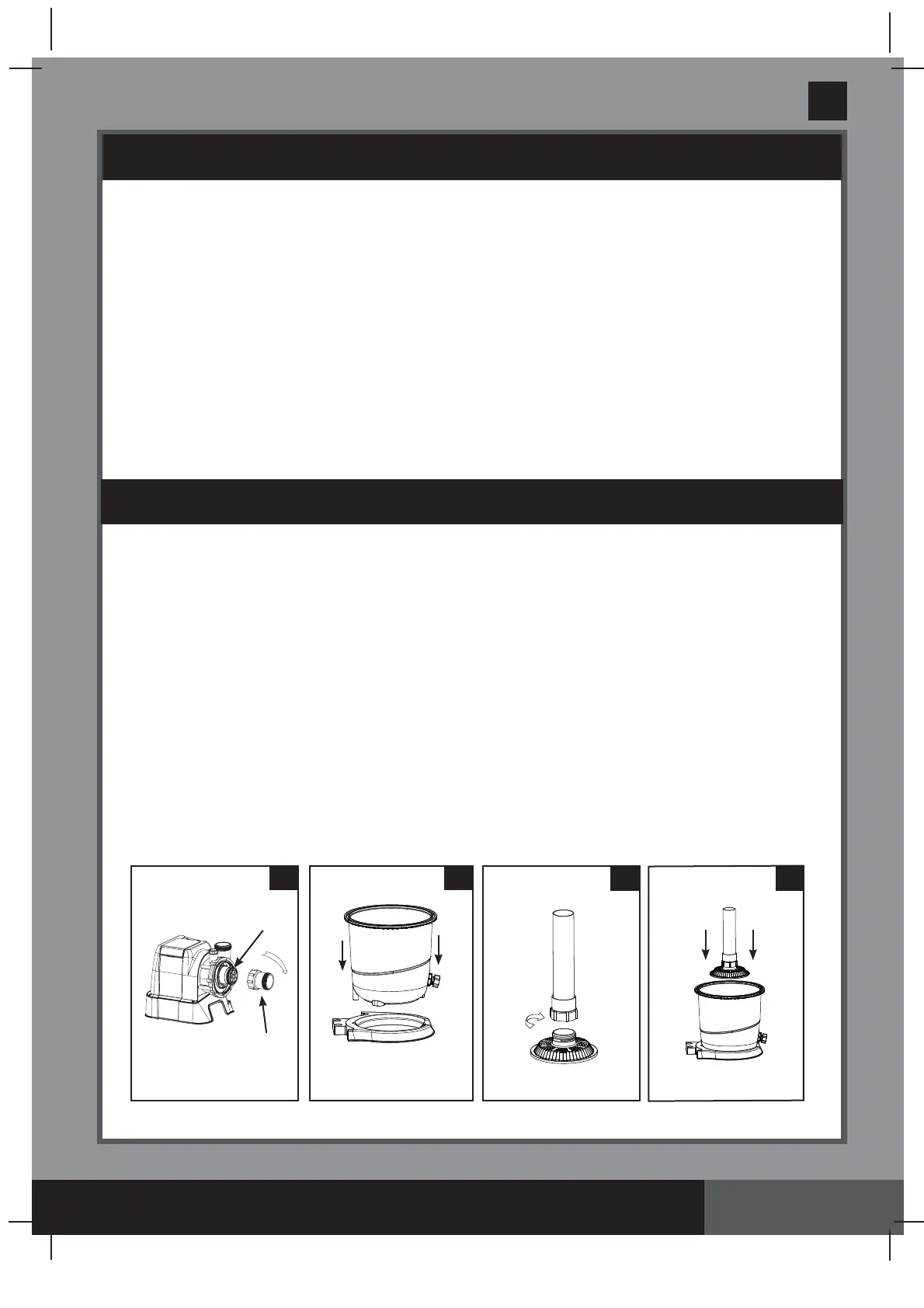

(see drawing 10)
.
Sand tank installation:
1.
Place the tank support base at the selected location.
2.
Place the tank on the tank support base
(see drawing 11.1)
.
Power: 220-240 Volt AC
Wattage: 190 W
Maximum working pressure: 1.4 bar (20 psi)
Effective filtering area: 0.05 m
2
(0.54 ft
2
)
Pump flow rate (at pump outlet): 5.7 m
3
/h (1500 GPH)
Recommended filtering media: No. 20 silica sand or glass sand. Particle size
(Not included) range 0.45 to 0.85 mm (0.018 to 0.033 inches).
Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: No. 20 silica sand 12 Kg (26 Lbs) or glass sand
8.5 Kg (18.5 Lbs).
Limited Warranty: see “Limited Warranty”
11.2
10
19
6
11.1
11.3
