(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
S AVE THESE INSTRUCTIONS
Page 4
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO. DESCRIPTION QTY. SPARE PARTS NO.
1 CLEANER TOP 1 13200
2 GEAR MODULE 1 13201
3 DEBRIS NET 1 13202
4 CLEANER BASE 1 13203
5 CAP SEAL O-RING 3 12861
6 MICRO-SCREEN 1 12860
7 PRESSURE RELEASE VALVE 1 13199
8 SWIVEL JOINT 1 13226
9 HOSE COLLAR NUT 2 12863
10 HOSE 1 12862G
11 HOSE ELBOW 1 13227
12 BRUSH SUPPORT 2 13136
13
BRUSH (WITH 2 EXTRA) 4 13135
14 INLET CONNECTOR ADAPTOR 1 12486

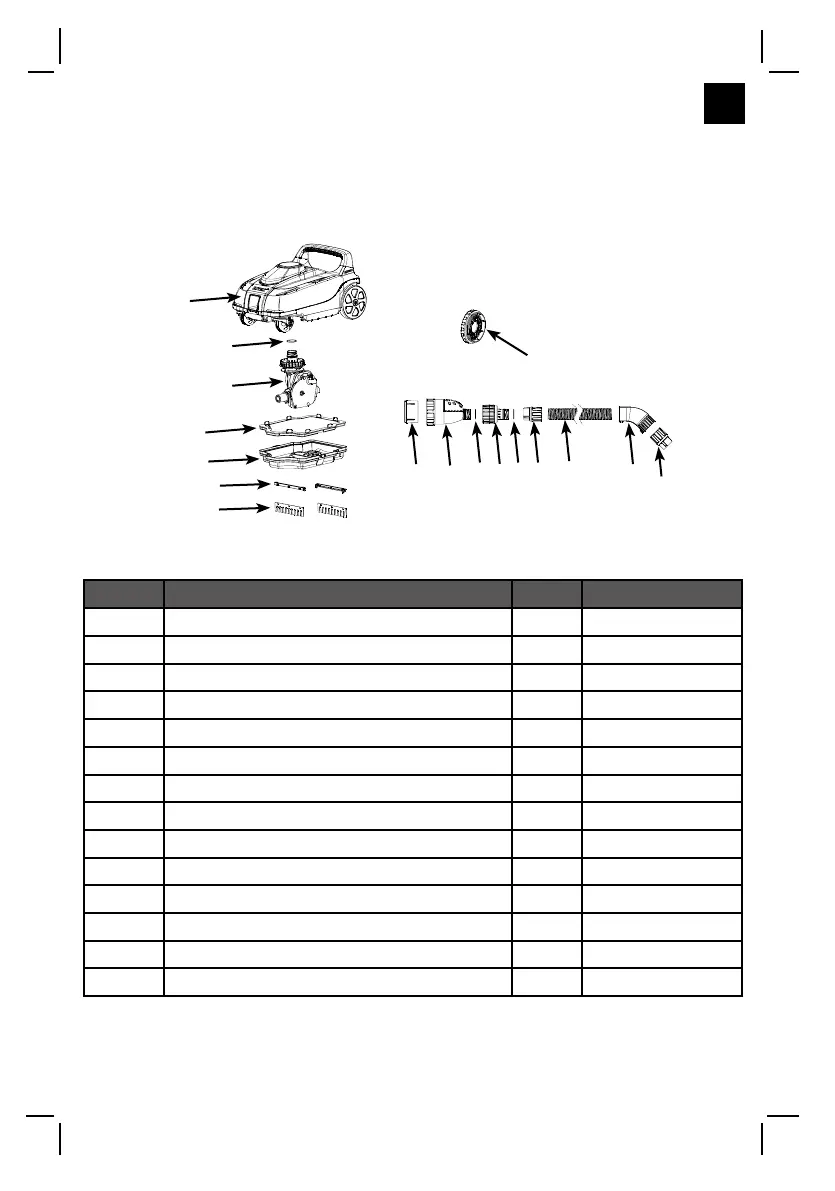

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the
contents and become familiar with all the parts.
1
5
2
3
4
12
13
8
9
6 5
7 11
9
10
5
14
