3Technicaldata
3.1 Product description
3.1.1 Structure and function
2
1.2
3
4
5
6
31
9
1
s
L
KL 14.0606/1

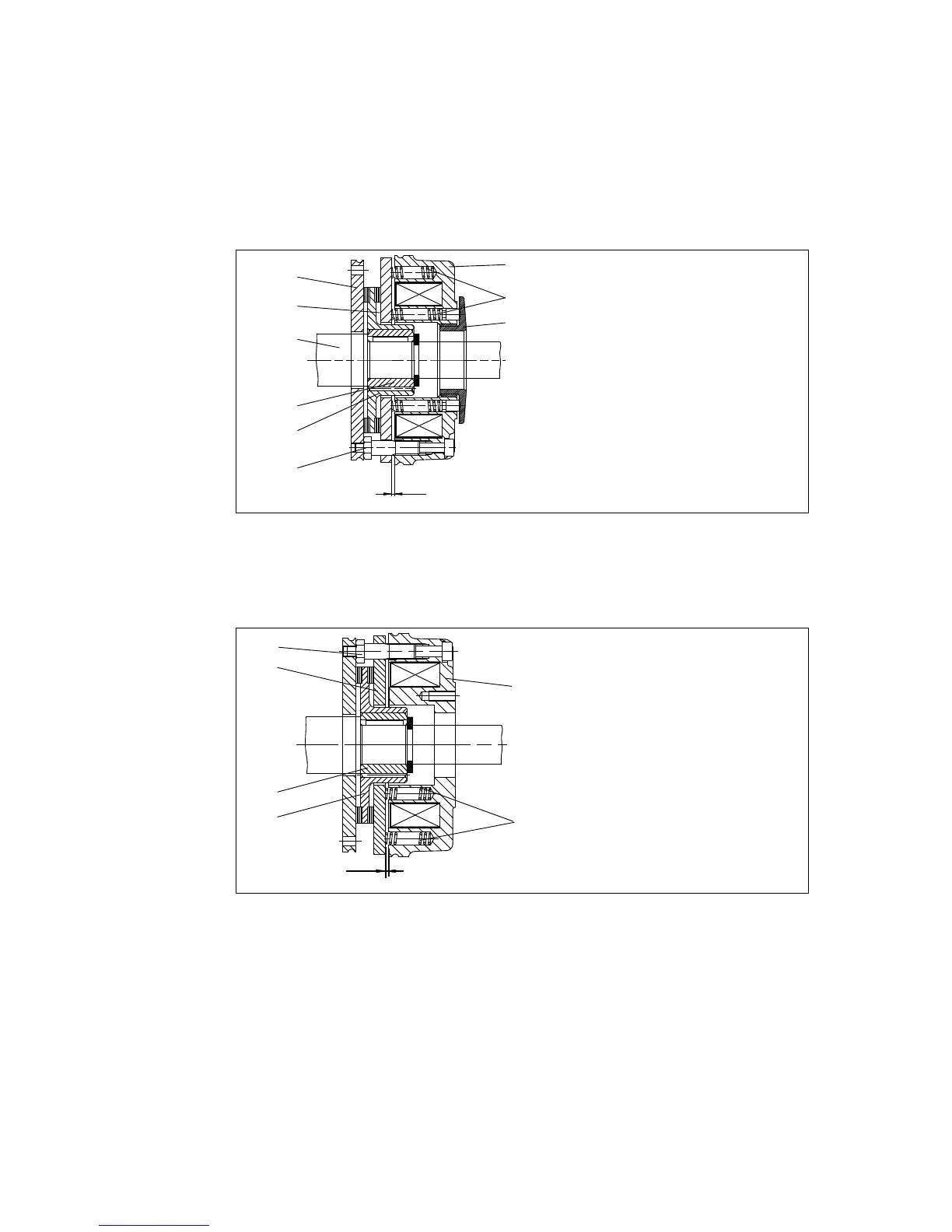

Fig. 1 Design of the spring-applied brake INTORQ BFK458: basic module E (complete stator) + rotor +
hub + flange
1 Complete stator 3 Rotor 6 Flange
1.2 Compression springs 4 Hub 9 Sleeve bolts
2 Armature plate 5 Shaft 31 Torque adjustment ring
s
L
Air gap
2
1.2
3
4
9
1
s
L
KL 14.0623
Fig. 2 Design of the spring-applied brake INTORQ BFK458: basic module N (complete stator) + rotor +
hub + flange
1 Complete stator 3 Rotor s
L
Air gap
1.2 Compression spring 4 Hub
2Armatureplate 9Sleevebolts
